引言
环境准备
openGauss_5.0.0 企业版
Navicat 16.0.11
openEuler-22.03-LTS-SP2
MobaXterm 22.1
服务器名称：node0，IP地址：192.168.192.129
openGauss服务设置
查看数据库启动状态

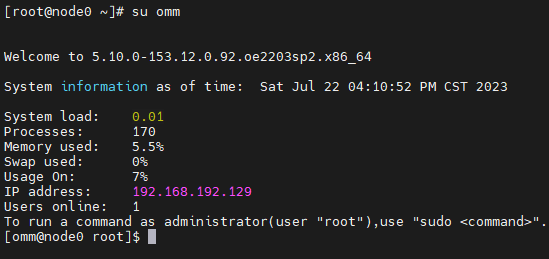

切换至omm用户
[root@node0 ~]# su omm
Welcome to 5.10.0-153.12.0.92.oe2203sp2.x86_64
System information as of time: Sat Jul 22 04:10:52 PM CST 2023
System load: 0.01
Processes: 170
Memory used: 5.5%
Swap used: 0%
Usage On: 7%
IP address: 192.168.192.129
Users online: 1
To run a command as administrator(user "root"),use "sudo <command>".
[omm@node0 root]$
查看数据库启动状态
[omm@node0 root]$ gs_om -t status --detail
[ Cluster State ]
cluster_state : Unavailable
redistributing : No
current_az : AZ_ALL
[ Datanode State ]
node node_ip port instance state
--------------------------------------------------------------------------------------------
1 node0 192.168.192.129 15400 6001 /opt/huawei/install/data/dn P Primary Manually stopped
启动openGauss
[omm@node0 root]$ gs_om -t start
Starting cluster.
=========================================
[SUCCESS] node0
2023-07-22 16:21:31.942 64bb918b.1 [unknown] 139874136903616 [unknown] 0 dn_6001 01000 0 [BACKEND] WARNING: could not create any HA TCP/IP sockets
2023-07-22 16:21:31.942 64bb918b.1 [unknown] 139874136903616 [unknown] 0 dn_6001 01000 0 [BACKEND] WARNING: could not create any HA TCP/IP sockets
2023-07-22 16:21:31.945 64bb918b.1 [unknown] 139874136903616 [unknown] 0 dn_6001 01000 0 [BACKEND] WARNING: Failed to initialize the memory protect for g_instance.attr.attr_storage.cstore_buffers (1024 Mbytes) or shared memory (3301 Mbytes) is larger.
=========================================
Successfully started.
# 停止openGauss
gs_om -t stop
修改pg_hba.conf文件
企业版所在目录：/opt/huawei/install/data/dn
[omm@node0 dn]$ pwd
/opt/huawei/install/data/dn
[omm@node0 dn]$
[omm@node0 dn]$ ll
total 5044
drwx------ 6 omm dbgrp 4096 Jul 20 23:49 base
-rw------- 1 omm dbgrp 4399 Jul 20 23:48 cacert.pem
-rw------- 1 omm dbgrp 72 Jul 22 16:21 gaussdb.state
drwx------ 3 omm dbgrp 4096 Jul 22 16:21 global
-rw------- 1 omm dbgrp 354 Jul 20 23:49 gs_gazelle.conf
-rw------- 1 omm dbgrp 4915200 Jul 20 23:49 gswlm_userinfo.cfg
-rw------- 1 omm dbgrp 21016 Jul 20 23:49 mot.conf
drwx------ 2 omm dbgrp 4096 Jul 20 23:49 pg_clog
drwx------ 2 omm dbgrp 4096 Jul 20 23:49 pg_csnlog
-rw------- 1 omm dbgrp 0 Jul 22 16:21 pg_ctl.lock
drwx------ 2 omm dbgrp 4096 Jul 20 23:49 pg_errorinfo
-rw------- 1 omm dbgrp 4611 Jul 21 23:05 pg_hba.conf
-rw------- 1 omm dbgrp 4587 Jul 20 23:49 pg_hba.conf.bak
-rw------- 1 omm dbgrp 1024 Jul 20 23:49 pg_hba.conf.lock
-rw------- 1 omm dbgrp 1636 Jul 20 23:49 pg_ident.conf
drwx------ 4 omm dbgrp 4096 Jul 20 23:49 pg_llog
drwx------ 2 omm dbgrp 4096 Jul 20 23:49 pg_location
drwx------ 2 omm dbgrp 4096 Jul 22 16:24 pg_logical
drwx------ 4 omm dbgrp 4096 Jul 20 23:49 pg_multixact
drwx------ 2 omm dbgrp 4096 Jul 22 16:21 pg_notify
drwx------ 2 omm dbgrp 4096 Jul 20 23:49 pg_replslot
drwx------ 2 omm dbgrp 4096 Jul 20 23:49 pg_serial
drwx------ 2 omm dbgrp 4096 Jul 20 23:49 pg_snapshots
drwx------ 2 omm dbgrp 4096 Jul 22 16:25 pg_stat_tmp
drwx------ 2 omm dbgrp 4096 Jul 20 23:49 pg_tblspc
drwx------ 2 omm dbgrp 4096 Jul 20 23:49 pg_twophase
-rw------- 1 omm dbgrp 4 Jul 20 23:49 PG_VERSION
drwx------ 3 omm dbgrp 4096 Jul 20 23:49 pg_xlog
-rw------- 1 omm dbgrp 36058 Jul 21 23:07 postgresql.conf
-rw------- 1 omm dbgrp 36083 Jul 20 23:49 postgresql.conf.guc.bak
-rw------- 1 omm dbgrp 1024 Jul 20 23:49 postgresql.conf.lock
-rw------- 1 omm dbgrp 71 Jul 22 16:21 postmaster.opts
-rw------- 1 omm dbgrp 88 Jul 22 16:21 postmaster.pid
-rw------- 1 omm dbgrp 0 Jul 20 23:49 postmaster.pid.lock
-rw------- 1 omm dbgrp 4402 Jul 20 23:48 server.crt
-rw------- 1 omm dbgrp 1766 Jul 20 23:48 server.key
-rw------- 1 omm dbgrp 56 Jul 20 23:48 server.key.cipher
-rw------- 1 omm dbgrp 24 Jul 20 23:48 server.key.rand
drwx------ 5 omm dbgrp 4096 Jul 20 23:49 undo
[omm@node0 dn]$
[omm@node0 dn]$ vi pg_hba.conf
增加需要访问计算机的IP地址
对所有IP地址进行开放：0.0.0.0/0
修改trust替换成md5加密方式
# PostgreSQL Client Authentication Configuration File
# ===================================================
#
# Refer to the "Client Authentication" section in the PostgreSQL
# documentation for a complete description of this file. A short
# synopsis follows.
......
# TYPE DATABASE USER ADDRESS METHOD
# "local" is for Unix domain socket connections only
local all all trust
host all omm 192.168.192.129/32 trust
# IPv4 local connections:
host all all 127.0.0.1/32 trust
host all all 192.168.192.129/32 md5
host all all 0.0.0.0/0 md5
# IPv6 local connections:
host all all ::1/128 trust
......
输入 :wq! 退出

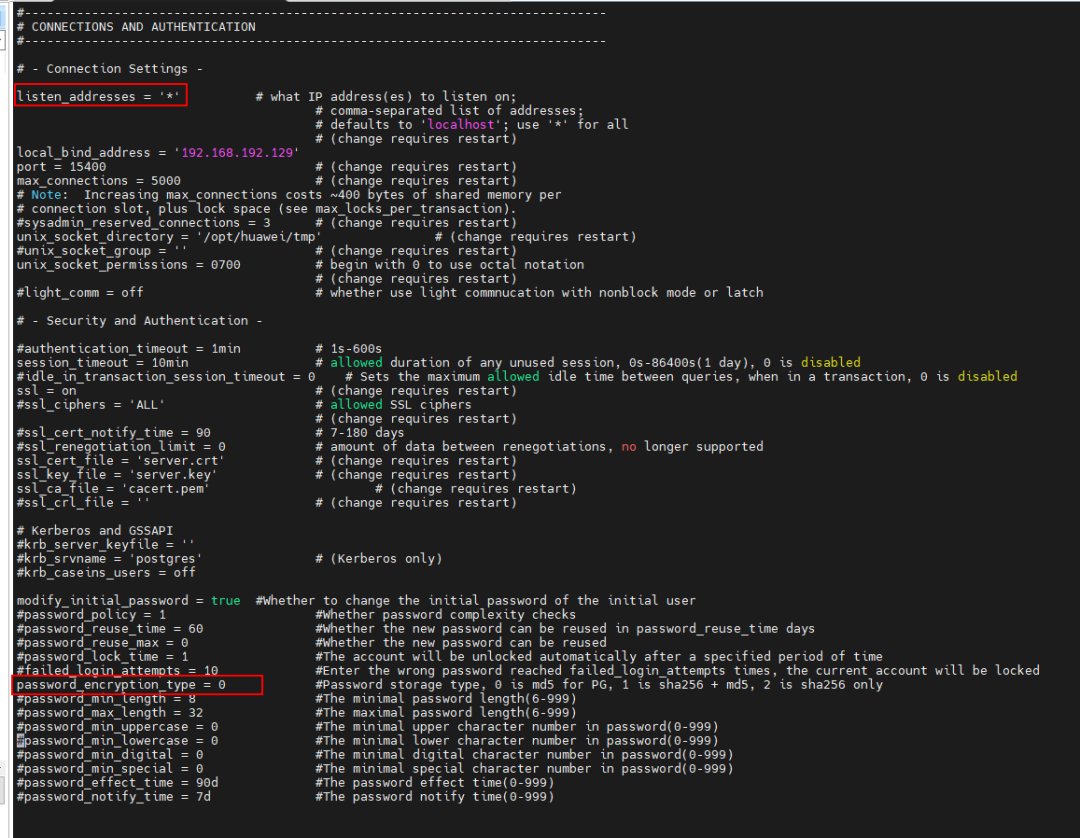

修改postgresql.conf文件
修改监听地址和加密方式
[omm@node0 dn]$ vi postgresql.conf
# -----------------------------------------------------------------------------
#
# postgresql_single.conf.sample
# Configuration file for centralized environment
#
# Portions Copyright (c) 1996-2012, PostgreSQL Global Development Group
......
listen_addresses = '*' # what IP address(es) to listen on;
# comma-separated list of addresses;
# defaults to 'localhost'; use '*' for all
# (change requires restart)
local_bind_address = '192.168.192.129'
port = 15400 # (change requires restart)
max_connections = 5000 # (change requires restart)
......
#failed_login_attempts = 10 #Enter the wrong password reached failed_login_attempts times, the current account will be locked
password_encryption_type = 0 #Password storage type, 0 is md5 for PG, 1 is sha256 + md5, 2 is sha256 only
#password_min_length = 8 #The minimal password length(6-999)
#password_max_length = 32 #The maximal password length(6-999)
#password_min_uppercase = 0 #The minimal upper character number in password(0-999)
#password_min_lowercase = 0 #The minimal lower character number in password(0-999)
#password_min_digital = 0 #The minimal digital character number in password(0-999)
#password_min_special = 0 #The minimal special character number in password(0-999)
#password_effect_time = 90d #The password effect time(0-999)
#password_notify_time = 7d #The password notify time(0-999)
......

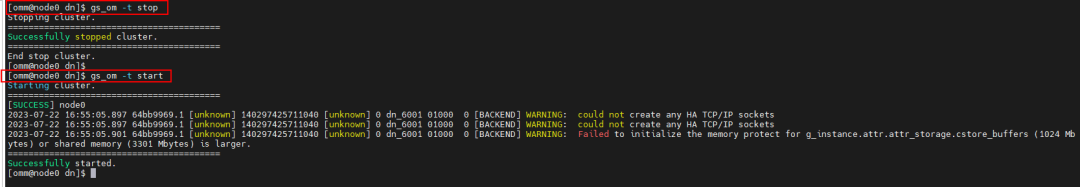

重启服务
[omm@node0 dn]$ gs_om -t stop
Stopping cluster.
=========================================
Successfully stopped cluster.
=========================================
End stop cluster.
[omm@node0 dn]$
[omm@node0 dn]$ gs_om -t start
Starting cluster.
=========================================
[SUCCESS] node0
2023-07-22 16:55:05.897 64bb9969.1 [unknown] 140297425711040 [unknown] 0 dn_6001 01000 0 [BACKEND] WARNING: could not create any HA TCP/IP sockets
2023-07-22 16:55:05.897 64bb9969.1 [unknown] 140297425711040 [unknown] 0 dn_6001 01000 0 [BACKEND] WARNING: could not create any HA TCP/IP sockets
2023-07-22 16:55:05.901 64bb9969.1 [unknown] 140297425711040 [unknown] 0 dn_6001 01000 0 [BACKEND] WARNING: Failed to initialize the memory protect for g_instance.attr.attr_storage.cstore_buffers (1024 Mbytes) or shared memory (3301 Mbytes) is larger.
=========================================
Successfully started.

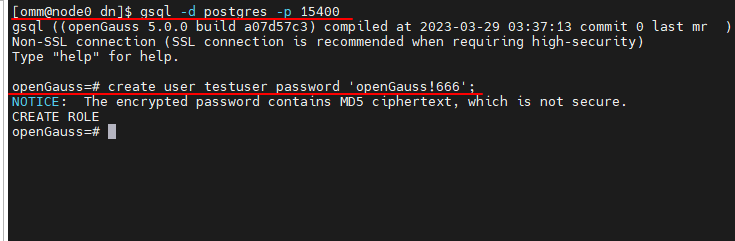

创建远程连接角色
[omm@node0 dn]$ gsql -d postgres -p 15400
gsql ((openGauss 5.0.0 build a07d57c3) compiled at 2023-03-29 03:37:13 commit 0 last mr )
Non-SSL connection (SSL connection is recommended when requiring high-security)
Type "help" for help.
openGauss=# create user testuser password 'openGauss!666';
NOTICE: The encrypted password contains MD5 ciphertext, which is not secure.
CREATE ROLE
防火墙开放端口
防火墙为未启动状态，略过此步骤；
# 查看firewalld状态
systemctl status firewalld
# 把端口加入防火墙
firewall-cmd --zone=public --add-port=15400/tcp --permanent
# 重新加载防火墙
systemctl reload firewalld
Navicat连接

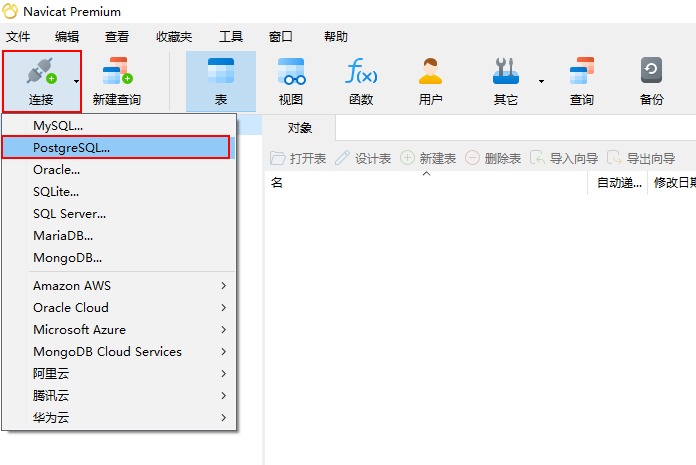

打开Navicat，新建PostgreSQL连接方式；

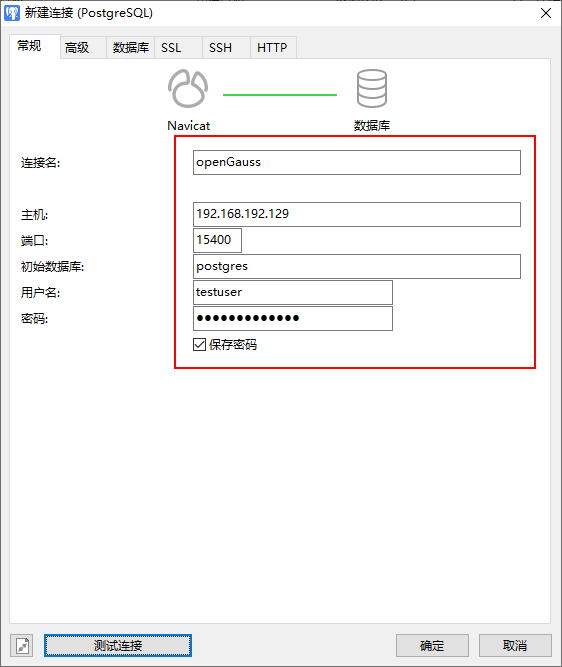

在“新建连接(PostgreSQL)”窗口中，输入连接名、主机IP地址、端口号、用户名、密码等参数
端口号默认为5432，根据实际情况动态调整；
点击“测试连接”按钮，提示连接成功，完成Navicat连接openGauss数据库；
问题
fatal:forbid remote connection with initial user
在连接openGauss数据库时，提示：Forbid remote connection with initial user，意思是禁止用初始用户进行远程连接，即不要使用数据库默认的omm用户访问。
总结
附录
记录在openEuler-22.03中安装openGauss_5.0.0企业版
在VMware 17.0.2虚拟机中安装openEuler-22.03-LTS-SP2：https://www.modb.pro/db/1682365146923606016
