对于一款新的BSP如何添加SPI驱动

edma_config_t userConfig = {0};EDMA_GetDefaultConfig(&userConfig);EDMA_Init(DMA0, &userConfig);pin_mux.c

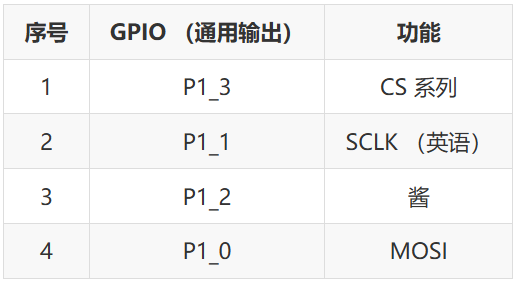

#ifdef BSP_USING_SPI0    RESET_ReleasePeripheralReset(kLPSPI0_RST_SHIFT_RSTn);    const port_pin_config_t port1_0_pin56_config = {/* Internal pull-up/down resistor is disabled */                                                    kPORT_PullDisable,                                                    /* Low internal pull resistor value is selected. */                                                    kPORT_LowPullResistor,                                                    /* Fast slew rate is configured */                                                    kPORT_FastSlewRate,                                                    /* Passive input filter is disabled */                                                    kPORT_PassiveFilterDisable,                                                    /* Open drain output is disabled */                                                    kPORT_OpenDrainDisable,                                                    /* Low drive strength is configured */                                                    kPORT_LowDriveStrength,                                                    /* Normal drive strength is configured */                                                    kPORT_NormalDriveStrength,                                                    /* Pin is configured as LPSPI0_SDO */                                                    kPORT_MuxAlt2,                                                    /* Digital input enabled */                                                    kPORT_InputBufferEnable,                                                    /* Digital input is not inverted */                                                    kPORT_InputNormal,                                                    /* Pin Control Register fields [15:0] are not locked */                                                    kPORT_UnlockRegister};    /* PORT1_0 (pin 56) is configured as LPSPI0_SDO */    PORT_SetPinConfig(PORT1, 0U, &port1_0_pin56_config);    const port_pin_config_t port1_1_pin57_config = {/* Internal pull-up/down resistor is disabled */                                                    kPORT_PullDisable,                                                    /* Low internal pull resistor value is selected. */                                                    kPORT_LowPullResistor,                                                    /* Fast slew rate is configured */                                                    kPORT_FastSlewRate,                                                    /* Passive input filter is disabled */                                                    kPORT_PassiveFilterDisable,                                                    /* Open drain output is disabled */                                                    kPORT_OpenDrainDisable,                                                    /* Low drive strength is configured */                                                    kPORT_LowDriveStrength,                                                    /* Normal drive strength is configured */                                                    kPORT_NormalDriveStrength,                                                    /* Pin is configured as LPSPI0_SCK */                                                    kPORT_MuxAlt2,                                                    /* Digital input enabled */                                                    kPORT_InputBufferEnable,                                                    /* Digital input is not inverted */                                                    kPORT_InputNormal,                                                    /* Pin Control Register fields [15:0] are not locked */                                                    kPORT_UnlockRegister};    /* PORT1_1 (pin 57) is configured as LPSPI0_SCK */    PORT_SetPinConfig(PORT1, 1U, &port1_1_pin57_config);    const port_pin_config_t port1_2_pin58_config = {/* Internal pull-up/down resistor is disabled */                                                    kPORT_PullDisable,                                                    /* Low internal pull resistor value is selected. */                                                    kPORT_LowPullResistor,                                                    /* Fast slew rate is configured */                                                    kPORT_FastSlewRate,                                                    /* Passive input filter is disabled */                                                    kPORT_PassiveFilterDisable,                                                    /* Open drain output is disabled */                                                    kPORT_OpenDrainDisable,                                                    /* Low drive strength is configured */                                                    kPORT_LowDriveStrength,                                                    /* Normal drive strength is configured */                                                    kPORT_NormalDriveStrength,                                                    /* Pin is configured as LPSPI0_SDI */                                                    kPORT_MuxAlt2,                                                    /* Digital input enabled */                                                    kPORT_InputBufferEnable,                                                    /* Digital input is not inverted */                                                    kPORT_InputNormal,                                                    /* Pin Control Register fields [15:0] are not locked */                                                    kPORT_UnlockRegister};    /* PORT1_2 (pin 58) is configured as LPSPI0_SDI */    PORT_SetPinConfig(PORT1, 2U, &port1_2_pin58_config);    const port_pin_config_t port1_3_pin59_config = {/* Internal pull-up/down resistor is disabled */                                                    kPORT_PullDisable,                                                    /* Low internal pull resistor value is selected. */                                                    kPORT_LowPullResistor,                                                    /* Fast slew rate is configured */                                                    kPORT_FastSlewRate,                                                    /* Passive input filter is disabled */                                                    kPORT_PassiveFilterDisable,                                                    /* Open drain output is disabled */                                                    kPORT_OpenDrainDisable,                                                    /* Low drive strength is configured */                                                    kPORT_LowDriveStrength,                                                    /* Normal drive strength is configured */                                                    kPORT_NormalDriveStrength,                                                    /* Pin is configured as LPSPI0_PCS0 */                                                    kPORT_MuxAlt2,                                                    /* Digital input enabled */                                                    kPORT_InputBufferEnable,                                                    /* Digital input is not inverted */                                                    kPORT_InputNormal,                                                    /* Pin Control Register fields [15:0] are not locked */                                                    kPORT_UnlockRegister};    /* PORT1_3 (pin 59) is configured as LPSPI0_PCS0 */    PORT_SetPinConfig(PORT1, 3U, &port1_3_pin59_config);#endif

menuconfig BSP_USING_SPI    config BSP_USING_SPI        bool "Enable SPI"        select RT_USING_SPI        default y    if BSP_USING_SPI        config BSP_USING_SPI0            bool "Enable SPI0"            default     endif

/* * Copyright (c) 2006-2024, RT-Thread Development Team * * SPDX-License-Identifier: Apache-2.0 * * Change Logs: * Date           Author       Notes * 2024-08-3      hywing       The first version for MCXA */#include "rtdevice.h"#include "drv_spi.h"#include "fsl_common.h"#include "fsl_lpspi.h"#include "fsl_lpspi_edma.h"#define DMA_MAX_TRANSFER_COUNT (32767)enum{#ifdef BSP_USING_SPI0    SPI1_INDEX,#endif};struct lpc_spi{    struct rt_spi_bus           parent;    LPSPI_Type                  *LPSPIx;    clock_attach_id_t           clock_attach_id;    clock_div_name_t            clock_div_name;    clock_name_t                clock_name;    DMA_Type                    *DMAx;    uint8_t                     tx_dma_chl;    uint8_t                     rx_dma_chl;    edma_handle_t               dma_tx_handle;    edma_handle_t               dma_rx_handle;    dma_request_source_t        tx_dma_request;    dma_request_source_t        rx_dma_request;    lpspi_master_edma_handle_t  spi_dma_handle;    rt_sem_t                    sem;    char                        *name;};static struct lpc_spi lpc_obj[] ={#ifdef BSP_USING_SPI0    {        .LPSPIx = LPSPI0,        .clock_attach_id = kFRO12M_to_LPSPI0,        .clock_div_name = kCLOCK_DivLPSPI0,        .clock_name = kCLOCK_Fro12M,        .tx_dma_request = kDma0RequestLPSPI0Tx,        .rx_dma_request = kDma0RequestLPSPI0Rx,        .DMAx = DMA0,        .tx_dma_chl = 0,        .rx_dma_chl = 1,        .name = "spi0",    },#endif};struct lpc_sw_spi_cs{    rt_uint32_t pin;};rt_err_t rt_hw_spi_device_attach(const char *bus_name, const char *device_name, rt_uint32_t pin){    rt_err_t ret = RT_EOK;    struct rt_spi_device *spi_device = (struct rt_spi_device *)rt_malloc(sizeof(struct rt_spi_device));    struct lpc_sw_spi_cs *cs_pin = (struct lpc_sw_spi_cs *)rt_malloc(sizeof(struct lpc_sw_spi_cs));    cs_pin->pin = pin;    rt_pin_mode(pin, PIN_MODE_OUTPUT);    rt_pin_write(pin, PIN_HIGH);    ret = rt_spi_bus_attach_device(spi_device, device_name, bus_name, (void *)cs_pin);    return ret;}static rt_err_t spi_configure(struct rt_spi_device *device, struct rt_spi_configuration *cfg){    rt_err_t ret = RT_EOK;//    struct lpc_spi *spi = RT_NULL;//    spi = (struct lpc_spi *)(device->bus->parent.user_data);//    ret = lpc_spi_init(spi->SPIx, cfg);    return ret;}static void LPSPI_MasterUserCallback(LPSPI_Type *base, lpspi_master_edma_handle_t *handle, status_t status, void *userData){    struct lpc_spi *spi = (struct lpc_spi *)userData;    rt_sem_release(spi->sem);}static rt_ssize_t spixfer(struct rt_spi_device *device, struct rt_spi_message *message){    int i;    lpspi_transfer_t transfer = {0};    RT_ASSERT(device != RT_NULL);    RT_ASSERT(device->bus != RT_NULL);    RT_ASSERT(device->bus->parent.user_data != RT_NULL);    struct lpc_spi *spi = (struct lpc_spi *)(device->bus->parent.user_data);    struct lpc_sw_spi_cs *cs = device->parent.user_data;    if (message->cs_take)    {        rt_pin_write(cs->pin, PIN_LOW);    }    transfer.dataSize = message->length;    transfer.rxData   = (uint8_t *)(message->recv_buf);    transfer.txData   = (uint8_t *)(message->send_buf);    //  if(message->length < MAX_DMA_TRANSFER_SIZE)    if (0)    {        LPSPI_MasterTransferBlocking(spi->LPSPIx, &transfer);    }    else    {        uint32_t block, remain;        block = message->length / DMA_MAX_TRANSFER_COUNT;        remain = message->length % DMA_MAX_TRANSFER_COUNT;        for (i = 0; i < block; i++)        {            transfer.dataSize = DMA_MAX_TRANSFER_COUNT;            if (message->recv_buf) transfer.rxData   = (uint8_t *)(message->recv_buf + i * DMA_MAX_TRANSFER_COUNT);            if (message->send_buf) transfer.txData   = (uint8_t *)(message->send_buf + i * DMA_MAX_TRANSFER_COUNT);            LPSPI_MasterTransferEDMA(spi->LPSPIx, &spi->spi_dma_handle, &transfer);            rt_sem_take(spi->sem, RT_WAITING_FOREVER);        }        if (remain)        {            transfer.dataSize = remain;            if (message->recv_buf) transfer.rxData   = (uint8_t *)(message->recv_buf + i * DMA_MAX_TRANSFER_COUNT);            if (message->send_buf) transfer.txData   = (uint8_t *)(message->send_buf + i * DMA_MAX_TRANSFER_COUNT);            LPSPI_MasterTransferEDMA(spi->LPSPIx, &spi->spi_dma_handle, &transfer);            rt_sem_take(spi->sem, RT_WAITING_FOREVER);        }    }    if (message->cs_release)    {        rt_pin_write(cs->pin, PIN_HIGH);    }    return message->length;}static struct rt_spi_ops lpc_spi_ops ={    .configure = spi_configure,    .xfer      = spixfer};int rt_hw_spi_init(void){    int i;    for (i = 0; i < ARRAY_SIZE(lpc_obj); i++)    {        CLOCK_SetClockDiv(lpc_obj[i].clock_div_name, 1u);        CLOCK_AttachClk(lpc_obj[i].clock_attach_id);        lpc_obj[i].parent.parent.user_data = &lpc_obj[i];        lpc_obj[i].sem = rt_sem_create("sem_spi", 0, RT_IPC_FLAG_FIFO);        lpspi_master_config_t masterConfig;        LPSPI_MasterGetDefaultConfig(&masterConfig);        masterConfig.baudRate = 12 * 1000 * 1000;        masterConfig.pcsToSckDelayInNanoSec        = 1000000000U / masterConfig.baudRate * 1U;        masterConfig.lastSckToPcsDelayInNanoSec    = 1000000000U / masterConfig.baudRate * 1U;        masterConfig.betweenTransferDelayInNanoSec = 1000000000U / masterConfig.baudRate * 1U;        LPSPI_MasterInit(lpc_obj[i].LPSPIx, &masterConfig, CLOCK_GetFreq(lpc_obj[i].clock_name));        EDMA_CreateHandle(&lpc_obj[i].dma_tx_handle, lpc_obj[i].DMAx, lpc_obj[i].tx_dma_chl);        EDMA_CreateHandle(&lpc_obj[i].dma_rx_handle, lpc_obj[i].DMAx, lpc_obj[i].rx_dma_chl);        EDMA_SetChannelMux(lpc_obj[i].DMAx, lpc_obj[i].tx_dma_chl, lpc_obj[i].tx_dma_request);        EDMA_SetChannelMux(lpc_obj[i].DMAx, lpc_obj[i].rx_dma_chl, lpc_obj[i].rx_dma_request);        LPSPI_MasterTransferCreateHandleEDMA(lpc_obj[i].LPSPIx, &lpc_obj[i].spi_dma_handle, LPSPI_MasterUserCallback, &lpc_obj[i], &lpc_obj[i].dma_rx_handle, &lpc_obj[i].dma_tx_handle);        rt_spi_bus_register(&lpc_obj[i].parent, lpc_obj[i].name, &lpc_spi_ops);    }    return RT_EOK;}INIT_DEVICE_EXPORT(rt_hw_spi_init);

if GetDepend('BSP_USING_SPI'):    src += ['MCXA153/drivers/fsl_lpspi.c']    src += ['MCXA153/drivers/fsl_lpspi_edma.c']

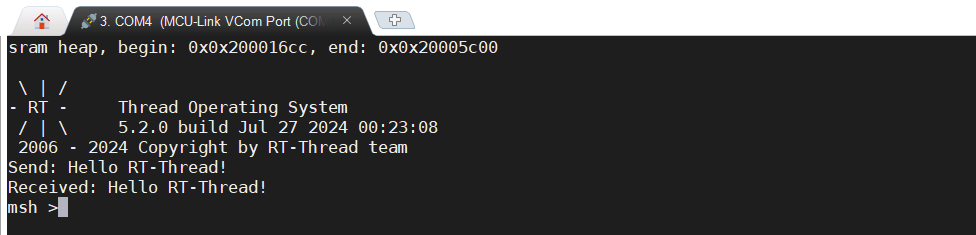

#include <rtthread.h>  #include "rtdevice.h" #include "drv_spi.h"#define SPI_BUS_NAME "spi0" #define SPI_DEV_NAME "spi00" static struct rt_spi_device *spi_device;static void spi_sample(void)  {          rt_err_t result;          struct rt_spi_configuration cfg;        uint8_t tx_buf[] = "Hello RT-Thread!";          uint8_t rx_buf[sizeof(tx_buf)];      rt_base_t cs = 1*32+3;        rt_hw_spi_device_attach(SPI_BUS_NAME, SPI_DEV_NAME, cs);    /* »ñÈ¡SPIÉ豸 */    spi_device = (struct rt_spi_device *)rt_device_find(SPI_DEV_NAME);    if (!spi_device)    {        rt_kprintf("can't find %s device!\n", SPI_BUS_NAME);    }    /* ÅäÖÃSPIÉ豸 */    cfg.data_width = 8;    cfg.mode = RT_SPI_MASTER | RT_SPI_MODE_0 | RT_SPI_MSB;    cfg.max_hz = 12* 1000 * 1000;    /* ÉèÖÃSPIÉ豸 */    rt_spi_configure(spi_device, &cfg);        result = rt_spi_transfer(spi_device, tx_buf, rx_buf, sizeof(tx_buf));          if (result == sizeof(tx_buf))          {                  rt_kprintf("Send: %s\n", tx_buf);                  rt_kprintf("Received: %s\n", rx_buf);          }          else          {                  rt_kprintf("spi transfer failed! error code: %d\n", result);          }       }  int main(void)  {          spi_sample();          return 0;  }
