一键制作镜像并发布到k8s

2019/04/10 10:10
阅读数 20



Antdeploy是我开发的一款开源一键部署工具,支持将.net应用(支持netcore)一键部署到远程服务器,并支持以下3种部署方案

  • 支持docker一键部署(支持netcore)
  • 支持iis一键部署(支持netcore和framework)
  • 支持windows服务一键部署(支持netcore和framework)
  • (支持增量发布)(支持一键回滚)(支持点火)(支持选择特定文件发布)(支持查看发布记录)
  • 支持脱离Visual Studio独立使用(跨平台支持windows系统和mac系统)

github开源源代码地址

插件下载地址

最近我在研究k8s,最近新增了关于k8s的功能目的是将AntDeploy应用到k8s的应用一键部署上面

配合k8s的新需求点

  1. 如何将本地应用一键打包成docker镜像并上传到镜像仓库
  2. 有了镜像后如何在k8s进行快速部署
  3. 如何利用AntDeploy一键完成上面2步骤!

本篇介绍 如何一键打包成docker镜像并上传到镜像仓库

本篇演示环境:

  1. vs2019 并且安装了 AntDeploy插件
  2. 本地有一个虚拟机centos7 并且 安装了docker

本篇应用目标:

  1. 创建一个 netcore web应用
  2. 一键部署镜像并上传到阿里云的镜像仓库
  3. 在k8s的dashbord上deploy应用

创建一个netcore web应用


项目名称取名: testimage


选择模板: Web应用程序


创建完成 如下图:

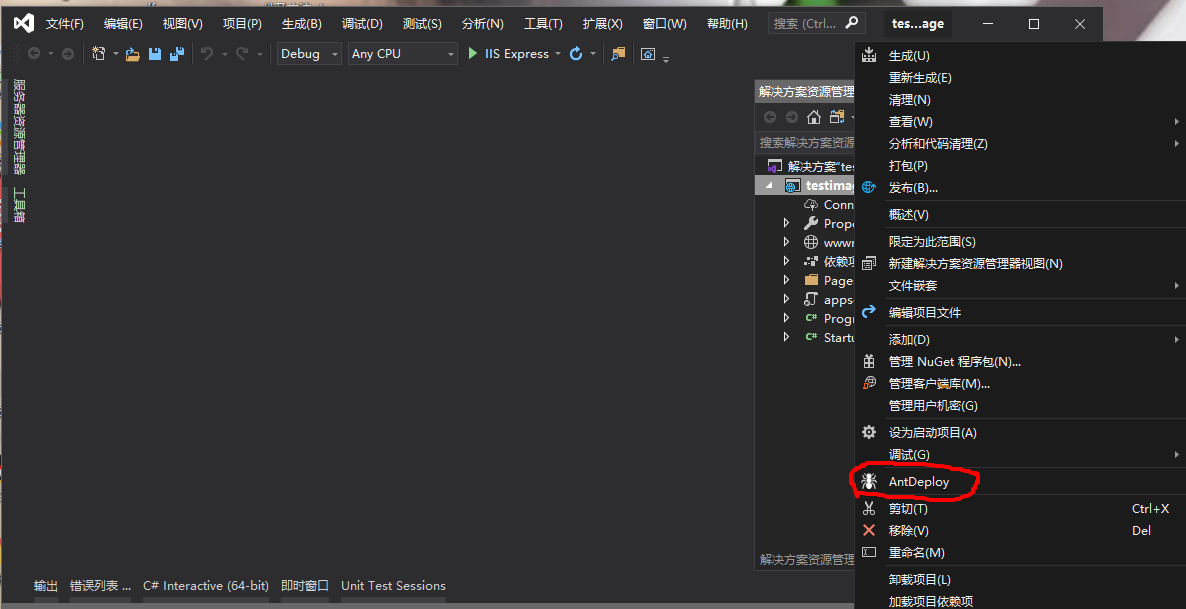

安装了AntDeploy插件后 点击右键 找到 AntDeploy


点击 AntDeploy 出现


配置AntDeploy【只需要首次配置】

点击发布配置


AntDeploy的配置说明:一个环境对应多台服务器

创建1个环境 取名叫 test 点击 添加环境按钮


然后在 test 环境下 添加linux服务器


选择 Docker发布, 选择我们刚刚创建的环境 test

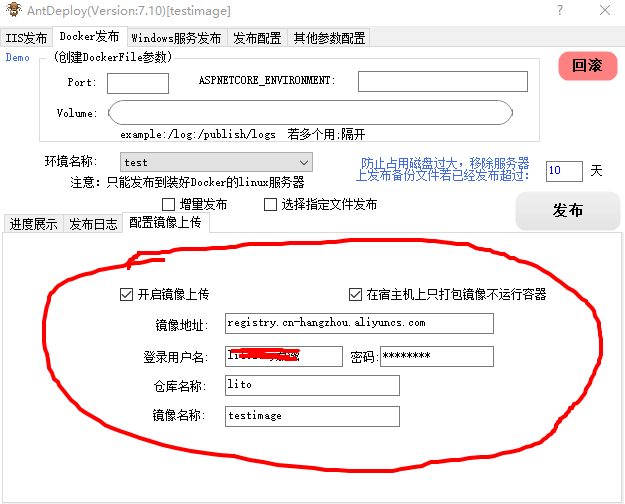

选择 配置镜像上传 填写阿里云容器镜像服务的参数



因为我们是测试,没有在项目里面添加Dockerfile 那么AntDeploy会创建默认的Dockfile 默认的Dockefile内容会在 发布日志里面进行展示

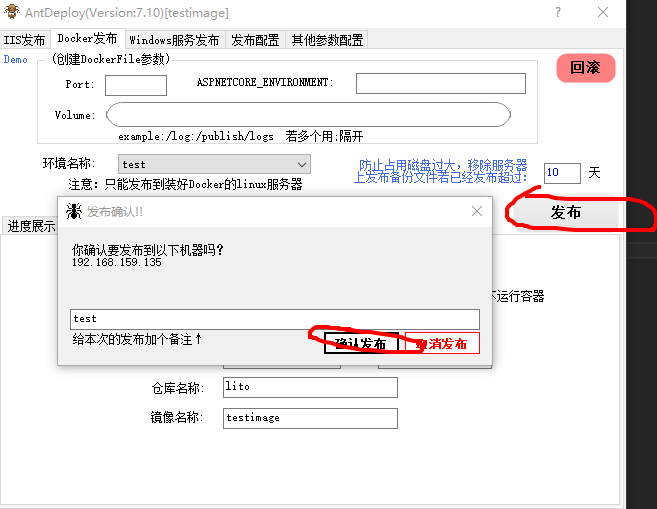

点击 发布进行一键制作 docker image 并且上传到阿里镜像仓库


完成进度展示:


发布日志非常详细:

11:54:11|INFO|The Porject ENTRYPOINT name:testimage.dll,DotNetSDK.Version:2.2
11:54:11|INFO|-----------------Start publish[Ver:7.10]-----------------
11:54:11|INFO|Visual Studio Version : 16.0
11:54:11|INFO|CurrentProjectFolder:  file://C:\Users\Administrator\source\repos\testimage\testimage#link4
11:54:11|INFO|current project Path:C:\Users\Administrator\source\repos\testimage\testimage\testimage.csproj
11:54:11|INFO|dotnet publish "C:\Users\Administrator\source\repos\testimage\testimage\testimage.csproj" -c Release -o "C:\Users\Administrator\source\repos\testimage\testimage\bin\Release\deploy_docker\test\"
11:54:12|INFO|版权所有(C) Microsoft Corporation。保留所有权利。
11:54:12|INFO|  C:\Users\Administrator\source\repos\testimage\testimage\testimage.csproj 的还原在 44.05 ms 内完成。
11:54:12|INFO|  C:\Users\Administrator\source\repos\testimage\testimage\testimage.csproj 的还原在 44.05 ms 内完成。
11:54:15|INFO|  testimage -> C:\Users\Administrator\source\repos\testimage\testimage\bin\Release\netcoreapp2.2\testimage.dll
11:54:15|INFO|  testimage -> C:\Users\Administrator\source\repos\testimage\testimage\bin\Release\netcoreapp2.2\testimage.Views.dll
11:54:15|INFO|  testimage -> C:\Users\Administrator\source\repos\testimage\testimage\bin\Release\netcoreapp2.2\testimage.Views.dll
11:54:15|INFO|  testimage -> C:\Users\Administrator\source\repos\testimage\testimage\bin\Release\deploy_docker\test\
11:54:16|INFO|  testimage -> C:\Users\Administrator\source\repos\testimage\testimage\bin\Release\deploy_docker\test\
11:54:16|INFO|publish success  ==>   file://C:\Users\Administrator\source\repos\testimage\testimage\bin\Release\deploy_docker\test#link15
11:54:16|INFO|-----------------Start package-----------------
11:54:16|INFO|package ignoreList Count:0
11:54:16|INFO|package success,package size:<1M
11:54:16|INFO|-----------------Deploy Start-----------------
11:54:16|INFO|Serverssh connecting 192.168.159.135...
11:54:26|INFO|ServerConnected to root@192.168.159.135:22 via SSH
11:54:26|INFO|ServerChanged directory to antdeploy/testimage/20200308115416/
11:54:26|INFO|Serveruploaded 100 %
11:54:27|INFO|Serverunzip -o -q antdeploy/testimage/20200308115416/publish.zip -d publish/
11:54:27|INFO|Serverunzip success: antdeploy/testimage/20200308115416/publish/
11:54:27|INFO|ServerdockerFile not found in: [antdeploy/testimage/20200308115416/publish/Dockerfile],will create default Dockerfile!
11:54:27|INFO|Servercreate docker file: antdeploy/testimage/20200308115416/publish/Dockerfile
11:54:27|INFO|ServerFROM mcr.microsoft.com/dotnet/core/aspnet:2.2
11:54:27|INFO|ServerCOPY . /publish
11:54:27|INFO|ServerWORKDIR /publish
11:54:27|INFO|ServerENV ASPNETCORE_URLS=http://*:5000
11:54:27|INFO|ServerEXPOSE 5000
11:54:27|INFO|ServerENTRYPOINT ["dotnet", "testimage.dll"]
11:54:27|INFO|Servercreate docker file success: antdeploy/testimage/20200308115416/publish/Dockerfile
11:54:27|INFO|ServerStart Copy Files From [antdeploy/testimage/20200308115416/publish/] To [antdeploy/testimage/deploy/]
11:54:27|INFO|ServerSuccess Copy Files From [antdeploy/testimage/20200308115416/publish/] To [antdeploy/testimage/deploy/]
11:54:27|INFO|ServerChanged directory to antdeploy/testimage/deploy/
11:54:27|INFO|Serverdocker build --no-cache --rm -t testimage:20200308115416 -f antdeploy/testimage/deploy/Dockerfile antdeploy/testimage/deploy/
11:54:27|INFO|ServerSending build context to Docker daemon  4.688MB
11:54:27|INFO|ServerStep 1/6 : FROM mcr.microsoft.com/dotnet/core/aspnet:2.2
11:54:27|INFO|Server ---> e7e3b238011c
11:54:27|INFO|ServerStep 2/6 : COPY . /publish
11:54:27|INFO|Server ---> 77f1a71e747e
11:54:27|INFO|ServerStep 3/6 : WORKDIR /publish
11:54:27|INFO|Server ---> Running in 0488ac2f9d34
11:54:27|INFO|ServerRemoving intermediate container 0488ac2f9d34
11:54:27|INFO|Server ---> 52cace207336
11:54:27|INFO|ServerStep 4/6 : ENV ASPNETCORE_URLS=http://*:5000
11:54:27|INFO|Server ---> Running in 6002963328d2
11:54:28|INFO|ServerRemoving intermediate container 6002963328d2
11:54:28|INFO|Server ---> 30ef31b36b85
11:54:28|INFO|ServerStep 5/6 : EXPOSE 5000
11:54:28|INFO|Server ---> Running in 76a1ba895e97
11:54:28|INFO|ServerRemoving intermediate container 76a1ba895e97
11:54:28|INFO|Server ---> a0be298ccf70
11:54:28|INFO|ServerStep 6/6 : ENTRYPOINT ["dotnet", "testimage.dll"]
11:54:28|INFO|Server ---> Running in c81d0ec0a693
11:54:28|INFO|ServerRemoving intermediate container c81d0ec0a693
11:54:28|INFO|Server ---> 1c1fa6c51b6e
11:54:28|INFO|ServerSuccessfully built 1c1fa6c51b6e
11:54:28|INFO|ServerSuccessfully tagged testimage:20200308115416
11:54:28|WARN|Serverignore docker run
11:54:28|WARN|Server[upload image] - Login Succeeded
11:54:28|WARN|Server[upload image] - The push refers to repository [registry.cn-hangzhou.aliyuncs.com/lito/testimage]
11:54:28|WARN|Server[upload image] - a3dea8cda1bb: Preparing
11:54:28|WARN|Server[upload image] - 579a8f1d6a12: Preparing
11:54:28|WARN|Server[upload image] - 15e45d99c926: Preparing
11:54:28|WARN|Server[upload image] - 0cf75cb98eb2: Preparing
11:54:28|WARN|Server[upload image] - 814c70fdae62: Preparing
11:54:31|WARN|Server[upload image] - 0cf75cb98eb2: Mounted from lito/spa
11:54:31|WARN|Server[upload image] - 814c70fdae62: Mounted from lito/spa
11:54:31|WARN|Server[upload image] - 15e45d99c926: Mounted from lito/spa
11:54:31|WARN|Server[upload image] - 579a8f1d6a12: Mounted from lito/spa
11:54:32|WARN|Server[upload image] - a3dea8cda1bb: Pushed
11:54:34|WARN|Server[upload image] - 20200308115416: digest: sha256:892c1994a969fcc613d300590754bb8ddee0fb8f75e9614a097a7f482fa5d38e size: 1374
11:54:34|INFO|Server[upload image] - Success
11:54:34|INFO|publish Host: 192.168.159.135centos End
11:54:34|INFO|Deploy Version20200308115416
11:54:34|INFO|local publish folder  ==>   file://C:\Users\Administrator\source\repos\testimage\testimage\bin\Release\deploy_docker\test#link79
11:54:34|INFO|-----------------Deploy End,[Total]:1,[Fail]:0-----------------
11:54:34|INFO|Deploy log ==>   file://C:\Users\Administrator\source\repos\testimage\testimage\bin\Release\deploy_docker\test_deploy_logs\20200308115416.log#link81


从日志里面可以看到,docker image被成功的上传了

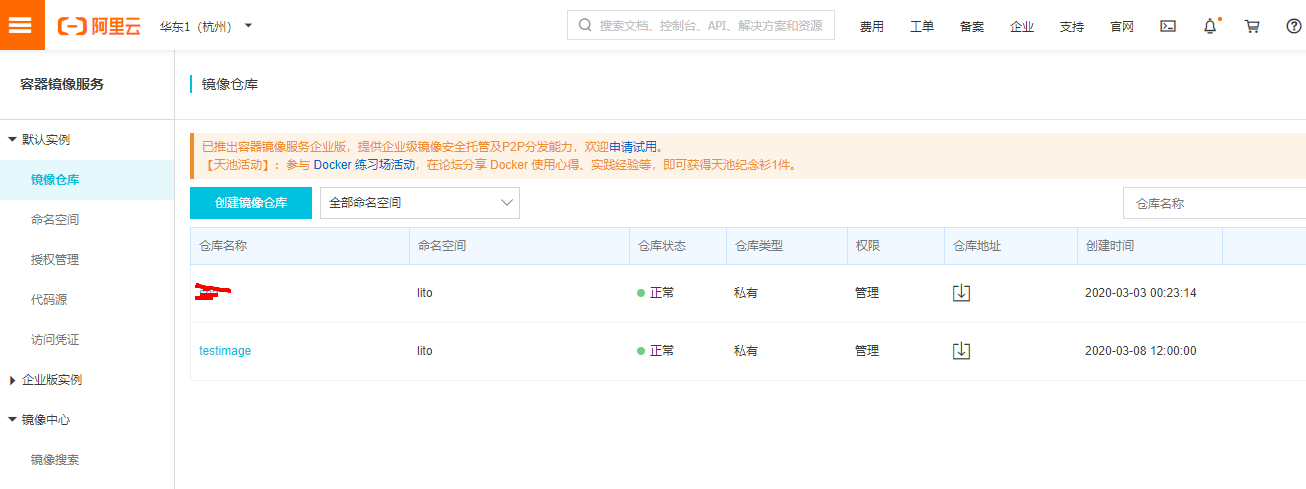

在阿里云镜像仓库可以查到


下篇介绍会继续介绍

  • 镜像上传到仓库后如何手动在k8s进行快速部署
  • 有了镜像后如何在k8s进行快速部署

原文出处:https://www.cnblogs.com/yudongdong/p/12441855.html
