# objectarx 多段线自交检查

2019/04/10 10:10

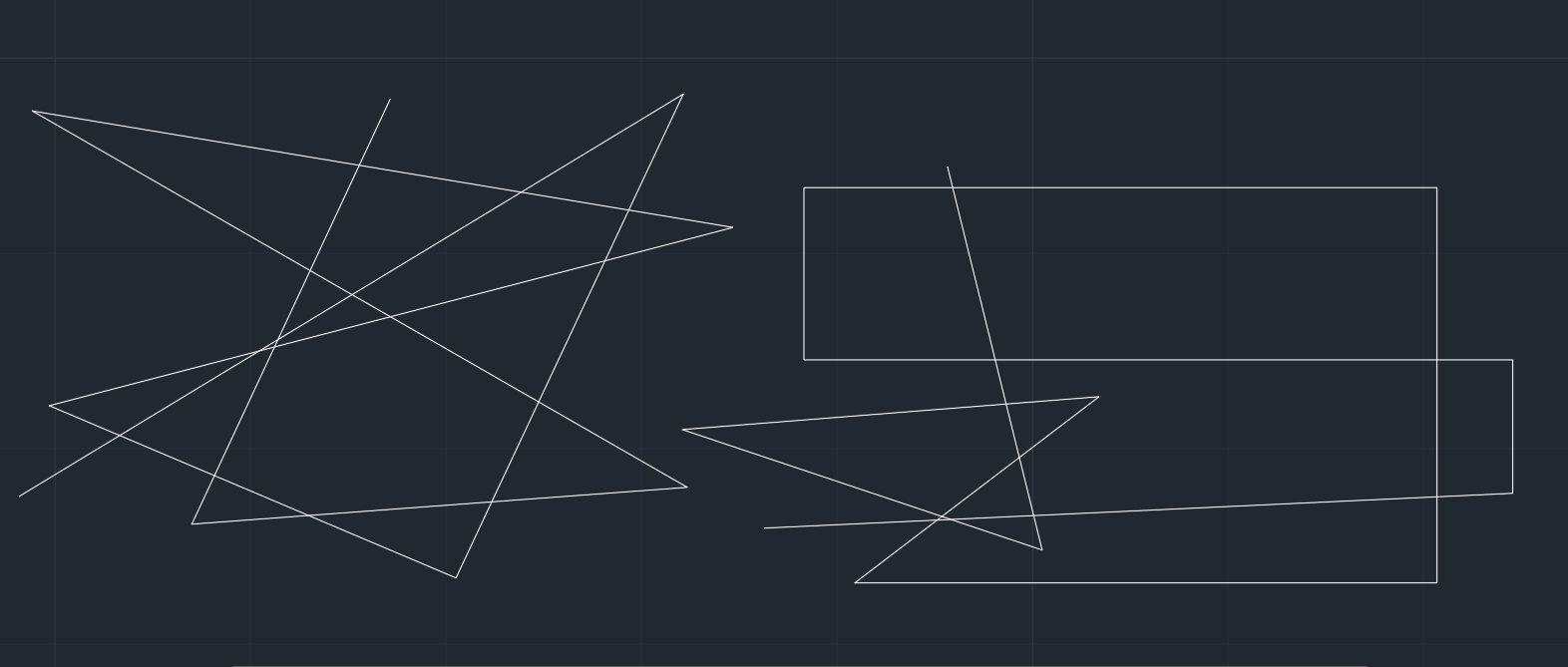

只支持直线段的多段线检查，因为主要用了初中的知识，一元一次方程求交点，详细的说就是，把多段线上相邻的两个点构成一条直线段，然后每条直线段与剩余的直线段求交点，一条直线段就代表一个一元一次方程，知道两点就知道这个方程是什么样的。

static    bool IsEqual(const AcGePoint2d & firstPoint, const AcGePoint2d & secondPoint, double tol)
{
return (fabs(firstPoint.x - secondPoint.x) < tol&&
fabs(firstPoint.y - secondPoint.y) < tol);
}

struct StLine
{
AcGePoint2d ptPre;

AcGePoint2d ptNext;

};

static bool JiaoDian(StLine &l1, StLine &l2, AcGePoint3d& ptCenter) {

double x0, y0, x1, y1, x2, y2, x3, y3;

x0 = l1.ptPre.x;
y0 = l1.ptPre.y;

x1 = l1.ptNext.x;
y1 = l1.ptNext.y;

x2= l2.ptPre.x;
y2 = l2.ptPre.y;

x3 = l2.ptNext.x;
y3 = l2.ptNext.y;

if (x0 - x1 == 0) {
if (x2 - x3 == 0)
{
if (IsEqual(l1.ptPre, l2.ptPre, 1e-4) ||
IsEqual(l1.ptPre, l2.ptNext, 1e-4) ||
IsEqual(l1.ptNext, l2.ptPre, 1e-4) ||
IsEqual(l1.ptNext, l2.ptNext, 1e-4)) {

acutPrintf(L"存在重叠的部分\n");
return false;
}
else {
acutPrintf(L"存在平行的部分\n");
return false;

}
}
else {

double k2 = (y3 - y2) / (x3 - x2);

double b2 = (y2 - k2*x2);

AcGePoint2d jd;

jd.x = x0;
jd.y = k2*x0 + b2;

double distance = l1.ptPre.distanceTo(l1.ptNext);
double dis1 = jd.distanceTo(l1.ptPre);
double dis2 = jd.distanceTo(l1.ptNext);

if (dis1 < distance&&dis2 < distance) {

if (IsEqual(l1.ptPre, jd, 1e-4) ||
IsEqual(jd, l2.ptNext, 1e-4) ||
IsEqual(l1.ptNext, jd, 1e-4) ||
IsEqual(jd, l2.ptPre, 1e-4)) {

return false;
}

ptCenter.x = jd.x;
ptCenter.y = jd.y;
ptCenter.z = 0;

return true;

}
else {
return false;
}
}
}
else if (x3 - x2 == 0) {
if (x0 - x1 != 0)
{
double k2 = (y1 - y0) / (x1 - x0);

double b2 = (y1 - k2*x1);

AcGePoint2d jd;

jd.x = x3;
jd.y = k2*x3 + b2;

double distance = l1.ptPre.distanceTo(l1.ptNext);
double dis1 = jd.distanceTo(l1.ptPre);
double dis2 = jd.distanceTo(l1.ptNext);

if (dis1 < distance&&dis2 < distance) {

if (IsEqual(l1.ptPre, jd, 1e-4) ||
IsEqual(jd, l2.ptNext, 1e-4) ||
IsEqual(l1.ptNext, jd, 1e-4) ||
IsEqual(jd, l2.ptPre, 1e-4)) {

return false;
}

ptCenter.x = jd.x;
ptCenter.y = jd.y;
ptCenter.z = 0;

return true;

}
//交点在延长线上
else {
return false;
}

}
else {
if (IsEqual(l1.ptPre, l2.ptPre, 1e-4) ||
IsEqual(l1.ptPre, l2.ptNext, 1e-4) ||
IsEqual(l1.ptNext, l2.ptPre, 1e-4) ||
IsEqual(l1.ptNext, l2.ptNext, 1e-4)) {

acutPrintf(L"存在重叠的部分\n");
return false;
}
else {
acutPrintf(L"存在平行的部分\n");
return false;
}
}
}
else {

double k1 = (y1 - y0) / (x1 - x0);

double b1 = (y1 - k1*x1);

double k2 = (y3 - y2) / (x3 - x2);

double b2 = (y2 - k2*x2);

AcGePoint2d jd;

if (k1 == k2) {
return false;
}

double x0 = (b2 - b1) / (k1 - k2);
jd.x = x0;

jd.y = k1*x0 + b1;

double distance = l1.ptPre.distanceTo(l1.ptNext);
double dis1 = jd.distanceTo(l1.ptPre);
double dis2 = jd.distanceTo(l1.ptNext);

if (dis1 < distance&&dis2 < distance) {

if (IsEqual(l1.ptPre, jd, 1e-4) ||
IsEqual(jd, l2.ptNext, 1e-4) ||
IsEqual(l1.ptNext, jd, 1e-4) ||
IsEqual(jd, l2.ptPre, 1e-4)) {

return false;
}
ptCenter.x = jd.x;
ptCenter.y = jd.y;
ptCenter.z = 0;

return true;
}
else {
return false;
}
}
}
