你的神经网络有多脆弱

原创
2020/04/17 13:13
阅读数 327
#解压代码压缩包
import zipfile
tar = zipfile.ZipFile('/home/aistudio/data/data17209/attack_example.zip','r')
tar.extractall()
In[2]
cd attack_example/
/home/aistudio/attack_example


你的神经网络有多脆弱

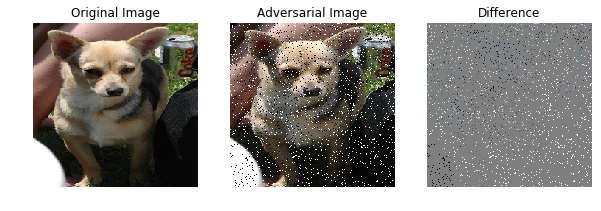

本项目将介绍几种非常有趣的对抗样本生成方法,几行代码就可以让你精心调参几天几夜训练的模型精度下降。

下载安装命令

## CPU版本安装命令
pip install -f https://paddlepaddle.org.cn/pip/oschina/cpu paddlepaddle

## GPU版本安装命令
pip install -f https://paddlepaddle.org.cn/pip/oschina/gpu paddlepaddle-gpu

本项目不涉及高深的算法,有没有涉足此领域都可放心阅读,老少咸宜。

阅读完本项目你将获得:

  • 一声惊叹,原来自己的神经网络如此脆弱
  • 一些反思,神经网络究竟在学什么,学到了什么
  • 你将掌握PaddlePaddle分类模型的基本训练方法,前向推理方法

本项目分为以下几个部分

  1. 基本框架浏览,介绍做实验的基本框架,衡量指标。
  2. 不同的对抗样本生成方法与指标对比。


1. 基本框架介绍

实验环境介绍

模型

ResNeXt50_32x4d

模型定义存放在 /home/aistudio/attack_example/attack_code/models

模型参数存放在 /home/aistudio/attack_example/attack_code/model_parameters

原始图片

提供图片120张,取自Stanford Dogs数据集全集,120张图片分别属于120类。

存放在 /home/aistudio/attack_example/attack_code/input_image

标签为val_list.txt,存放在同目录下

评判指标

正确率



下面我们用代码将模型和参数载入,并看看原始样本的正确率如何。

In[3]
cd attack_code/
/home/aistudio/attack_example/attack_code
In[4]
#coding=utf-8

from __future__ import absolute_import
from __future__ import division
from __future__ import print_function

import argparse
import functools
import numpy as np
import paddle.fluid as fluid
import os

#加载自定义文件
import models

from utils import init_prog, save_adv_image, process_img, tensor2img, calc_mse, add_arguments, print_arguments

path = "/home/aistudio/attack_example/attack_code/"
#os.makedirs("./output_image_attack")


######Init args
image_shape = [3,224,224]
class_dim=121
input_dir = path + "input_image/"
output_dir = path +  "output_image/"
if not os.path.exists('./output_image'):
	os.mkdir('./output_image')

model_name="ResNeXt50_32x4d"
pretrained_model= path + "models_parameters/ResNeXt50_32x4d"

val_list = 'val_list.txt'
use_gpu=True

######Attack graph
adv_program=fluid.Program()
#完成初始化
with fluid.program_guard(adv_program):
    input_layer = fluid.layers.data(name='image', shape=image_shape, dtype='float32')
    #设置为可以计算梯度
    input_layer.stop_gradient=False

    # model definition
    model = models.__dict__[model_name]()
    out_logits = model.net(input=input_layer, class_dim=class_dim)
    out = fluid.layers.softmax(out_logits)

    place = fluid.CUDAPlace(0) if use_gpu else fluid.CPUPlace()
    exe = fluid.Executor(place)
    exe.run(fluid.default_startup_program())

    #记载模型参数
    fluid.io.load_persistables(exe, pretrained_model)

#设置adv_program的BN层状态
init_prog(adv_program)

#创建测试用评估模式
eval_program = adv_program.clone(for_test=True)

#定义梯度
with fluid.program_guard(adv_program):
    label = fluid.layers.data(name="label", shape=[1] ,dtype='int64')
    loss = fluid.layers.cross_entropy(input=out, label=label)
    gradients = fluid.backward.gradients(targets=loss, inputs=[input_layer])[0]

######Inference
def inference(img):
    fetch_list = [out.name]

    result = exe.run(eval_program,
                     fetch_list=fetch_list,
                     feed={ 'image':img })
    result = result[0][0]
    pred_label = np.argmax(result)
    pred_score = result[pred_label].copy()
    return pred_label, pred_score


####### Main #######
def get_original_file(filepath):
    with open(filepath, 'r') as cfile:
        full_lines = [line.strip() for line in cfile]
    cfile.close()
    original_files = []
    for line in full_lines:
        label, file_name = line.split()
        original_files.append([file_name, int(label)])
    return original_files

def gen_acc():
    original_files = get_original_file(input_dir + val_list)
    acc = 0
    len_example = len(original_files)
    for filename, label in original_files:
        img_path = input_dir + filename
        ##读入图像,转换维度,归一化##########
        img=process_img(img_path)
        ##进行前向推理
        pred_label, pred_score = inference(img)

        print("Image: {0} ,true label is {1} , pred label is {2}".format(img_path,label,pred_label))
        if(pred_label == label):
            acc = acc+1
    acc = acc/len_example
    print("the accuracy is {}".format(acc))
2020-03-04 16:29:06,206-INFO: font search path ['/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/mpl-data/fonts/ttf', '/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/mpl-data/fonts/afm', '/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/matplotlib/mpl-data/fonts/pdfcorefonts']
2020-03-04 16:29:06,534-INFO: generated new fontManager
In[5]
gen_acc()
Image: /home/aistudio/attack_example/attack_code/input_image/n02085620_10074.jpg ,true label is 1 , pred label is 1
Image: /home/aistudio/attack_example/attack_code/input_image/n02085782_1039.jpg ,true label is 2 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02085936_10130.jpg ,true label is 3 , pred label is 3
Image: /home/aistudio/attack_example/attack_code/input_image/n02086079_10600.jpg ,true label is 4 , pred label is 4
Image: /home/aistudio/attack_example/attack_code/input_image/n02086240_1059.jpg ,true label is 5 , pred label is 5
Image: /home/aistudio/attack_example/attack_code/input_image/n02086646_1002.jpg ,true label is 6 , pred label is 6
Image: /home/aistudio/attack_example/attack_code/input_image/n02086910_1048.jpg ,true label is 7 , pred label is 7
Image: /home/aistudio/attack_example/attack_code/input_image/n02087046_1206.jpg ,true label is 8 , pred label is 8
Image: /home/aistudio/attack_example/attack_code/input_image/n02087394_11337.jpg ,true label is 9 , pred label is 9
Image: /home/aistudio/attack_example/attack_code/input_image/n02088094_1003.jpg ,true label is 10 , pred label is 10
Image: /home/aistudio/attack_example/attack_code/input_image/n02088238_10013.jpg ,true label is 11 , pred label is 11
Image: /home/aistudio/attack_example/attack_code/input_image/n02088364_10108.jpg ,true label is 12 , pred label is 12
Image: /home/aistudio/attack_example/attack_code/input_image/n02088466_10083.jpg ,true label is 13 , pred label is 13
Image: /home/aistudio/attack_example/attack_code/input_image/n02088632_101.jpg ,true label is 14 , pred label is 14
Image: /home/aistudio/attack_example/attack_code/input_image/n02089078_1064.jpg ,true label is 15 , pred label is 15
Image: /home/aistudio/attack_example/attack_code/input_image/n02089867_1029.jpg ,true label is 16 , pred label is 16
Image: /home/aistudio/attack_example/attack_code/input_image/n02089973_1066.jpg ,true label is 17 , pred label is 17
Image: /home/aistudio/attack_example/attack_code/input_image/n02090379_1272.jpg ,true label is 18 , pred label is 18
Image: /home/aistudio/attack_example/attack_code/input_image/n02090622_10343.jpg ,true label is 19 , pred label is 19
Image: /home/aistudio/attack_example/attack_code/input_image/n02090721_1292.jpg ,true label is 20 , pred label is 20
Image: /home/aistudio/attack_example/attack_code/input_image/n02091032_10079.jpg ,true label is 21 , pred label is 21
Image: /home/aistudio/attack_example/attack_code/input_image/n02091134_10107.jpg ,true label is 22 , pred label is 22
Image: /home/aistudio/attack_example/attack_code/input_image/n02091244_1000.jpg ,true label is 23 , pred label is 23
Image: /home/aistudio/attack_example/attack_code/input_image/n02091467_1110.jpg ,true label is 24 , pred label is 24
Image: /home/aistudio/attack_example/attack_code/input_image/n02091635_1319.jpg ,true label is 25 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02091831_10576.jpg ,true label is 26 , pred label is 26
Image: /home/aistudio/attack_example/attack_code/input_image/n02092002_10699.jpg ,true label is 27 , pred label is 27
Image: /home/aistudio/attack_example/attack_code/input_image/n02092339_1100.jpg ,true label is 28 , pred label is 28
Image: /home/aistudio/attack_example/attack_code/input_image/n02093256_11023.jpg ,true label is 29 , pred label is 29
Image: /home/aistudio/attack_example/attack_code/input_image/n02093428_10947.jpg ,true label is 30 , pred label is 30
Image: /home/aistudio/attack_example/attack_code/input_image/n02093647_1037.jpg ,true label is 31 , pred label is 31
Image: /home/aistudio/attack_example/attack_code/input_image/n02093754_1062.jpg ,true label is 32 , pred label is 32
Image: /home/aistudio/attack_example/attack_code/input_image/n02093859_1003.jpg ,true label is 33 , pred label is 33
Image: /home/aistudio/attack_example/attack_code/input_image/n02093991_1026.jpg ,true label is 34 , pred label is 34
Image: /home/aistudio/attack_example/attack_code/input_image/n02094114_1173.jpg ,true label is 35 , pred label is 35
Image: /home/aistudio/attack_example/attack_code/input_image/n02094258_1004.jpg ,true label is 36 , pred label is 36
Image: /home/aistudio/attack_example/attack_code/input_image/n02094433_10126.jpg ,true label is 37 , pred label is 37
Image: /home/aistudio/attack_example/attack_code/input_image/n02095314_1033.jpg ,true label is 38 , pred label is 38
Image: /home/aistudio/attack_example/attack_code/input_image/n02095570_1031.jpg ,true label is 39 , pred label is 39
Image: /home/aistudio/attack_example/attack_code/input_image/n02095889_1003.jpg ,true label is 40 , pred label is 40
Image: /home/aistudio/attack_example/attack_code/input_image/n02096051_1110.jpg ,true label is 41 , pred label is 41
Image: /home/aistudio/attack_example/attack_code/input_image/n02096177_10031.jpg ,true label is 42 , pred label is 42
Image: /home/aistudio/attack_example/attack_code/input_image/n02096294_1111.jpg ,true label is 43 , pred label is 43
Image: /home/aistudio/attack_example/attack_code/input_image/n02096437_1055.jpg ,true label is 44 , pred label is 44
Image: /home/aistudio/attack_example/attack_code/input_image/n02096585_10604.jpg ,true label is 45 , pred label is 45
Image: /home/aistudio/attack_example/attack_code/input_image/n02097047_1412.jpg ,true label is 46 , pred label is 46
Image: /home/aistudio/attack_example/attack_code/input_image/n02097130_1193.jpg ,true label is 47 , pred label is 47
Image: /home/aistudio/attack_example/attack_code/input_image/n02097209_1038.jpg ,true label is 48 , pred label is 48
Image: /home/aistudio/attack_example/attack_code/input_image/n02097298_10676.jpg ,true label is 49 , pred label is 49
Image: /home/aistudio/attack_example/attack_code/input_image/n02097474_1070.jpg ,true label is 50 , pred label is 50
Image: /home/aistudio/attack_example/attack_code/input_image/n02097658_1018.jpg ,true label is 51 , pred label is 51
Image: /home/aistudio/attack_example/attack_code/input_image/n02098105_1078.jpg ,true label is 52 , pred label is 52
Image: /home/aistudio/attack_example/attack_code/input_image/n02098286_1009.jpg ,true label is 53 , pred label is 53
Image: /home/aistudio/attack_example/attack_code/input_image/n02098413_11385.jpg ,true label is 54 , pred label is 54
Image: /home/aistudio/attack_example/attack_code/input_image/n02099267_1018.jpg ,true label is 55 , pred label is 55
Image: /home/aistudio/attack_example/attack_code/input_image/n02099429_1039.jpg ,true label is 56 , pred label is 56
Image: /home/aistudio/attack_example/attack_code/input_image/n02099601_100.jpg ,true label is 57 , pred label is 57
Image: /home/aistudio/attack_example/attack_code/input_image/n02099712_1150.jpg ,true label is 58 , pred label is 58
Image: /home/aistudio/attack_example/attack_code/input_image/n02099849_1068.jpg ,true label is 59 , pred label is 59
Image: /home/aistudio/attack_example/attack_code/input_image/n02100236_1244.jpg ,true label is 60 , pred label is 60
Image: /home/aistudio/attack_example/attack_code/input_image/n02100583_10249.jpg ,true label is 61 , pred label is 61
Image: /home/aistudio/attack_example/attack_code/input_image/n02100735_10064.jpg ,true label is 62 , pred label is 62
Image: /home/aistudio/attack_example/attack_code/input_image/n02100877_1062.jpg ,true label is 63 , pred label is 63
Image: /home/aistudio/attack_example/attack_code/input_image/n02101006_135.jpg ,true label is 64 , pred label is 64
Image: /home/aistudio/attack_example/attack_code/input_image/n02101388_10017.jpg ,true label is 65 , pred label is 65
Image: /home/aistudio/attack_example/attack_code/input_image/n02101556_1116.jpg ,true label is 66 , pred label is 66
Image: /home/aistudio/attack_example/attack_code/input_image/n02102040_1055.jpg ,true label is 67 , pred label is 67
Image: /home/aistudio/attack_example/attack_code/input_image/n02102177_1160.jpg ,true label is 68 , pred label is 68
Image: /home/aistudio/attack_example/attack_code/input_image/n02102318_10000.jpg ,true label is 69 , pred label is 69
Image: /home/aistudio/attack_example/attack_code/input_image/n02102480_101.jpg ,true label is 70 , pred label is 70
Image: /home/aistudio/attack_example/attack_code/input_image/n02102973_1037.jpg ,true label is 71 , pred label is 71
Image: /home/aistudio/attack_example/attack_code/input_image/n02104029_1075.jpg ,true label is 72 , pred label is 72
Image: /home/aistudio/attack_example/attack_code/input_image/n02104365_10071.jpg ,true label is 73 , pred label is 73
Image: /home/aistudio/attack_example/attack_code/input_image/n02105056_1165.jpg ,true label is 74 , pred label is 74
Image: /home/aistudio/attack_example/attack_code/input_image/n02105162_10076.jpg ,true label is 75 , pred label is 75
Image: /home/aistudio/attack_example/attack_code/input_image/n02105251_1588.jpg ,true label is 76 , pred label is 76
Image: /home/aistudio/attack_example/attack_code/input_image/n02105412_1159.jpg ,true label is 77 , pred label is 77
Image: /home/aistudio/attack_example/attack_code/input_image/n02105505_1018.jpg ,true label is 78 , pred label is 78
Image: /home/aistudio/attack_example/attack_code/input_image/n02105641_10051.jpg ,true label is 79 , pred label is 79
Image: /home/aistudio/attack_example/attack_code/input_image/n02105855_10095.jpg ,true label is 80 , pred label is 80
Image: /home/aistudio/attack_example/attack_code/input_image/n02106030_11148.jpg ,true label is 81 , pred label is 81
Image: /home/aistudio/attack_example/attack_code/input_image/n02106166_1205.jpg ,true label is 82 , pred label is 82
Image: /home/aistudio/attack_example/attack_code/input_image/n02106382_1005.jpg ,true label is 83 , pred label is 83
Image: /home/aistudio/attack_example/attack_code/input_image/n02106550_10048.jpg ,true label is 84 , pred label is 84
Image: /home/aistudio/attack_example/attack_code/input_image/n02106662_10122.jpg ,true label is 85 , pred label is 85
Image: /home/aistudio/attack_example/attack_code/input_image/n02107142_10952.jpg ,true label is 86 , pred label is 86
Image: /home/aistudio/attack_example/attack_code/input_image/n02107312_105.jpg ,true label is 87 , pred label is 87
Image: /home/aistudio/attack_example/attack_code/input_image/n02107574_1026.jpg ,true label is 88 , pred label is 88
Image: /home/aistudio/attack_example/attack_code/input_image/n02107683_1003.jpg ,true label is 89 , pred label is 89
Image: /home/aistudio/attack_example/attack_code/input_image/n02107908_1030.jpg ,true label is 90 , pred label is 90
Image: /home/aistudio/attack_example/attack_code/input_image/n02108000_1087.jpg ,true label is 91 , pred label is 91
Image: /home/aistudio/attack_example/attack_code/input_image/n02108089_1104.jpg ,true label is 92 , pred label is 92
Image: /home/aistudio/attack_example/attack_code/input_image/n02108422_1096.jpg ,true label is 93 , pred label is 93
Image: /home/aistudio/attack_example/attack_code/input_image/n02108551_1025.jpg ,true label is 94 , pred label is 94
Image: /home/aistudio/attack_example/attack_code/input_image/n02108915_10564.jpg ,true label is 95 , pred label is 95
Image: /home/aistudio/attack_example/attack_code/input_image/n02109047_10160.jpg ,true label is 96 , pred label is 96
Image: /home/aistudio/attack_example/attack_code/input_image/n02109525_10032.jpg ,true label is 97 , pred label is 97
Image: /home/aistudio/attack_example/attack_code/input_image/n02109961_11224.jpg ,true label is 98 , pred label is 98
Image: /home/aistudio/attack_example/attack_code/input_image/n02110063_11105.jpg ,true label is 99 , pred label is 99
Image: /home/aistudio/attack_example/attack_code/input_image/n02110185_10116.jpg ,true label is 100 , pred label is 100
Image: /home/aistudio/attack_example/attack_code/input_image/n02110627_10147.jpg ,true label is 101 , pred label is 101
Image: /home/aistudio/attack_example/attack_code/input_image/n02110806_1214.jpg ,true label is 102 , pred label is 102
Image: /home/aistudio/attack_example/attack_code/input_image/n02110958_10378.jpg ,true label is 103 , pred label is 103
Image: /home/aistudio/attack_example/attack_code/input_image/n02111129_1111.jpg ,true label is 104 , pred label is 104
Image: /home/aistudio/attack_example/attack_code/input_image/n02111277_10237.jpg ,true label is 105 , pred label is 105
Image: /home/aistudio/attack_example/attack_code/input_image/n02111500_1048.jpg ,true label is 106 , pred label is 106
Image: /home/aistudio/attack_example/attack_code/input_image/n02111889_10059.jpg ,true label is 107 , pred label is 107
Image: /home/aistudio/attack_example/attack_code/input_image/n02112018_10158.jpg ,true label is 108 , pred label is 108
Image: /home/aistudio/attack_example/attack_code/input_image/n02112137_1005.jpg ,true label is 109 , pred label is 109
Image: /home/aistudio/attack_example/attack_code/input_image/n02112350_10079.jpg ,true label is 110 , pred label is 110
Image: /home/aistudio/attack_example/attack_code/input_image/n02112706_105.jpg ,true label is 111 , pred label is 111
Image: /home/aistudio/attack_example/attack_code/input_image/n02113023_1136.jpg ,true label is 112 , pred label is 112
Image: /home/aistudio/attack_example/attack_code/input_image/n02113186_1030.jpg ,true label is 113 , pred label is 113
Image: /home/aistudio/attack_example/attack_code/input_image/n02113624_1461.jpg ,true label is 114 , pred label is 114
Image: /home/aistudio/attack_example/attack_code/input_image/n02113712_10525.jpg ,true label is 115 , pred label is 115
Image: /home/aistudio/attack_example/attack_code/input_image/n02113799_1155.jpg ,true label is 116 , pred label is 116
Image: /home/aistudio/attack_example/attack_code/input_image/n02113978_1034.jpg ,true label is 117 , pred label is 117
Image: /home/aistudio/attack_example/attack_code/input_image/n02115641_10261.jpg ,true label is 118 , pred label is 118
Image: /home/aistudio/attack_example/attack_code/input_image/n02115913_1010.jpg ,true label is 119 , pred label is 119
Image: /home/aistudio/attack_example/attack_code/input_image/n02116738_10024.jpg ,true label is 120 , pred label is 120
the accuracy is 1.0


由上,我们的原始样本在模型上的正确率为100%



2. 对抗样本生成

2.1 resize大法

顾名思义,就是将原始样本先压缩到一个比较小的尺寸,再放大回原来的尺寸。其实是降低了图片的分辨率。 代码中将此操作放入图片处理函数中,先将样本压缩到(16,16),在放大回(224,224)。

In[6]
import cv2
def process_img_resize(img_path="",image_shape=[3,224,224]):

    mean = [0.485, 0.456, 0.406]
    std = [0.229, 0.224, 0.225]

    img = cv2.imread(img_path)
    #img = cv2.resize(img,(image_shape[1],image_shape[2]))
    img = cv2.resize(cv2.resize(img, (16, 16), cv2.INTER_LINEAR), (224, 224), cv2.INTER_LINEAR)
    #RBG img [224,224,3]->[3,224,224]
    img = img[:, :, ::-1].astype('float32').transpose((2, 0, 1)) / 255
    #img = img.astype('float32').transpose((2, 0, 1)) / 255
    img_mean = np.array(mean).reshape((3, 1, 1))
    img_std = np.array(std).reshape((3, 1, 1))
    img -= img_mean
    img /= img_std

    img=img.astype('float32')
    img=np.expand_dims(img, axis=0)

    return img


而在gen_acc函数中,只需修改调用的图片处理函数即可。

In[7]
output_dir = "./output_image_resize/"
if not os.path.exists("./output_image_resize"):
	os.mkdir("./output_image_resize")
def gen_acc():
    original_files = get_original_file(input_dir + val_list)
    acc = 0
    len_example = len(original_files)
    for filename, label in original_files:
        img_path = input_dir + filename
        ##读入图像,转换维度,归一化##########

        ######################################
        ######################################
        #修改此处调用
        img=process_img_resize(img_path)

        ######################################
        ######################################
        ##进行前向推理
        pred_label, pred_score = inference(img)
        ##Save resize image(.jpg)
        adv_img = tensor2img(img)
        save_adv_image(adv_img, output_dir+filename)
        print("Image: {0} ,true label is {1} , pred label is {2}".format(img_path,label,pred_label))
        if(pred_label == label):
            acc = acc+1
    acc = acc/len_example
    print("the accuracy is {}".format(acc))
In[8]
gen_acc()
Image: /home/aistudio/attack_example/attack_code/input_image/n02085620_10074.jpg ,true label is 1 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02085782_1039.jpg ,true label is 2 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02085936_10130.jpg ,true label is 3 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02086079_10600.jpg ,true label is 4 , pred label is 44
Image: /home/aistudio/attack_example/attack_code/input_image/n02086240_1059.jpg ,true label is 5 , pred label is 6
Image: /home/aistudio/attack_example/attack_code/input_image/n02086646_1002.jpg ,true label is 6 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02086910_1048.jpg ,true label is 7 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02087046_1206.jpg ,true label is 8 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02087394_11337.jpg ,true label is 9 , pred label is 111
Image: /home/aistudio/attack_example/attack_code/input_image/n02088094_1003.jpg ,true label is 10 , pred label is 101
Image: /home/aistudio/attack_example/attack_code/input_image/n02088238_10013.jpg ,true label is 11 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02088364_10108.jpg ,true label is 12 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02088466_10083.jpg ,true label is 13 , pred label is 15
Image: /home/aistudio/attack_example/attack_code/input_image/n02088632_101.jpg ,true label is 14 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02089078_1064.jpg ,true label is 15 , pred label is 15
Image: /home/aistudio/attack_example/attack_code/input_image/n02089867_1029.jpg ,true label is 16 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02089973_1066.jpg ,true label is 17 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02090379_1272.jpg ,true label is 18 , pred label is 35
Image: /home/aistudio/attack_example/attack_code/input_image/n02090622_10343.jpg ,true label is 19 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02090721_1292.jpg ,true label is 20 , pred label is 120
Image: /home/aistudio/attack_example/attack_code/input_image/n02091032_10079.jpg ,true label is 21 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02091134_10107.jpg ,true label is 22 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02091244_1000.jpg ,true label is 23 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02091467_1110.jpg ,true label is 24 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02091635_1319.jpg ,true label is 25 , pred label is 120
Image: /home/aistudio/attack_example/attack_code/input_image/n02091831_10576.jpg ,true label is 26 , pred label is 78
Image: /home/aistudio/attack_example/attack_code/input_image/n02092002_10699.jpg ,true label is 27 , pred label is 60
Image: /home/aistudio/attack_example/attack_code/input_image/n02092339_1100.jpg ,true label is 28 , pred label is 32
Image: /home/aistudio/attack_example/attack_code/input_image/n02093256_11023.jpg ,true label is 29 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02093428_10947.jpg ,true label is 30 , pred label is 32
Image: /home/aistudio/attack_example/attack_code/input_image/n02093647_1037.jpg ,true label is 31 , pred label is 117
Image: /home/aistudio/attack_example/attack_code/input_image/n02093754_1062.jpg ,true label is 32 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02093859_1003.jpg ,true label is 33 , pred label is 120
Image: /home/aistudio/attack_example/attack_code/input_image/n02093991_1026.jpg ,true label is 34 , pred label is 71
Image: /home/aistudio/attack_example/attack_code/input_image/n02094114_1173.jpg ,true label is 35 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02094258_1004.jpg ,true label is 36 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02094433_10126.jpg ,true label is 37 , pred label is 101
Image: /home/aistudio/attack_example/attack_code/input_image/n02095314_1033.jpg ,true label is 38 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02095570_1031.jpg ,true label is 39 , pred label is 120
Image: /home/aistudio/attack_example/attack_code/input_image/n02095889_1003.jpg ,true label is 40 , pred label is 40
Image: /home/aistudio/attack_example/attack_code/input_image/n02096051_1110.jpg ,true label is 41 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02096177_10031.jpg ,true label is 42 , pred label is 15
Image: /home/aistudio/attack_example/attack_code/input_image/n02096294_1111.jpg ,true label is 43 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02096437_1055.jpg ,true label is 44 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02096585_10604.jpg ,true label is 45 , pred label is 120
Image: /home/aistudio/attack_example/attack_code/input_image/n02097047_1412.jpg ,true label is 46 , pred label is 31
Image: /home/aistudio/attack_example/attack_code/input_image/n02097130_1193.jpg ,true label is 47 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02097209_1038.jpg ,true label is 48 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02097298_10676.jpg ,true label is 49 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02097474_1070.jpg ,true label is 50 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02097658_1018.jpg ,true label is 51 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02098105_1078.jpg ,true label is 52 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02098286_1009.jpg ,true label is 53 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02098413_11385.jpg ,true label is 54 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02099267_1018.jpg ,true label is 55 , pred label is 83
Image: /home/aistudio/attack_example/attack_code/input_image/n02099429_1039.jpg ,true label is 56 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02099601_100.jpg ,true label is 57 , pred label is 57
Image: /home/aistudio/attack_example/attack_code/input_image/n02099712_1150.jpg ,true label is 58 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02099849_1068.jpg ,true label is 59 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02100236_1244.jpg ,true label is 60 , pred label is 56
Image: /home/aistudio/attack_example/attack_code/input_image/n02100583_10249.jpg ,true label is 61 , pred label is 64
Image: /home/aistudio/attack_example/attack_code/input_image/n02100735_10064.jpg ,true label is 62 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02100877_1062.jpg ,true label is 63 , pred label is 63
Image: /home/aistudio/attack_example/attack_code/input_image/n02101006_135.jpg ,true label is 64 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02101388_10017.jpg ,true label is 65 , pred label is 6
Image: /home/aistudio/attack_example/attack_code/input_image/n02101556_1116.jpg ,true label is 66 , pred label is 40
Image: /home/aistudio/attack_example/attack_code/input_image/n02102040_1055.jpg ,true label is 67 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02102177_1160.jpg ,true label is 68 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02102318_10000.jpg ,true label is 69 , pred label is 6
Image: /home/aistudio/attack_example/attack_code/input_image/n02102480_101.jpg ,true label is 70 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02102973_1037.jpg ,true label is 71 , pred label is 120
Image: /home/aistudio/attack_example/attack_code/input_image/n02104029_1075.jpg ,true label is 72 , pred label is 40
Image: /home/aistudio/attack_example/attack_code/input_image/n02104365_10071.jpg ,true label is 73 , pred label is 120
Image: /home/aistudio/attack_example/attack_code/input_image/n02105056_1165.jpg ,true label is 74 , pred label is 15
Image: /home/aistudio/attack_example/attack_code/input_image/n02105162_10076.jpg ,true label is 75 , pred label is 120
Image: /home/aistudio/attack_example/attack_code/input_image/n02105251_1588.jpg ,true label is 76 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02105412_1159.jpg ,true label is 77 , pred label is 15
Image: /home/aistudio/attack_example/attack_code/input_image/n02105505_1018.jpg ,true label is 78 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02105641_10051.jpg ,true label is 79 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02105855_10095.jpg ,true label is 80 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02106030_11148.jpg ,true label is 81 , pred label is 102
Image: /home/aistudio/attack_example/attack_code/input_image/n02106166_1205.jpg ,true label is 82 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02106382_1005.jpg ,true label is 83 , pred label is 71
Image: /home/aistudio/attack_example/attack_code/input_image/n02106550_10048.jpg ,true label is 84 , pred label is 64
Image: /home/aistudio/attack_example/attack_code/input_image/n02106662_10122.jpg ,true label is 85 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02107142_10952.jpg ,true label is 86 , pred label is 15
Image: /home/aistudio/attack_example/attack_code/input_image/n02107312_105.jpg ,true label is 87 , pred label is 64
Image: /home/aistudio/attack_example/attack_code/input_image/n02107574_1026.jpg ,true label is 88 , pred label is 91
Image: /home/aistudio/attack_example/attack_code/input_image/n02107683_1003.jpg ,true label is 89 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02107908_1030.jpg ,true label is 90 , pred label is 89
Image: /home/aistudio/attack_example/attack_code/input_image/n02108000_1087.jpg ,true label is 91 , pred label is 15
Image: /home/aistudio/attack_example/attack_code/input_image/n02108089_1104.jpg ,true label is 92 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02108422_1096.jpg ,true label is 93 , pred label is 38
Image: /home/aistudio/attack_example/attack_code/input_image/n02108551_1025.jpg ,true label is 94 , pred label is 64
Image: /home/aistudio/attack_example/attack_code/input_image/n02108915_10564.jpg ,true label is 95 , pred label is 117
Image: /home/aistudio/attack_example/attack_code/input_image/n02109047_10160.jpg ,true label is 96 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02109525_10032.jpg ,true label is 97 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02109961_11224.jpg ,true label is 98 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02110063_11105.jpg ,true label is 99 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02110185_10116.jpg ,true label is 100 , pred label is 91
Image: /home/aistudio/attack_example/attack_code/input_image/n02110627_10147.jpg ,true label is 101 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02110806_1214.jpg ,true label is 102 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02110958_10378.jpg ,true label is 103 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02111129_1111.jpg ,true label is 104 , pred label is 120
Image: /home/aistudio/attack_example/attack_code/input_image/n02111277_10237.jpg ,true label is 105 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02111500_1048.jpg ,true label is 106 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02111889_10059.jpg ,true label is 107 , pred label is 40
Image: /home/aistudio/attack_example/attack_code/input_image/n02112018_10158.jpg ,true label is 108 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02112137_1005.jpg ,true label is 109 , pred label is 34
Image: /home/aistudio/attack_example/attack_code/input_image/n02112350_10079.jpg ,true label is 110 , pred label is 110
Image: /home/aistudio/attack_example/attack_code/input_image/n02112706_105.jpg ,true label is 111 , pred label is 34
Image: /home/aistudio/attack_example/attack_code/input_image/n02113023_1136.jpg ,true label is 112 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02113186_1030.jpg ,true label is 113 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02113624_1461.jpg ,true label is 114 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02113712_10525.jpg ,true label is 115 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02113799_1155.jpg ,true label is 116 , pred label is 56
Image: /home/aistudio/attack_example/attack_code/input_image/n02113978_1034.jpg ,true label is 117 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02115641_10261.jpg ,true label is 118 , pred label is 25
Image: /home/aistudio/attack_example/attack_code/input_image/n02115913_1010.jpg ,true label is 119 , pred label is 119
Image: /home/aistudio/attack_example/attack_code/input_image/n02116738_10024.jpg ,true label is 120 , pred label is 25
the accuracy is 0.058333333333333334


img = cv2.resize(cv2.resize(img, (16, 16), cv2.INTER_LINEAR), (224, 224), cv2.INTER_LINEAR)

多了只此一行代码,模型几乎全军覆没,正确率掉到只有5.83334%。

下面我们看看原图和经过resize之后图片的对比。

In[9]
#定义一个观察图片区别的函数
def show_images_diff(original_img,adversarial_img):
    #original_img = np.array(Image.open(original_img))
    #adversarial_img = np.array(Image.open(adversarial_img))
    original_img=cv2.resize(original_img.copy(),(224,224))
    adversarial_img=cv2.resize(adversarial_img.copy(),(224,224))

    plt.figure(figsize=(10,10))

    #original_img=original_img/255.0
    #adversarial_img=adversarial_img/255.0

    plt.subplot(1, 3, 1)
    plt.title('Original Image')
    plt.imshow(original_img)
    plt.axis('off')

    plt.subplot(1, 3, 2)
    plt.title('Adversarial Image')
    plt.imshow(adversarial_img)
    plt.axis('off')

    plt.subplot(1, 3, 3)
    plt.title('Difference')
    difference = 0.0+adversarial_img - original_img

    l0 = np.where(difference != 0)[0].shape[0]*100/(224*224*3)
    l2 = np.linalg.norm(difference)/(256*3)
    linf=np.linalg.norm(difference.copy().ravel(),ord=np.inf)
    # print(difference)
    print("l0={}% l2={} linf={}".format(l0, l2,linf))

    #(-1,1)  -> (0,1)
    #灰色打底 容易看出区别
    difference=difference/255.0

    difference=difference/2.0+0.5

    plt.imshow(difference)
    plt.axis('off')

    plt.show()
In[10]
from PIL import Image, ImageOps
import cv2
import matplotlib.pyplot as plt
#########################################
##此处的pname可替换为你想查看的图片
pname = "n02085620_10074.jpg"
#########################################
image_name, image_ext = pname.split('.')
#pname_attack = image_name + ".png"
original_img=np.array(Image.open("/home/aistudio/attack_example/attack_code/input_image/" + pname))
adversarial_img=np.array(Image.open("/home/aistudio/attack_example/attack_code/output_image_resize/" + pname))
show_images_diff(original_img,adversarial_img)
l0=90.96978635204081% l2=15.028726155708648 linf=193.0


2.2 椒盐大法

顾名思义,就是在照片上撒点椒盐,多寡随意,丰俭由人。



下面定义添加椒盐噪声的函数。

In[16]
import numpy as np
import numpy.random as random
np.random.seed(2020)
def addsalt_pepper(src,percetage):
    NoiseImg=src
    NoiseNum=int(percetage*src.shape[0]*src.shape[1])
    for i in range(NoiseNum):
        randX=random.random_integers(0,src.shape[0]-1)
        randY=random.random_integers(0,src.shape[1]-1)
        if random.random_integers(0,1)<=0.5:
            NoiseImg[randX,randY]=0
        else:
            NoiseImg[randX,randY]=255
    return NoiseImg


同样的,我们将处理图片的代码添加到precess_img函数中并重命名

In[17]
import cv2
def process_img_salt(img_path="",image_shape=[3,224,224]):

    mean = [0.485, 0.456, 0.406]
    std = [0.229, 0.224, 0.225]

    img = cv2.imread(img_path)
    img = cv2.resize(img,(image_shape[1],image_shape[2]))
    img = addsalt_pepper(img, 0.1)

    #RBG img [224,224,3]->[3,224,224]
    img = img[:, :, ::-1].astype('float32').transpose((2, 0, 1)) / 255
    #img = img.astype('float32').transpose((2, 0, 1)) / 255
    img_mean = np.array(mean).reshape((3, 1, 1))
    img_std = np.array(std).reshape((3, 1, 1))
    img -= img_mean
    img /= img_std

    img=img.astype('float32')
    img=np.expand_dims(img, axis=0)

    return img
In[18]
output_dir = "./output_image_salt/"
if not os.path.exists("./output_image_salt"):
	os.mkdir("./output_image_salt")
def gen_acc():
    original_files = get_original_file(input_dir + val_list)
    acc = 0
    len_example = len(original_files)
    for filename, label in original_files:
        img_path = input_dir + filename
        ##读入图像,转换维度,归一化##########

        ######################################
        ######################################
        #修改此处调用
        img=process_img_salt(img_path)

        ######################################
        ######################################
        ##进行前向推理
        pred_label, pred_score = inference(img)
        ##Save resize image(.jpg)
        adv_img = tensor2img(img)
        save_adv_image(adv_img, output_dir+filename)
        print("Image: {0} ,true label is {1} , pred label is {2}".format(img_path,label,pred_label))
        if(pred_label == label):
            acc = acc+1
    acc = acc/len_example
    print("the accuracy is {}".format(acc))
In[19]
gen_acc()
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/ipykernel_launcher.py:8: DeprecationWarning: This function is deprecated. Please call randint(0, 223 + 1) instead

/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/ipykernel_launcher.py:9: DeprecationWarning: This function is deprecated. Please call randint(0, 223 + 1) instead
  if __name__ == '__main__':
/opt/conda/envs/python35-paddle120-env/lib/python3.7/site-packages/ipykernel_launcher.py:10: DeprecationWarning: This function is deprecated. Please call randint(0, 1 + 1) instead
  # Remove the CWD from sys.path while we load stuff.
Image: /home/aistudio/attack_example/attack_code/input_image/n02085620_10074.jpg ,true label is 1 , pred label is 1
Image: /home/aistudio/attack_example/attack_code/input_image/n02085782_1039.jpg ,true label is 2 , pred label is 2
Image: /home/aistudio/attack_example/attack_code/input_image/n02085936_10130.jpg ,true label is 3 , pred label is 44
Image: /home/aistudio/attack_example/attack_code/input_image/n02086079_10600.jpg ,true label is 4 , pred label is 107
Image: /home/aistudio/attack_example/attack_code/input_image/n02086240_1059.jpg ,true label is 5 , pred label is 5
Image: /home/aistudio/attack_example/attack_code/input_image/n02086646_1002.jpg ,true label is 6 , pred label is 69
Image: /home/aistudio/attack_example/attack_code/input_image/n02086910_1048.jpg ,true label is 7 , pred label is 6
Image: /home/aistudio/attack_example/attack_code/input_image/n02087046_1206.jpg ,true label is 8 , pred label is 24
Image: /home/aistudio/attack_example/attack_code/input_image/n02087394_11337.jpg ,true label is 9 , pred label is 9
Image: /home/aistudio/attack_example/attack_code/input_image/n02088094_1003.jpg ,true label is 10 , pred label is 105
Image: /home/aistudio/attack_example/attack_code/input_image/n02088238_10013.jpg ,true label is 11 , pred label is 115
Image: /home/aistudio/attack_example/attack_code/input_image/n02088364_10108.jpg ,true label is 12 , pred label is 69
Image: /home/aistudio/attack_example/attack_code/input_image/n02088466_10083.jpg ,true label is 13 , pred label is 13
Image: /home/aistudio/attack_example/attack_code/input_image/n02088632_101.jpg ,true label is 14 , pred label is 14
Image: /home/aistudio/attack_example/attack_code/input_image/n02089078_1064.jpg ,true label is 15 , pred label is 64
Image: /home/aistudio/attack_example/attack_code/input_image/n02089867_1029.jpg ,true label is 16 , pred label is 16
Image: /home/aistudio/attack_example/attack_code/input_image/n02089973_1066.jpg ,true label is 17 , pred label is 17
Image: /home/aistudio/attack_example/attack_code/input_image/n02090379_1272.jpg ,true label is 18 , pred label is 18
Image: /home/aistudio/attack_example/attack_code/input_image/n02090622_10343.jpg ,true label is 19 , pred label is 116
Image: /home/aistudio/attack_example/attack_code/input_image/n02090721_1292.jpg ,true label is 20 , pred label is 31
Image: /home/aistudio/attack_example/attack_code/input_image/n02091032_10079.jpg ,true label is 21 , pred label is 95
Image: /home/aistudio/attack_example/attack_code/input_image/n02091134_10107.jpg ,true label is 22 , pred label is 92
Image: /home/aistudio/attack_example/attack_code/input_image/n02091244_1000.jpg ,true label is 23 , pred label is 23
Image: /home/aistudio/attack_example/attack_code/input_image/n02091467_1110.jpg ,true label is 24 , pred label is 100
Image: /home/aistudio/attack_example/attack_code/input_image/n02091635_1319.jpg ,true label is 25 , pred label is 52
Image: /home/aistudio/attack_example/attack_code/input_image/n02091831_10576.jpg ,true label is 26 , pred label is 92
Image: /home/aistudio/attack_example/attack_code/input_image/n02092002_10699.jpg ,true label is 27 , pred label is 27
Image: /home/aistudio/attack_example/attack_code/input_image/n02092339_1100.jpg ,true label is 28 , pred label is 55
Image: /home/aistudio/attack_example/attack_code/input_image/n02093256_11023.jpg ,true label is 29 , pred label is 71
Image: /home/aistudio/attack_example/attack_code/input_image/n02093428_10947.jpg ,true label is 30 , pred label is 75
Image: /home/aistudio/attack_example/attack_code/input_image/n02093647_1037.jpg ,true label is 31 , pred label is 31
Image: /home/aistudio/attack_example/attack_code/input_image/n02093754_1062.jpg ,true label is 32 , pred label is 39
Image: /home/aistudio/attack_example/attack_code/input_image/n02093859_1003.jpg ,true label is 33 , pred label is 33
Image: /home/aistudio/attack_example/attack_code/input_image/n02093991_1026.jpg ,true label is 34 , pred label is 114
Image: /home/aistudio/attack_example/attack_code/input_image/n02094114_1173.jpg ,true label is 35 , pred label is 41
Image: /home/aistudio/attack_example/attack_code/input_image/n02094258_1004.jpg ,true label is 36 , pred label is 43
Image: /home/aistudio/attack_example/attack_code/input_image/n02094433_10126.jpg ,true label is 37 , pred label is 37
Image: /home/aistudio/attack_example/attack_code/input_image/n02095314_1033.jpg ,true label is 38 , pred label is 62
Image: /home/aistudio/attack_example/attack_code/input_image/n02095570_1031.jpg ,true label is 39 , pred label is 39
Image: /home/aistudio/attack_example/attack_code/input_image/n02095889_1003.jpg ,true label is 40 , pred label is 39
Image: /home/aistudio/attack_example/attack_code/input_image/n02096051_1110.jpg ,true label is 41 , pred label is 41
Image: /home/aistudio/attack_example/attack_code/input_image/n02096177_10031.jpg ,true label is 42 , pred label is 116
Image: /home/aistudio/attack_example/attack_code/input_image/n02096294_1111.jpg ,true label is 43 , pred label is 38
Image: /home/aistudio/attack_example/attack_code/input_image/n02096437_1055.jpg ,true label is 44 , pred label is 52
Image: /home/aistudio/attack_example/attack_code/input_image/n02096585_10604.jpg ,true label is 45 , pred label is 55
Image: /home/aistudio/attack_example/attack_code/input_image/n02097047_1412.jpg ,true label is 46 , pred label is 33
Image: /home/aistudio/attack_example/attack_code/input_image/n02097130_1193.jpg ,true label is 47 , pred label is 47
Image: /home/aistudio/attack_example/attack_code/input_image/n02097209_1038.jpg ,true label is 48 , pred label is 48
Image: /home/aistudio/attack_example/attack_code/input_image/n02097298_10676.jpg ,true label is 49 , pred label is 105
Image: /home/aistudio/attack_example/attack_code/input_image/n02097474_1070.jpg ,true label is 50 , pred label is 47
Image: /home/aistudio/attack_example/attack_code/input_image/n02097658_1018.jpg ,true label is 51 , pred label is 36
Image: /home/aistudio/attack_example/attack_code/input_image/n02098105_1078.jpg ,true label is 52 , pred label is 52
Image: /home/aistudio/attack_example/attack_code/input_image/n02098286_1009.jpg ,true label is 53 , pred label is 100
Image: /home/aistudio/attack_example/attack_code/input_image/n02098413_11385.jpg ,true label is 54 , pred label is 66
Image: /home/aistudio/attack_example/attack_code/input_image/n02099267_1018.jpg ,true label is 55 , pred label is 55
Image: /home/aistudio/attack_example/attack_code/input_image/n02099429_1039.jpg ,true label is 56 , pred label is 105
Image: /home/aistudio/attack_example/attack_code/input_image/n02099601_100.jpg ,true label is 57 , pred label is 57
Image: /home/aistudio/attack_example/attack_code/input_image/n02099712_1150.jpg ,true label is 58 , pred label is 115
Image: /home/aistudio/attack_example/attack_code/input_image/n02099849_1068.jpg ,true label is 59 , pred label is 115
Image: /home/aistudio/attack_example/attack_code/input_image/n02100236_1244.jpg ,true label is 60 , pred label is 47
Image: /home/aistudio/attack_example/attack_code/input_image/n02100583_10249.jpg ,true label is 61 , pred label is 18
Image: /home/aistudio/attack_example/attack_code/input_image/n02100735_10064.jpg ,true label is 62 , pred label is 115
Image: /home/aistudio/attack_example/attack_code/input_image/n02100877_1062.jpg ,true label is 63 , pred label is 63
Image: /home/aistudio/attack_example/attack_code/input_image/n02101006_135.jpg ,true label is 64 , pred label is 64
Image: /home/aistudio/attack_example/attack_code/input_image/n02101388_10017.jpg ,true label is 65 , pred label is 65
Image: /home/aistudio/attack_example/attack_code/input_image/n02101556_1116.jpg ,true label is 66 , pred label is 62
Image: /home/aistudio/attack_example/attack_code/input_image/n02102040_1055.jpg ,true label is 67 , pred label is 97
Image: /home/aistudio/attack_example/attack_code/input_image/n02102177_1160.jpg ,true label is 68 , pred label is 68
Image: /home/aistudio/attack_example/attack_code/input_image/n02102318_10000.jpg ,true label is 69 , pred label is 69
Image: /home/aistudio/attack_example/attack_code/input_image/n02102480_101.jpg ,true label is 70 , pred label is 115
Image: /home/aistudio/attack_example/attack_code/input_image/n02102973_1037.jpg ,true label is 71 , pred label is 105
Image: /home/aistudio/attack_example/attack_code/input_image/n02104029_1075.jpg ,true label is 72 , pred label is 100
Image: /home/aistudio/attack_example/attack_code/input_image/n02104365_10071.jpg ,true label is 73 , pred label is 73
Image: /home/aistudio/attack_example/attack_code/input_image/n02105056_1165.jpg ,true label is 74 , pred label is 74
Image: /home/aistudio/attack_example/attack_code/input_image/n02105162_10076.jpg ,true label is 75 , pred label is 75
Image: /home/aistudio/attack_example/attack_code/input_image/n02105251_1588.jpg ,true label is 76 , pred label is 103
Image: /home/aistudio/attack_example/attack_code/input_image/n02105412_1159.jpg ,true label is 77 , pred label is 77
Image: /home/aistudio/attack_example/attack_code/input_image/n02105505_1018.jpg ,true label is 78 , pred label is 116
Image: /home/aistudio/attack_example/attack_code/input_image/n02105641_10051.jpg ,true label is 79 , pred label is 31
Image: /home/aistudio/attack_example/attack_code/input_image/n02105855_10095.jpg ,true label is 80 , pred label is 105
Image: /home/aistudio/attack_example/attack_code/input_image/n02106030_11148.jpg ,true label is 81 , pred label is 109
Image: /home/aistudio/attack_example/attack_code/input_image/n02106166_1205.jpg ,true label is 82 , pred label is 105
Image: /home/aistudio/attack_example/attack_code/input_image/n02106382_1005.jpg ,true label is 83 , pred label is 83
Image: /home/aistudio/attack_example/attack_code/input_image/n02106550_10048.jpg ,true label is 84 , pred label is 84
Image: /home/aistudio/attack_example/attack_code/input_image/n02106662_10122.jpg ,true label is 85 , pred label is 85
Image: /home/aistudio/attack_example/attack_code/input_image/n02107142_10952.jpg ,true label is 86 , pred label is 86
Image: /home/aistudio/attack_example/attack_code/input_image/n02107312_105.jpg ,true label is 87 , pred label is 87
Image: /home/aistudio/attack_example/attack_code/input_image/n02107574_1026.jpg ,true label is 88 , pred label is 88
Image: /home/aistudio/attack_example/attack_code/input_image/n02107683_1003.jpg ,true label is 89 , pred label is 105
Image: /home/aistudio/attack_example/attack_code/input_image/n02107908_1030.jpg ,true label is 90 , pred label is 89
Image: /home/aistudio/attack_example/attack_code/input_image/n02108000_1087.jpg ,true label is 91 , pred label is 88
Image: /home/aistudio/attack_example/attack_code/input_image/n02108089_1104.jpg ,true label is 92 , pred label is 97
Image: /home/aistudio/attack_example/attack_code/input_image/n02108422_1096.jpg ,true label is 93 , pred label is 93
Image: /home/aistudio/attack_example/attack_code/input_image/n02108551_1025.jpg ,true label is 94 , pred label is 94
Image: /home/aistudio/attack_example/attack_code/input_image/n02108915_10564.jpg ,true label is 95 , pred label is 95
Image: /home/aistudio/attack_example/attack_code/input_image/n02109047_10160.jpg ,true label is 96 , pred label is 104
Image: /home/aistudio/attack_example/attack_code/input_image/n02109525_10032.jpg ,true label is 97 , pred label is 97
Image: /home/aistudio/attack_example/attack_code/input_image/n02109961_11224.jpg ,true label is 98 , pred label is 98
Image: /home/aistudio/attack_example/attack_code/input_image/n02110063_11105.jpg ,true label is 99 , pred label is 85
Image: /home/aistudio/attack_example/attack_code/input_image/n02110185_10116.jpg ,true label is 100 , pred label is 73
Image: /home/aistudio/attack_example/attack_code/input_image/n02110627_10147.jpg ,true label is 101 , pred label is 115
Image: /home/aistudio/attack_example/attack_code/input_image/n02110806_1214.jpg ,true label is 102 , pred label is 8
Image: /home/aistudio/attack_example/attack_code/input_image/n02110958_10378.jpg ,true label is 103 , pred label is 83
Image: /home/aistudio/attack_example/attack_code/input_image/n02111129_1111.jpg ,true label is 104 , pred label is 104
Image: /home/aistudio/attack_example/attack_code/input_image/n02111277_10237.jpg ,true label is 105 , pred label is 86
Image: /home/aistudio/attack_example/attack_code/input_image/n02111500_1048.jpg ,true label is 106 , pred label is 116
Image: /home/aistudio/attack_example/attack_code/input_image/n02111889_10059.jpg ,true label is 107 , pred label is 107
Image: /home/aistudio/attack_example/attack_code/input_image/n02112018_10158.jpg ,true label is 108 , pred label is 108
Image: /home/aistudio/attack_example/attack_code/input_image/n02112137_1005.jpg ,true label is 109 , pred label is 109
Image: /home/aistudio/attack_example/attack_code/input_image/n02112350_10079.jpg ,true label is 110 , pred label is 110
Image: /home/aistudio/attack_example/attack_code/input_image/n02112706_105.jpg ,true label is 111 , pred label is 104
Image: /home/aistudio/attack_example/attack_code/input_image/n02113023_1136.jpg ,true label is 112 , pred label is 109
Image: /home/aistudio/attack_example/attack_code/input_image/n02113186_1030.jpg ,true label is 113 , pred label is 113
Image: /home/aistudio/attack_example/attack_code/input_image/n02113624_1461.jpg ,true label is 114 , pred label is 44
Image: /home/aistudio/attack_example/attack_code/input_image/n02113712_10525.jpg ,true label is 115 , pred label is 114
Image: /home/aistudio/attack_example/attack_code/input_image/n02113799_1155.jpg ,true label is 116 , pred label is 83
Image: /home/aistudio/attack_example/attack_code/input_image/n02113978_1034.jpg ,true label is 117 , pred label is 117
Image: /home/aistudio/attack_example/attack_code/input_image/n02115641_10261.jpg ,true label is 118 , pred label is 118
Image: /home/aistudio/attack_example/attack_code/input_image/n02115913_1010.jpg ,true label is 119 , pred label is 59
Image: /home/aistudio/attack_example/attack_code/input_image/n02116738_10024.jpg ,true label is 120 , pred label is 120
the accuracy is 0.4166666666666667


可以看到,为原图像10%的像素添加椒盐噪声后,正确率由1降为0.41667。



下面我们直观看看原来的图片和添加椒盐噪声的图片有什么区别。

In[15]
from PIL import Image, ImageOps
import cv2
import matplotlib.pyplot as plt
#########################################
##此处的pname可替换为你想查看的图片
pname = "n02085620_10074.jpg"
#########################################
image_name, image_ext = pname.split('.')
#pname_attack = image_name + ".png"
original_img=np.array(Image.open("/home/aistudio/attack_example/attack_code/input_image/" + pname))
adversarial_img=np.array(Image.open("/home/aistudio/attack_example/attack_code/output_image_salt/" + pname))
show_images_diff(original_img,adversarial_img)
l0=84.56234056122449% l2=23.405695470792207 linf=255.0


至此也就到本项目的最后了,我们用一表格对比原图正确率,resize图片之后的正确率,添加椒盐噪声的正确率。

原图acc resize_acc salt_acc
1 0.05834 0.41667

希望本项目对你有所帮助启发。

点击链接,使用AI Studio一键上手实践项目吧:https://aistudio.baidu.com/aistudio/projectdetail/301861

下载安装命令

## CPU版本安装命令
pip install -f https://paddlepaddle.org.cn/pip/oschina/cpu paddlepaddle

## GPU版本安装命令
pip install -f https://paddlepaddle.org.cn/pip/oschina/gpu paddlepaddle-gpu

>> 访问 PaddlePaddle 官网,了解更多相关内容

展开阅读全文
加载中

作者的其它热门文章

打赏
0
0 收藏
分享
打赏
0 评论
0 收藏
0
分享
返回顶部
顶部
