shiro源码分析(四)具体的Realm

乒乓狂魔
 乒乓狂魔
发布于 2015/02/07 10:19
字数 2687
阅读 253
收藏 2
首先还是Realm的接口设计图:


这里只来说明SimpleAccountRealm和JdbcRealm的实现。
首先是SimpleAccountRealm不用关心数据的具体来源,只提供了与上层的交互,即实现了AuthenticatingRealm遗留的AuthenticationInfo doGetAuthenticationInfo和AuthorizingRealm遗留的AuthorizationInfo doGetAuthorizationInfo。
如下:

protected final Map<String, SimpleAccount> users; //username-to-SimpleAccount
    protected final Map<String, SimpleRole> roles; //roleName-to-SimpleRole
    protected final ReadWriteLock USERS_LOCK;
    protected final ReadWriteLock ROLES_LOCK;

    public SimpleAccountRealm() {
        this.users = new LinkedHashMap<String, SimpleAccount>();
        this.roles = new LinkedHashMap<String, SimpleRole>();
        USERS_LOCK = new ReentrantReadWriteLock();
        ROLES_LOCK = new ReentrantReadWriteLock();
        //SimpleAccountRealms are memory-only realms - no need for an additional cache mechanism since we're
        //already as memory-efficient as we can be:
        setCachingEnabled(false);
    }

SimpleAccountRealm内部有四个属性,Map<String, SimpleAccount> users:用于存放用户账号信息,Map<String, SimpleRole> roles用于存放角色名的信息。这两个都是各种配置的最终归属存储地。
ReadWriteLock USERS_LOCK:由于这些配置信息,一般不会去修改,大部分时间用于查询,所以要使用读写锁。一般的synchronized同步,不管你是读还是写,都要进行等待。写与写需要进行同步,写与读也要进行同步,但读与读却并不需要进行同步,所以对于那些经常读的场景,要使用读写锁ReadWriteLock 来提升性能。ReadWriteLock ROLES_LOCK同理。
有了以上数据源,实现父类的遗留的方法就比较简单了。如下:

protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {
        UsernamePasswordToken upToken = (UsernamePasswordToken) token;
        SimpleAccount account = getUser(upToken.getUsername());

        if (account != null) {

            if (account.isLocked()) {
                throw new LockedAccountException("Account [" + account + "] is locked.");
            }
            if (account.isCredentialsExpired()) {
                String msg = "The credentials for account [" + account + "] are expired";
                throw new ExpiredCredentialsException(msg);
            }

        }

        return account;
    }

    protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {
        String username = getUsername(principals);
        USERS_LOCK.readLock().lock();
        try {
            return this.users.get(username);
        } finally {
            USERS_LOCK.readLock().unlock();
        }
    }

代码就很简单了,就是从users中取出相应的用户数据。接下来要分析清几个概念:
AuthorizationInfo、AuthenticationInfo、SimpleAccount、SimpleRole、PrincipalCollection。
PrincipalCollection:看下文档介绍

引用

/**
* A collection of all principals associated with a corresponding { @link Subject Subject}.  A <em>principal</em> is
* just a security term for an identifying attribute, such as a username or user id or social security number or
* anything else that can be considered an 'identifying' attribute for a { @code Subject}.
* <p/>
* A PrincipalCollection organizes its internal principals based on the { @code Realm} where they came from when the
* Subject was first created.  To obtain the principal(s) for a specific Realm, see the { @link #fromRealm} method.  You
* can also see which realms contributed to this collection via the { @link #getRealmNames() getRealmNames()} method.
*/

一个principal仅仅是Subject的一个标识而已,如可以是用户名,用户id等。PrincipalCollection则是这些属性的集合。每个用户属性可以来自不同的Realm。Collection fromRealm(String realmName)可以获取某个Realm的所有用户属性。Set<String> getRealmNames()可以获取到与Subject关联的用户的属性来自于哪些Realm。
Object getPrimaryPrincipal():主要是用于获取唯一标示,如UUID、username等。
接口如下:



MutablePrincipalCollection如下:
public interface MutablePrincipalCollection extends PrincipalCollection {
    void add(Object principal, String realmName);
    void addAll(Collection principals, String realmName);
    void addAll(PrincipalCollection principals);
    void clear();
}

我们知道每一个标示都有所属的realm,所以再添加的时候,要带上realmName。
SimplePrincipalCollection:

private Map<String, Set> realmPrincipals;

一个重要的数据集合,key是realm的name,value是principal集合。
这个接口分支一直在强调,每个principal都是有所属的realm的。
PrincipalMap:我这一块没有搞明白,先放下。

AuthenticationInfo 它是含有用户和密码信息的地方:

public interface AuthenticationInfo extends Serializable {
    PrincipalCollection getPrincipals();
    Object getCredentials();
}

AuthorizationInfo :存放用户权限的地方
public interface AuthorizationInfo extends Serializable {
    Collection<String> getRoles();
    Collection<String> getStringPermissions();
    Collection<Permission> getObjectPermissions();
}

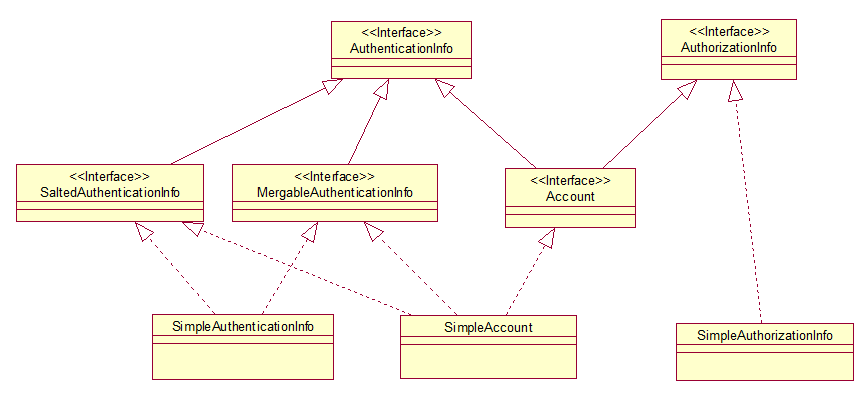

类图如下:

MergableAuthenticationInfo 意味着AuthenticationInfo可以进行合并:
public interface MergableAuthenticationInfo extends AuthenticationInfo {
    void merge(AuthenticationInfo info);
}

SaltedAuthenticationInfo 主要用于密码匹配,后续文章专门说明:
public interface SaltedAuthenticationInfo extends AuthenticationInfo {
    ByteSource getCredentialsSalt();
}

SimpleAuthenticationInfo:存储了三个重要的属性:
protected PrincipalCollection principals;
    protected Object credentials;
    protected ByteSource credentialsSalt;

然后就是实现了MergableAuthenticationInfo 接口,可以进行合并,这里的合并在第一篇文章中Realm认证中提到过:
public void merge(AuthenticationInfo info) {
        if (info == null || info.getPrincipals() == null || info.getPrincipals().isEmpty()) {
            return;
        }

        if (this.principals == null) {
            this.principals = info.getPrincipals();
        } else {
            if (!(this.principals instanceof MutablePrincipalCollection)) {
                this.principals = new SimplePrincipalCollection(this.principals);
            }
            ((MutablePrincipalCollection) this.principals).addAll(info.getPrincipals());
        }

        //only mess with a salt value if we don't have one yet.  It doesn't make sense
        //to merge salt values from different realms because a salt is used only within
        //the realm's credential matching process.  But if the current instance's salt
        //is null, then it can't hurt to pull in a non-null value if one exists.
        //
        //since 1.1:
        if (this.credentialsSalt == null && info instanceof SaltedAuthenticationInfo) {
            this.credentialsSalt = ((SaltedAuthenticationInfo) info).getCredentialsSalt();
        }

        Object thisCredentials = getCredentials();
        Object otherCredentials = info.getCredentials();

        if (otherCredentials == null) {
            return;
        }

        if (thisCredentials == null) {
            this.credentials = otherCredentials;
            return;
        }

        if (!(thisCredentials instanceof Collection)) {
            Set newSet = new HashSet();
            newSet.add(thisCredentials);
            setCredentials(newSet);
        }

        // At this point, the credentials should be a collection
        Collection credentialCollection = (Collection) getCredentials();
        if (otherCredentials instanceof Collection) {
            credentialCollection.addAll((Collection) otherCredentials);
        } else {
            credentialCollection.add(otherCredentials);
        }
    }

主要分principals、credentialsSalt 和credentials三项的合并,代码也和简单。
SimpleAuthorizationInfo:存放了认证用户的角色和用户权限。

protected Set<String> roles;
protected Set<String> stringPermissions;
protected Set<Permission> objectPermissions;

最重要的就是SimpleAccount:
public class SimpleAccount implements Account, MergableAuthenticationInfo, SaltedAuthenticationInfo, Serializable {
    private SimpleAuthenticationInfo authcInfo;
    private SimpleAuthorizationInfo authzInfo;
    private boolean locked;
    private boolean credentialsExpired;
}

它有SimpleAuthenticationInfo 、SimpleAuthorizationInfo ,所以是用户认证信息和权限信息的汇总。
还有两个属性locked和credentialsExpired,用来表示用户的锁定和密码过期的状态。
至此整个SimpleAccount便介绍完了。

回到SimpleAccountRealm,SimpleAccountRealm已经拥有Map<String, SimpleAccount> users和Map<String, SimpleRole> roles数据了,但是这些数据是怎么产生的呢?这就需要交给它的子类TextConfigurationRealm来完成:

private volatile String userDefinitions;
private volatile String roleDefinitions;

仅仅两个字符串包含了所有的用户和角色的配置总来源。所以TextConfigurationRealm主要就是对这两个字符串的解析:
@Override
protected void onInit() {
        super.onInit();
        processDefinitions();
    }
protected void processDefinitions() {
        try {
          //解析角色配置
            processRoleDefinitions();
         //解析用户配置
            processUserDefinitions();
        } catch (ParseException e) {
            String msg = "Unable to parse user and/or role definitions.";
            throw new ConfigurationException(msg, e);
        }
    }
protected void processRoleDefinitions() throws ParseException {
        String roleDefinitions = getRoleDefinitions();
        if (roleDefinitions == null) {
            return;
        }
        //先将角色字符串按行分割,然后每行再按照key value分割
        Map<String, String> roleDefs = toMap(toLines(roleDefinitions));
        processRoleDefinitions(roleDefs);
    }
protected void processRoleDefinitions(Map<String, String> roleDefs) {
        if (roleDefs == null || roleDefs.isEmpty()) {
            return;
        }
        for (String rolename : roleDefs.keySet()) {
            String value = roleDefs.get(rolename);

            SimpleRole role = getRole(rolename);
            if (role == null) {
                role = new SimpleRole(rolename);
                add(role);
            }

            Set<Permission> permissions = PermissionUtils.resolveDelimitedPermissions(value, getPermissionResolver());
            role.setPermissions(permissions);
        }
    }

再通过PermissionResolver将字符串形式的权限转化成Permission对象,知道大致情况了,就可以了,不需要每一步都弄清楚。
TextConfigurationRealm主要用于解析两个配置字符串,这两个配置字符串的产生则继续交给子类来完成。IniRealm则是通过ini配置文件来产生这两个字符串,PropertiesRealm则是通过properties文件来产生这两个字符串。

至此,SimpleAccountRealm这一路就大致走通了,接下来就是另一条路JdbcRealm了。

public class JdbcRealm extends AuthorizingRealm {
    protected static final String DEFAULT_AUTHENTICATION_QUERY = "select password from users where username = ?";
    protected static final String DEFAULT_SALTED_AUTHENTICATION_QUERY = "select password, password_salt from users where username = ?";
    protected static final String DEFAULT_USER_ROLES_QUERY = "select role_name from user_roles where username = ?";
    protected static final String DEFAULT_PERMISSIONS_QUERY = "select permission from roles_permissions where role_name = ?";
    protected DataSource dataSource;
}

首先是含有这几个默认的sql和DataSource dataSource,用于从数据库中获取相应的用户、角色、权限等数据。
根据上一篇文章我们知道JdbcRealm 要实现AuthenticatingRealm遗留的AuthenticationInfo doGetAuthenticationInfo和AuthorizingRealm遗留的AuthorizationInfo doGetAuthorizationInfo。下面就看看是怎么来实现的:

protected AuthenticationInfo doGetAuthenticationInfo(AuthenticationToken token) throws AuthenticationException {

        UsernamePasswordToken upToken = (UsernamePasswordToken) token;
        String username = upToken.getUsername();

        // Null username is invalid
        if (username == null) {
            throw new AccountException("Null usernames are not allowed by this realm.");
        }

        Connection conn = null;
        SimpleAuthenticationInfo info = null;
        try {
            conn = dataSource.getConnection();

            String password = null;
            String salt = null;
            switch (saltStyle) {
            case NO_SALT:
                //根据用户名去查找密码
                password = getPasswordForUser(conn, username)[0];
                break;
            case CRYPT:
                // TODO: separate password and hash from getPasswordForUser[0]
                throw new ConfigurationException("Not implemented yet");
                //break;
            case COLUMN:
                String[] queryResults = getPasswordForUser(conn, username);
                password = queryResults[0];
                salt = queryResults[1];
                break;
            case EXTERNAL:
                password = getPasswordForUser(conn, username)[0];
                 //此时salt不存在数据库中,默认的值为username
                salt = getSaltForUser(username);
            }

            if (password == null) {
                throw new UnknownAccountException("No account found for user [" + username + "]");
            }
            //根据用户名、密码、盐值构建一个SimpleAuthenticationInfo
            info = new SimpleAuthenticationInfo(username, password.toCharArray(), getName());

            if (salt != null) {
                info.setCredentialsSalt(ByteSource.Util.bytes(salt));
            }

        } catch (SQLException e) {
            final String message = "There was a SQL error while authenticating user [" + username + "]";
            if (log.isErrorEnabled()) {
                log.error(message, e);
            }

            // Rethrow any SQL errors as an authentication exception
            throw new AuthenticationException(message, e);
        } finally {
            JdbcUtils.closeConnection(conn);
        }

        return info;
    }
private String[] getPasswordForUser(Connection conn, String username) throws SQLException {

        String[] result;
        boolean returningSeparatedSalt = false;
        switch (saltStyle) {
        case NO_SALT:
        case CRYPT:
        case EXTERNAL:
            result = new String[1];
            break;
        default:
            result = new String[2];
            returningSeparatedSalt = true;
        }

        PreparedStatement ps = null;
        ResultSet rs = null;
        try {
            ps = conn.prepareStatement(authenticationQuery);
            ps.setString(1, username);

            // Execute query
            rs = ps.executeQuery();

            // Loop over results - although we are only expecting one result, since usernames should be unique
            boolean foundResult = false;
            while (rs.next()) {

                // Check to ensure only one row is processed
                if (foundResult) {
                    throw new AuthenticationException("More than one user row found for user [" + username + "]. Usernames must be unique.");
                }

                result[0] = rs.getString(1);
                if (returningSeparatedSalt) {
                    result[1] = rs.getString(2);
                }

                foundResult = true;
            }
        } finally {
            JdbcUtils.closeResultSet(rs);
            JdbcUtils.closeStatement(ps);
        }

        return result;
    }
protected String getSaltForUser(String username) {
        return username;
    }

代码很简单就不再一一细说。再看下doGetAuthorizationInfo是怎么实现的:
protected AuthorizationInfo doGetAuthorizationInfo(PrincipalCollection principals) {

        //null usernames are invalid
        if (principals == null) {
            throw new AuthorizationException("PrincipalCollection method argument cannot be null.");
        }

        String username = (String) getAvailablePrincipal(principals);

        Connection conn = null;
        Set<String> roleNames = null;
        Set<String> permissions = null;
        try {
            conn = dataSource.getConnection();

            // Retrieve roles and permissions from database
            roleNames = getRoleNamesForUser(conn, username);
            if (permissionsLookupEnabled) {
                permissions = getPermissions(conn, username, roleNames);
            }

        } catch (SQLException e) {
            final String message = "There was a SQL error while authorizing user [" + username + "]";
            if (log.isErrorEnabled()) {
                log.error(message, e);
            }

            // Rethrow any SQL errors as an authorization exception
            throw new AuthorizationException(message, e);
        } finally {
            JdbcUtils.closeConnection(conn);
        }

        SimpleAuthorizationInfo info = new SimpleAuthorizationInfo(roleNames);
        info.setStringPermissions(permissions);
        return info;

    }

第一步先根据PrincipalCollection 来获取用户名,第二步根据用户名来获取角色,第三部根据角色和用户名来获取权限。后两步都是执行简单的sql,不再说,看下如何由PrincipalCollection 获取用户名,该方法定义在CachingRealm中:
protected Object getAvailablePrincipal(PrincipalCollection principals) {
        Object primary = null;
        if (!CollectionUtils.isEmpty(principals)) {
            Collection thisPrincipals = principals.fromRealm(getName());
            if (!CollectionUtils.isEmpty(thisPrincipals)) {
                primary = thisPrincipals.iterator().next();
            } else {
                //no principals attributed to this particular realm.  Fall back to the 'master' primary:
                primary = principals.getPrimaryPrincipal();
            }
        }

        return primary;
    }

两种情况,首先是获取当前Realm的Principals,如果有取其第一个。如果没有,则调用getPrimaryPrincipal()方法。然后看下JdbcRealm的一个简单使用:
如果默认按照JdbcRealm的sql来作为数据库的查询来说,建表如下:
users表:

CREATE TABLE `users` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(45) NOT NULL,
  `password` varchar(45) NOT NULL,
  `password_salt` varchar(45) DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `username_UNIQUE` (`username`)
) ENGINE=InnoDB AUTO_INCREMENT=4 DEFAULT CHARSET=utf8;

user_roles表:
CREATE TABLE `user_roles` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(45) DEFAULT NULL,
  `role_name` varchar(45) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=7 DEFAULT CHARSET=utf8;

roles_permissions表:
CREATE TABLE `roles_permissions` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `role_name` varchar(45) DEFAULT NULL,
  `permission` varchar(45) DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

文章最后会给出数据库sql文件。
然后就是配置ini文件:

[main]
#realm
dataSource=com.mchange.v2.c3p0.ComboPooledDataSource
dataSource.driverClass=com.mysql.jdbc.Driver
dataSource.jdbcUrl=jdbc:mysql://localhost:3306/shiro
dataSource.user=root
dataSource.password=XXXXXX
jdbcRealm=org.apache.shiro.realm.jdbc.JdbcRealm
jdbcRealm.dataSource=$dataSource
jdbcRealm.permissionsLookupEnabled=true
securityManager.realms=$jdbcRealm

使用的dataSource是c3p0的dataSource,mysql驱动也是必然不能少的,所以maven中要加入依赖:
<!-- mysql驱动 -->
	<dependency>
		<groupId>mysql</groupId>
		<artifactId>mysql-connector-java</artifactId>
		<version>5.1.29</version>
	</dependency>

	<!-- 连接池 -->
	<dependency>
		<groupId>c3p0</groupId>
		<artifactId>c3p0</artifactId>
		<version>0.9.1.2</version>
	</dependency>

为了输出方便代码更改为:
public class ShiroTest {

	@Test
	public void testHelloworld() {
		init();

		Subject subject=login("lg","123");
		System.out.println(subject.hasRole("role1"));
		System.out.println(subject.hasRole("role2"));
		System.out.println(subject.hasRole("role3"));
	}

	private Subject login(String userName,String password){
		 //3、得到Subject及创建用户名/密码身份验证Token(即用户身份/凭证)
	    Subject subject = SecurityUtils.getSubject();
	    UsernamePasswordToken token = new UsernamePasswordToken(userName,password);
	    subject.login(token);
	    return subject;
	}

	private void init(){
		 //1、获取SecurityManager工厂,此处使用Ini配置文件初始化SecurityManager
	    Factory<org.apache.shiro.mgt.SecurityManager> factory =
	            new IniSecurityManagerFactory("classpath:shiro.ini");
	    //2、得到SecurityManager实例 并绑定给SecurityUtils
	    org.apache.shiro.mgt.SecurityManager securityManager = factory.getInstance();
	    SecurityUtils.setSecurityManager(securityManager);
	}
}

对于lg用户,在数据库中它是有两个角色的,role1和role2。所以结果为true、true、false。
true
true
false


OK,通过。最后附上JdbcRealm的使用例子。


作者:乒乓狂魔

© 著作权归作者所有

共有 人打赏支持
乒乓狂魔
粉丝 994
博文 105
码字总数 271356
作品 0
长宁
程序员
Shiro源码分析-初始化-Realm

在上一篇介绍SecurityManager的初始化过程中,也有realm的粗略介绍。 realm的概念在安全领域随处可见: 各种中间件的realm、spring security的realm、shiro的realm。。。如下: tomcat的rea...

Dead_knight
2014/04/08
0
0
Apache Shiro框架认识

1.1 简介 Apache Shiro是Java的一个安全框架。目前,使用Apache Shiro的人越来越多,因为它相当简单,对比Spring Security,可能没有Spring Security做的功能强大,但是在实际工作时可能并不...

tsmyk0715
2016/11/23
89
0
跟我学Shiro

1.1 简介 Apache Shiro是Java的一个安全框架。目前,使用Apache Shiro的人越来越多,因为它相当简单,对比Spring Security,可能没有Spring Security做的功能强大,但是在实际工作时可能并不...

kevin728971010
2016/10/25
122
0
第一章 Shiro简介——《跟我学Shiro》

1.1 简介 Apache Shiro是Java的一个安全框架。目前,使用Apache Shiro的人越来越多,因为它相当简单,对比Spring Security,可能没有Spring Security做的功能强大,但是在实际工作时可能并不...

真爱2015
2015/12/15
87
0
第一章 Shiro简介——跟我学习springmvc shiro mybatis

1.1 简介 Apache Shiro是Java的一个安全框架。目前,使用Apache Shiro的人越来越多,因为它相当简单,对比Spring Security,可能没有Spring Security做的功能强大,但是在实际工作时可能并不...

CPU滴
2017/06/14
0
0

没有更多内容

加载失败,请刷新页面

加载更多

Python介绍

Python介绍 一、简介 Python是完全面向对象的语言。函数、模块、数字、字符串都是对象。并且完全支持继承、重载等,有益于增强源代码的复用性。Python相对于Lisp这种传统的函数式编程语言,P...

星汉
11分钟前
0
0
VS_设置护眼背景色

工具---->选项---->环境---->字体和颜色:

一个小妞
14分钟前
0
0
Flask跨域请求的处理方法

在Flask开发RESTful后端时,前端请求会遇到跨域的问题。下面是解决方法: 使用 flask-cors库可以很容易的解决 pip install flask-cors 两种方法,一个是全局/批量的,一个是单一独立的: 安全...

ykbj
14分钟前
1
0
Pandas学习记录-Series

系列(Series)是能够保存任何类型的数据(整数,字符串,浮点数,Python对象等)的一维标记数组。轴标签统称为索引。 pandas.Series Pandas系列可以使用以下构造函数创建 - pandas.Series( dat...

kipeng300
22分钟前
0
0
可以实现内网穿透的几款工具

最近没什么事情,看了一些关于内网穿透的文章,因我本身已是做微信开发相关的工作,对这部分关注的比较多,现分享给大家。 首先说下内网穿透的原理。 NAPT原理 在NAT网关上会有一张映射表,表...

哥本哈根的小哥
23分钟前
18
0

没有更多内容

加载失败,请刷新页面

加载更多

返回顶部
顶部
