Docker 组件

1. docker client : docker的客户端

2. docker server : docker daemon的主要组成部分,接受用户通过docker client发送的请求,并按照响应的路由规则实时路由分发。

3. docker image : docker镜像运行之后变成容器 (docker run),启动快,采用了分层模式。

4.docker Registry: registry是 docker镜像的中央存储仓库(pull/push)



docker 使用yum 安装最新版

复制代码

[root@docker1 yum.repos.d]# cat docker.repo
[dockerrepo]
name=Docker Repository
baseurl=https://yum.dockerproject.org/repo/main/centos/7
enabled=1
gpgcheck=1
gpgkey=https://yum.dockerproject.org/gpg

复制代码



docker 安装

[root@docker1 ~]# yum -y install docker-engine

启动docker
[root@docker1 ~]# systemctl start docker.service
[root@docker1 ~]# systemctl enable docker.service



使用dockerfile 生成docker镜像, 从docker.io 下载镜像。

复制代码

搜索centos镜像
[root@docker1 ~]#docker search  centos

pull centos镜像
[root@docker1 ~]#docker pull centos

查看下载的镜像
[root@docker1 ~]# docker images
REPOSITORY    TAG    IMAGE ID            CREATED             SIZE

centos          latest   67591570dd29      7 weeks ago         192 MB

复制代码





[root@docker1 ~]# git clone https://git.oschina.net/dockerf/docker-training.git
[root@docker1 ~]# ls
docker-training

[root@docker1 ~]# cd docker-training
[root@docker1 docker-training]# ls

centos7 mysql php-fpm wordpress 4个目录
构建一个 centos7 php-fpm mysql wordpress 的docker镜像

[root@docker1 centos7]# ls
1.repo Centos-7.repo Dockerfile supervisord.conf

Dockerfile 是一个自动构建docker镜像的配置文件,

复制代码

[root@docker1 centos7]# cat Dockerfile
#需要一个基础镜像,centos7.1.1503 是从docker上pull下来
#FROM       centos:centos7.1.1503
FROM       centos:latest

#维护者
MAINTAINER fengjian <fengjian@senyint.com>
#设置一个时区的环境变量
ENV TZ "Asia/Shanghai"
#虚拟终端
ENV TERM xterm

#dockerfile中有2条命令可以复制文件,1.copy 2.add, add比copy多2个功能,可以写成连接 直接copy到container,如果是压缩文件,add能自动解压
ADD Centos-7.repo /etc/yum.repos.d/CentOS-Base.repo
ADD 1.repo /etc/yum.repos.d/epel.repo

RUN yum install -y curl wget tar bzip2 libtool-ltdl-devel unzip vim-enhanced passwd sudo yum-utils hostname net-tools rsync man && \ yum install -y gcc gcc-c++ git make automake cmake patch logrotate python-devel libpng-devel libjpeg-devel && \ yum install -y python-pip #RUN pip install --upgrade pip
#supervisor 进程管理工具,运行单个进程可以不使用
RUN pip install -i https://pypi.tuna.tsinghua.edu.cn/simple  supervisor
ADD supervisord.conf /etc/supervisord.conf

#/etc/supervisor.conf.d 存放启动进程的配置文件
RUN mkdir -p /etc/supervisor.conf.d && \
    mkdir -p /var/log/supervisor

#container想暴露22端口给宿主机
EXPOSE 22
#最后一条ENTRYPOINT 才能生效
ENTRYPOINT ["/usr/bin/supervisord", "-n", "-c", "/etc/supervisord.conf"]

复制代码



1

2

3

4

5

6

[root@docker1 centos7]# cat 1.repo

[bash]

name=centos7

baseurl=http://192.168.20.220/centos7/Packages/

enabled=1

gpgcheck=0



复制代码

[root@docker1 centos7]# cat Centos-7.repo
# CentOS-Base.repo
#
# The mirror system uses the connecting IP address of the client and the
# update status of each mirror to pick mirrors that are updated to and
# geographically close to the client.  You should use this for CentOS updates
# unless you are manually picking other mirrors.
#
# If the mirrorlist= does not work for you, as a fall back you can try the
# remarked out baseurl= line instead.
#
#

[base]
name=CentOS-$releasever - Base - mirrors.aliyun.com
failovermethod=priority
baseurl=http://mirrors.aliyun.com/centos/$releasever/os/$basearch/
        http://mirrors.aliyuncs.com/centos/$releasever/os/$basearch/
#mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=os
gpgcheck=1
gpgkey=http://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-7

#released updates
[updates]
name=CentOS-$releasever - Updates - mirrors.aliyun.com
failovermethod=priority
baseurl=http://mirrors.aliyun.com/centos/$releasever/updates/$basearch/
        http://mirrors.aliyuncs.com/centos/$releasever/updates/$basearch/
#mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=updates
gpgcheck=1
gpgkey=http://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-7

#additional packages that may be useful
[extras]
name=CentOS-$releasever - Extras - mirrors.aliyun.com
failovermethod=priority
baseurl=http://mirrors.aliyun.com/centos/$releasever/extras/$basearch/
        http://mirrors.aliyuncs.com/centos/$releasever/extras/$basearch/
#mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=extras
gpgcheck=1
gpgkey=http://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-7

#additional packages that extend functionality of existing packages
[centosplus]
name=CentOS-$releasever - Plus - mirrors.aliyun.com
failovermethod=priority
baseurl=http://mirrors.aliyun.com/centos/$releasever/centosplus/$basearch/
        http://mirrors.aliyuncs.com/centos/$releasever/centosplus/$basearch/
#mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=centosplus
gpgcheck=1
enabled=0
gpgkey=http://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-7

#contrib - packages by Centos Users
[contrib]
name=CentOS-$releasever - Contrib - mirrors.aliyun.com
failovermethod=priority
baseurl=http://mirrors.aliyun.com/centos/$releasever/contrib/$basearch/
        http://mirrors.aliyuncs.com/centos/$releasever/contrib/$basearch/
#mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=contrib
gpgcheck=1
enabled=0
gpgkey=http://mirrors.aliyun.com/centos/RPM-GPG-KEY-CentOS-7

复制代码

复制代码

[root@docker1 centos7]# cat supervisord.conf
[unix_http_server]
file=/var/run/supervisor.sock ; (the path to the socket file)
chmod=0700              ; socket file mode (default 0700)

[supervisord]
logfile=/var/log/supervisor/supervisord.log ; (main log file;default $CWD/supervisord.log)
logfile_maxbytes=50MB
logfile_backup=10
loglevel=info
pidfile=/var/run/supervisord.pid ; (supervisord pidfile;default supervisord.pid)
nodaemon=true           ; (Start in foreground if true; default false)
minfds=1024                 ; (min. avail startup file descriptors;default 1024)
minprocs=200                ; (min. avail process descriptors;default 200)

[rpcinterface:supervisor]
supervisor.rpcinterface_factory = supervisor.rpcinterface:make_main_rpcinterface

[supervisorctl]
serverurl=unix:///var/run/supervisor.sock ; use a unix:// URL  for a unix socket

[include]
files = /etc/supervisor.conf.d/*.conf

复制代码



从docker.io 下载centos,根据dockerfile 生成docker镜像,
[root@docker1 centos7]# docker build -t fengjian/centos:7.3  .


查看生成的镜像

[root@docker1 centos7]#  docker images

REPOSITORY             TAG                 IMAGE ID            CREATED             SIZE
fengjian/centos         7.1                 03a49ca4b7b9        13 days ago         667.8 MB



通过docker镜像 生成docker 容器。 docker run命令

-p 小写, container 端口,指定到宿主机的端口

-P  大写, container的 端口,映射到宿主机的 随机端口

生成docker 容器

[root@docker1 ~]#docker run -d -p 2222:22 --name base fengjian/centos:7.3

查看容器信息

[root@docker1 ~]#docker ps -a

[root@docker1 ~]# docker ps -a
CONTAINER ID        IMAGE                COMMAND                  CREATED              STATUS              PORTS                            NAMES
ebce60d09d31        fengjian/centos:7.1   "/usr/bin/supervisord"   About a minute ago   Up About a minute   2222/tcp, 0.0.0.0:2222->22/tcp   base



进入docker container中
[root@docker1 ~]# docker exec -it ebce60d09d31 /bin/bash



制作php-fpm的镜像

[root@docker1 php-fpm]# ls
Dockerfile  nginx_default.conf  nginx_nginx.conf  php_www.conf  supervisor_nginx.conf  supervisor_php-fpm.conf

复制代码

[root@docker1 php-fpm]# vim Dockerfile


FROM       fengjian/centos:7.3
MAINTAINER fengjian <fengjian@senyint.com>

# Set environment variable
ENV     APP_DIR /app

RUN     yum -y swap -- remove fakesystemd -- install systemd systemd-libs && \
        yum -y install nginx php-cli php-mysql php-pear php-ldap php-mbstring php-soap php-dom php-gd php-xmlrpc php-fpm php-mcrypt && \
        yum clean all

ADD     nginx_nginx.conf /etc/nginx/nginx.conf
ADD     nginx_default.conf /etc/nginx/conf.d/default.conf

ADD     php_www.conf /etc/php-fpm.d/www.conf
RUN     sed -i 's/;cgi.fix_pathinfo=1/cgi.fix_pathinfo=0/' /etc/php.ini

RUN     mkdir -p /app && echo "<?php phpinfo(); ?>" > ${APP_DIR}/info.php

EXPOSE  80 443

ADD     supervisor_nginx.conf /etc/supervisor.conf.d/nginx.conf
ADD     supervisor_php-fpm.conf /etc/supervisor.conf.d/php-fpm.conf

ONBUILD ADD . /app
ONBUILD RUN chown -R nginx:nginx /app

复制代码



复制代码

[root@docker1 php-fpm]# vim supervisor_nginx.conf

[program:nginx]
directory=/
command=/usr/sbin/nginx -c /etc/nginx/nginx.conf
user=root
autostart=true
autorestart=true
stdout_logfile=/var/log/supervisor/%(program_name)s.log
stderr_logfile=/var/log/supervisor/%(program_name)s.log


[program:php-fpm]
directory=/
command=/usr/sbin/php-fpm
user=root
autostart=true
autorestart=true
stdout_logfile=/var/log/supervisor/%(program_name)s.log
stderr_logfile=/var/log/supervisor/%(program_name)s.log

复制代码



创建php-fpm的 镜像

[root@docker1 php-fpm]# docker build -t fengjian/php-fpm:5.4  .

启动一个container

[root@docker1 php-fpm]# docker run -d -p 8080:80 --name wesite fengjian/php-fpm:5.4



访问宿主机的 8080端口

http://192.168.20.209:8080/info.php



创建mysql镜像

[root@docker1 mysql]# docker build -t fengjian/mysql:5.5 .

###docker run -d -p 3306:3306 -v host_dir:container_dir   -v参数是映射container路径到宿主机上###########

[root@docker1 mysql]# docker run -d -p 3306:3306 -v  /data/mysql/data:/var/lib/mysql  --name dbserver fengjian/mysql:5.5



宿主机上的/data/mysql/data目录文件

复制代码

[root@docker1 data]# ll /data/mysql/data/
total 28700
-rw-rw---- 1 27   27    16384 Jan 19 15:25 aria_log.00000001
-rw-rw---- 1 27   27       52 Jan 19 15:25 aria_log_control
drwx------ 2 27   27       19 Jan 19 15:40 fengjian
-rw-rw---- 1 27   27 18874368 Jan 19 15:25 ibdata1
-rw-rw---- 1 27   27  5242880 Jan 19 15:26 ib_logfile0
-rw-rw---- 1 27   27  5242880 Jan 19 15:25 ib_logfile1
drwx------ 2 27 root     4096 Jan 19 15:25 mysql
srwxrwxrwx 1 27   27        0 Jan 19 15:26 mysql.sock
drwx------ 2 27   27     4096 Jan 19 15:25 performance_schema
drwx------ 2 27 root        6 Jan 19 15:25 test
[root@docker1 data]#

复制代码



 删除container后, 在生成新的container 数据还可以继续使用。
[root@docker1 data]#  docker rm -f dbserver (删除)
[root@docker1 data]#  docker run -d -p 3306:3306 -v /data/mysql/data:/var/lib/mysql --name newmysqldb  fengjian/mysql:5.5






构建动态网站wordpress, 使用php-fpm镜像

[root@docker1 wordpress]# ls
Dockerfile  init.sh      readme.html      wp-admin            wp-comments-post.php  wp-content   wp-includes        wp-load.php   wp-mail.php      wp-signup.php     xmlrpc.php
index.php   license.txt  wp-activate.php  wp-blog-header.php  wp-config-sample.php  wp-cron.php  wp-links-opml.php  wp-login.php  wp-settings.php  wp-trackback.php



复制代码

[root@docker1 wordpress]# vim Dockerfile
from fengjian/php-fpm:5.4

add init.sh /init.sh

entrypoint ["/init.sh", "/usr/bin/supervisord", "-n", "-c", "/etc/supervisord.conf"]
#先执行 /init.sh脚本, 然后再执行后面的服务,其实是启动了nginx 和php-fpm

复制代码



父镜像php-fpm 的Dockerfile最后两行

ONBUILD ADD . /app
ONBUILD RUN chown -R nginx:nginx /app

ONBUILD 在构建 wordpress 的时候生效

所有的代码文件全部copy到/app下, 但是Dockerfile没有作用,所以 可以在目录下新建一个.dockerignore, 排除Dockerfile

[root@docker1 wordpress]# vim .dockerignore

Dockerfile

创建wordpress镜像,版本4.2

[root@docker1 wordpress]# docker build -t fengjian/wordpress:4.2  .



查看镜像

复制代码

[root@docker1 wordpress]# docker images
REPOSITORY             TAG                 IMAGE ID            CREATED             SIZE
fengjian/wordpress      4.2                 8591f07cc2e2        15 seconds ago      848.4 MB
fengjian/mysql          5.5                 b54f78aeefb8        21 hours ago        848.2 MB
fengjian/php-fpm        5.4                 fc1856e25486        21 hours ago        810.8 MB
fengjian/centos         7.1                 fbafb1b36c30        21 hours ago        712.8 MB
tomcat                 latest              47bd812c12f6        5 weeks ago         355.2 MB
mysql                  latest              594dc21de8de        5 weeks ago         400.1 MB
centos                 centos7.1.1503      285396d0a019        4 months ago        212.1 MB
centos                 centos7.1.1503      285396d0a019        4 months ago        212.1 MB
kubeguide/tomcat-app   v1                  a29e200a18e9        6 months ago        358.2 MB

复制代码



启动一个容器, 使用-e 参数,传递环境变量,WORDPRESS_DB_HOST是在init.sh 脚本中定义的

[root@docker1 wordpress]# docker run -d -p 80:80 --name wordpress  -e WORDPRESS_DB_HOST=192.168.20.209 -e WORDPRESS_DB_USER=fengjian -e WORDPRESS_DB_PASSWORD=123456 fengjian/wordpress:4.2






访问ip的80端口





复制代码

ENTRYPOINT  与  CMD 命令区别

运行一个Docker容器像运行一个程序一样,如果写了10条,只有最后一条生效。

1. ENTRYPOINT ["executable","param1","param2"]
2. ENTRPOINT command param1 param2 (shell from)

docker run -it -entrypoint=覆盖 Dockerfile ENTRYPOINT[]


CMD 用法
1.CMD["executable","param1","param2"]  (exec from , this is the preferred form)
第一种用法:运行一个可执行的文件并提供参数

2.CMD [“param1”,"param2"] (as default parameters to ENTRYPOINT)
第二种用法: 为ENTRPOINT指定参数

3.CMD command param1 param2 (sehll form)
第三种用法(shell form): 是以"/bin/sh -c" 的方法执行的命令

例子:
CMD ["/bin/echo","This is test CMD"]
docker run -it -rm fengjian/cmd:0.1 /bin/bash

复制代码



#################################################################################################

第二docker 实战之 Registry 以及持续集成



构建一个企业内部的registry

docker1: 192.168.20.209

registry: 192.168.20.135  5000端口



[root@registry ~]# docker search registry



再次把registry pull到本地

复制代码

[root@registry ~]# docker pull registry
Using default tag: latest
latest: Pulling from library/registry
b7f33cc0b48e: Pull complete
46730e1e05c9: Pull complete
458210699647: Pull complete
0cf045fea0fd: Pull complete
b78a03aa98b7: Pull complete
Digest: sha256:0e40793ad06ac099ba63b5a8fae7a83288e64b50fe2eafa2b59741de85fd3b97
Status: Downloaded newer image for registry:latest

复制代码



查看docker1 192.168.20.209  镜像

复制代码

[root@docker1 ~]# docker images
REPOSITORY             TAG                 IMAGE ID            CREATED             SIZE
fengjian/wordpress      4.2                 8591f07cc2e2        2 days ago          848.4 MB
fengjian/mysql          5.5                 b54f78aeefb8        3 days ago          848.2 MB
fengjian/php-fpm        5.4                 fc1856e25486        3 days ago          810.8 MB
fengjian/centos         7.1                 fbafb1b36c30        3 days ago          712.8 MB
registry               latest              d1e32b95d8e8        4 days ago          33.17 MB
tomcat                 latest              47bd812c12f6        5 weeks ago         355.2 MB
mysql                  latest              594dc21de8de        5 weeks ago         400.1 MB
centos                 centos7.1.1503      285396d0a019        4 months ago        212.1 MB
centos                 centos7.1.1503      285396d0a019        4 months ago        212.1 MB

复制代码



查看registry 192.168.20.135  镜像

[root@registry ~]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
registry            latest              d1e32b95d8e8        2 weeks ago         33.2 MB



registry启动一个 registry的容器

[root@registry ~]# docker run -d -p 5000:5000 -v /opt/registry:/var/lib/registry -p 5000:5000 --restart=always --name registry registry:latest



Registry服务默认会将上传的镜像保存在容器的/var/lib/registry,我们将主机的/opt/registry目录挂载到该目录,即可实现将镜像保存到主机的/opt/registry目录了。

registry_url: 启动的registry,本地registry:5000地址

namespace : 指定目录

name: 镜像的名字



registry_url/namespace/tomcat:v1.0

通过 docker tag 可以为容器打一个标记,类似于别名的作用,



1

[root@docker1 ~] docker pull fengjian/fengjian

1

对fengjian 打标记成 192.168.20.209:5000/fengjian/fengjian/fengjian:20170122v1.0

1

[root@docker1 ~]# docker tag fengjian/fengjian:latest  192.168.20.135:5000/fengjian/fengjian/fengjian:20170122v1.0

   查看镜像

1

2

3

4

5

6

7

8

9

10

11

12

13

14

[root@docker1 ~]# docker images

REPOSITORY                                    TAG                 IMAGE ID            CREATED             SIZE

fengjian/wordpress                             4.2                 8591f07cc2e2        2 days ago          848.4 MB

fengjian/mysql                                 5.5                 b54f78aeefb8        3 days ago          848.2 MB

fengjian/php-fpm                               5.4                 fc1856e25486        3 days ago          810.8 MB

fengjian/centos                                7.1                 fbafb1b36c30        3 days ago          712.8 MB

registry                                      latest              d1e32b95d8e8        4 days ago          33.17 MB

tomcat                                        latest              47bd812c12f6        5 weeks ago         355.2 MB

mysql                                         latest              594dc21de8de        5 weeks ago         400.1 MB

centos                                        centos7.1.1503      285396d0a019        4 months ago        212.1 MB

centos                                        centos7.1.1503      285396d0a019        4 months ago        212.1 MB

kubeguide/tomcat-app                          v1                  a29e200a18e9        6 months ago        358.2 MB

192.168.20.135:5000/fengjian/fengjian/fengjian   20170122v1.0        3468c34fa83b        13 months ago       97.95 MB

fengjian/fengjian                               latest              3468c34fa83b        13 months ago       97.95 MB<br><br><br>运行docker push将hello-world镜像push到我们的私有仓库中

  [root@docker ~]# docker push  192.168.20.135:5000/fengjian/fengjian/fengjian:20170122v1.0



  The push refers to a repository [192.168.20.135:5000/fengjian/nginx20170203]
  Get https://192.168.20.135:5000/v1/_ping: http: server gave HTTP response to HTTPS client



出现无法push镜像到私有仓库的问题。这是因为我们启动的registry服务不是安全可信赖的。这是我们需要修改docker的配置文件/usr/lib/systemd/system/docker.service,添加下面的内容,注意: registry 和 docker1 2台服务器都需要修改



上传镜像到 192.168.20.135

[root@docker overlay]# docker push  192.168.20.135:5000/fengjian/fengjian/fengjian:20170122v1.0


The push refers to a repository [192.168.20.135:5000/fengjian/fengjian/fengjian:20170122v1.0]

23c8d40ebb9e: Pushed
5526182de2ab: Pushed
652f3c2c3f57: Pushed
bf76891beffc: Pushed
f696adb3bd45: Pushed
46db44806cd4: Pushed
2dd577fe2559: Pushed
bbc4847eb1d2: Pushed
747f5baee8ac: Pushed
29003cbb49e1: Pushed
f5d4b5d6f2ff: Pushed
ee745a500b91: Pushed
3383431a5cc0: Pushed
8aabcc6c5e8d: Pushed
967105df7f61: Pushed
0c051da11cb4: Pushed
34e7b85d83e4: Pushed
v1: digest: sha256:4e5d763dfb99ecd95128d1033e14bb4740613045c89bb2646006ac7db08f5a6f size: 3871



通过浏览器,查询上传结果



使用docker pull从我们的私有仓库中获取192.168.20.135:5000/fengjian/fengjian/fengjian:20170122v1.0镜像

[root@docker ~ ]# docker pull 192.168.20.135:5000/fengjian/nginx20170203:v1

v1: Pulling from fengjian/nginx20170203
17385548ba54: Already exists
59da822a5404: Already exists
ec5de50f3658: Already exists
751fb563feef: Already exists
8145f1a2090b: Already exists
575600a5843d: Already exists
035deb98f67f: Already exists
2e1f8c7e36ce: Already exists
3cf27705cd77: Pull complete
d4e37a9633b1: Pull complete
1aab1e953ef2: Pull complete
31afde0ced92: Pull complete
253eadce8153: Pull complete
750606d876c8: Pull complete
f96cc19c204f: Pull complete
eea9946ffb66: Pull complete
da59d6a4a8bd: Pull complete
Digest: sha256:4e5d763dfb99ecd95128d1033e14bb4740613045c89bb2646006ac7db08f5a6f
Status: Downloaded newer image for 192.168.20.135:5000/fengjian/nginx20170203:v1

192.168.20.209启动一个容器

[root@docker ~ ]# docker run -d -p 8081:80 --name nginx 192.168.20.135:5000/fengjian/nginx20170203:v1

[root@docker ~ ]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
7539cd87c9bd 192.168.20.135:5000/fengjian/nginx20170203:v1 "/usr/bin/supervis..." 2 minutes ago Up 2 minutes 22/tcp, 0.0.0.0:8081->80/tcp nginx

登陆到容器中

[root@docker overlay]# docker exec -it nginx /bin/bash

容器nginx启动正常

[root@7539cd87c9bd nginx-1.11.2]# ps -ef
UID PID PPID C STIME TTY TIME CMD
root 1 0 0 17:21 ? 00:00:00 /usr/bin/python2 /usr/bin/supervisord -n -c /etc/supervisord.conf
root 9 1 0 17:21 ? 00:00:00 nginx: master process /data/nginx/sbin/nginx
nobody 10 9 0 17:21 ? 00:00:00 nginx: worker process
root 88 0 1 17:25 ? 00:00:00 /bin/bash
root 104 1 0 17:25 ? 00:00:00 /data/nginx/sbin/nginx
root 105 88 0 17:25 ? 00:00:00 ps -ef




注: registry服务器,暂时看不到上传的image镜像。已经存在的镜像,在

[root@registry repositories]# pwd
/data/registry/docker/registry/v2/repositorie



复制代码

docker  registry   https服务

1. 启动registry仓库的镜像,与上面相同
[root@registry ~]# docker run -d -p 5000:5000 -v /opt/registry:/var/lib/registry --restart=always --name registry registry:latest
2. 关闭 /usr/lib/systemd/system/docker.service 配置文件中 "--insecure-registry=192.168.20.135:5000"
[root@registry ~]# systemctl daemon-reload
[root@registry ~]# systemctl restart docker.service

3. 启动 nginx容器 映射443端口
[root@registry ~]#  docker pull nginx (也可以自己制作nginx镜像)
运行nginx容器
[root@registry ~]#  docker run -d -p 443:443 --name nginx  nginx:latest

4. 修改nginx 配置文件,已经添加域名证书
[root@registry ~]#  docker cp  nginx.conf  /etc/nginx/nginx.conf
[root@registry ~]#  docker cp  sslkey  /etc/nginx/
5. 登陆到容器中重新启动nginx
[root@123131nginx ~]#   /etc/init.d/nginx restart

########################
nginx.conf  配置文件

events {
    worker_connections  1024;
}

http {

  upstream docker-registry {
    server 192.168.20.135:5000;
  }

  server {
    listen 443 ssl;
    server_name docker.cinyi.com;

    ssl_certificate /data/nginx/sslkey/cinyi.crt;
    ssl_certificate_key /data/nginx/sslkey/cinyi.key;

    client_max_body_size 0;

    chunked_transfer_encoding on;

    location / {
      proxy_pass                          http://docker-registry;
      proxy_set_header  Host              $http_host;
      proxy_set_header  X-Real-IP         $remote_addr;
      proxy_set_header  X-Forwarded-For   $proxy_add_x_forwarded_for;
      proxy_set_header  X-Forwarded-Proto $scheme;
      proxy_read_timeout                  900;
    }
  }
}


6. 在 192.168.20.209 服务器上,查看镜像,对镜像打tag,然后push 到registry

[root@docker1 ~]# docker images
[root@docker1 ~]# docker tag senyint/im-web docker.cinyi.com:443/senyint/im-web:443
[root@docker1 ~]# docker push  docker.cinyi.com:443/senyint/im-web:443


复制代码





复制代码

查看registry 里面存储的镜像

使用 Registry V2 API。可以列出所有镜像:

curl http://<私有registry地址>/v2/_catalog

例如
[root@docker225 ~]# curl https://docker.cinyi.com/v2/_catalog
{"repositories":["fengjian/nginx20170203","mysql20170203","senyint/centos7.3","senyint/im-web","senyint/nginx"]}

复制代码



复制代码

查看registry 里面存储的镜像tag

使用 Registry V2 API。可以列出所有镜像:

curl GET <protocol>://<registry_host>/v2/<镜像名>/tags/list

例如
[root@docker225 ~]# curl GET https://docker.cinyi.com/v2/senyint/im-web/tags/list
{"name":"senyint/im-web","tags":["latest","443"]}

复制代码



复制代码

删除docker.cinyi.com docker registry的镜像

1.在启动仓库时,需在配置文件中的storage配置中增加delete=true配置项,允许删除镜像
[root@registry ~]#tail -f   /etc/docker/registry/config.yml文件 ,修改容器yml文件后,一直显示在报错,后续在处理
storage:
  delete:
    enabled: true
2. 拿到disgest_hash参数

curl  --header "Accept: application/vnd.docker.distribution.manifest.v2+json" -I -X GET https://docker.cinyi.com/v2/senyint/nginx/manifests/latest

HTTP/1.1 200 OK
Server: nginx/1.11.2
Date: Wed, 15 Feb 2017 01:24:56 GMT
Content-Type: application/vnd.docker.distribution.manifest.v2+json
Content-Length: 3669
Connection: keep-alive
Docker-Content-Digest: sha256:609a595020f0827301064ebc07b3ec3a5751641ef975a7a186518cf6b0d70f63
Docker-Distribution-Api-Version: registry/2.0
Etag: "sha256:609a595020f0827301064ebc07b3ec3a5751641ef975a7a186518cf6b0d70f63"
X-Content-Type-Options: nosniff

3.复制disgest_hash
Docker-Content-Digest: <digest_hash>
Docker-Content-Digest: sha256:609a595020f0827301064ebc07b3ec3a5751641ef975a7a186518cf6b0d70f63
4.删除registry镜像
  curl -I -X DELETE <protocol>://<registry_host>/v2/<repo_name>/manifests/<digest_hash>
[root@docker225 ~]# curl -I  -X DELETE https://docker.cinyi.com/v2/senyint/im-web/manifests/sha256:609a595020f0827301064ebc07b3ec3a5751641ef975a7a186518cf6b0d70f63


第二种方法

1. 打开镜像的存储目录, 删除镜像文件夹

  [root@registry repositories]# docker exec registry rm -rf senyint

 2.执行垃圾回收操作
  [root@registry repositories]# docker exec registry /bin/registry garbage-collect /etc/docker/registry/config.yml

  3. 重启容器

  [root@registry repositories]#  docker restart registry

复制代码





docker-compose编排工具安装,一次启动多个容器。

复制代码

#对安装好的pip进行一次升级
pip install --upgrade pip

安装docker-compose
pip install docker-compose

运行docker-compose
出现报错
pkg_resources.DistributionNotFound: backports.ssl-match-hostname>=3.5

使用pip 更新backports.ssl-match-hostname的版本
pip install --upgrade backports.ssl_match_hostname
更新backports.ssl_match_hostname 到3.5版本后问题解决







[root@docker1 certs]# docker-compose up
ERROR:
Can't find a suitable configuration file in this directory or any
parent. Are you in the right directory?



Supported filenames: docker-compose.yml, docker-compose.yaml



编写docker-compose.yml 文件



[root@docker1 second]# vim docker-compose.yml

mysql:
image: fengjian/mysql:5.5
ports:
- "3306:3306"
volumes:
- /var/lib/docker/vfs/dir/dataxc:/var/lib/mysql
hostname: mydb.server.com

tomcat:
image: tomcat
ports:
- "8080:8080"
links:
- mysql:db
environment:
- TOMCAT_USER=admin
- TOMCAT_PASS=admin
hostname: tomcat.server.com



在后台启动,在docker-compose.yml 下启动

[root@docker1 second]# docker-compose up -d

查看启动的容器

[root@docker1 second]# docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
5b844baf351e tomcat "catalina.sh run" 6 minutes ago Up 6 minutes 0.0.0.0:8080->8080/tcp second_tomcat_1
f88ccf720119 fengjian/mysql:5.5 "/scripts/start" 6 minutes ago Up 6 minutes 22/tcp, 0.0.0.0:3306->3306/tcp second_mysql_1

停掉2个container

[root@docker1 second]# docker-compose stop

通过ps 查看通过docker-compose启动的有那些container。

[root@docker1 second]# docker-compose ps
Name Command State Ports
----------------------------------------------------
second_mysql_1 /scripts/start Exit 137
second_tomcat_1 catalina.sh run Exit 143

删除通过docker-compose建立的2个container.

[root@docker1 second]# docker-compose rm
Name Command State Ports
----------------------------------------------------
second_mysql_1 /scripts/start Exit 137
second_tomcat_1 catalina.sh run Exit 143





复制代码



通过docker仓库自动构建(jenkins)

构建jenkins 镜像
构建maven镜像:

[root@docker /]# mkdir maven-tar

[root@docker /]# cd maven-tar/

[root@docker maven-tar]# wget http://mirror.bit.edu.cn/apache/maven/maven-3/3.3.9/binaries/apache-maven-3.3.9-bin.tar.gz



docker最大的优势在于部署,jenkins最强大的在于作业调度和插件系统,如何结合两者?



创建一个jenkins镜像

apache-maven-3.3.9-bin.tar.gz  Dockerfile  jdk.tar.gz  jenkins.war  rc.local  settings.xml  supervisor_tomcat.conf  tomcat

DockerFile 文件

复制代码

FROM       centos7.3:20170204
MAINTAINER fengjian <fengjian@senyint.com>


# Install maven
ADD apache-maven-3.3.9-bin.tar.gz /data/
ADD jdk.tar.gz  /data/
COPY tomcat /data/tomcat
COPY jenkins.war /data/tomcat/webapps/

COPY settings.xml /data/maven/conf/settings.xml
ADD  supervisor_tomcat.conf /etc/supervisor.conf.d/tomcat.conf

复制代码



supervisor tomcat的启动配置文件

复制代码

[root@docker maven-tar]# vim supervisor_tomcat.conf

[program:tomcat]
directory=/
command=/data/tomcat/bin/catalina.sh start
user=root
autostart=true
autorestart=true
stdout_logfile=/var/log/supervisor/%(program_name)s.log
stderr_logfile=/var/log/supervisor/%(program_name)s.log
~

复制代码



tomcat 启动文件 vim /data/tomcat/bin/catalina.sh

复制代码

export JENKINS_HOME="/data/jenkins_home"
export JAVA_HOME=/data/jdk
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib

# OS specific support.  $var _must_ be set to either true or false.

复制代码



创建jenkins镜像, 启动jenkins镜像

[root@docker ~]# docker build -t jenkins .
[root@docker ~]# docker run -d -p 8080:80 --name jenkins jenkins









把 container 容器 打包成镜像

复制代码

1. 关闭jenkins
[root@docker ~ ]# docker stop jenkins

root@docker maven-tar]# docker ps -a
CONTAINER ID        IMAGE      COMMAND                   CREATED             STATUS                   PORTS                          NAMES
9174cf36cdfc        jenkins     "/usr/bin/supervis..."   2 hours ago         Up About an hour         22/tcp, 0.0.0.0:8080->80/tcp   jenkins


2. 把容器打包成镜像
[root@docker ~ ]# docker  commit   9174cf36cdfc   jenkins20170204

3. 查看新的jenkins 镜像
[root@docker ~] docker  images

  REPOSITORY       TAG     IMAGE ID     CREATED       SIZE
  jenkins20170204    latest    5254a69cb614    41 seconds ago    1.62 GB



复制代码



jenkins镜像里内置了docker client命令行工具,/usr/bin/docker,因此我们只需要传递 DOCKER_HOST 环境变量 或者映射 docker.sock 文件给jenkins容器,就可以让jenkins容器里面拥有docker的操作能力,进而将两者结合起来。

创建jenkins 新的镜像,把/usr/bin/docker 和 /var/run/docker.sock 映射给 jenkins 容器

复制代码

创建jenkins 新的镜像,把/usr/bin/docker 和 /var/run/docker.sock 映射给 jenkins 容器
docker run -d -p 8080:80 -v /usr/bin/docker:/usr/bin/docker -v /var/run/docker.sock:/var/run/docker.sock --name jenkins20170204 jenkins20170204:latest

登陆到jenkins容器中,查看jenkins 进程是否启动

[root@docker ~]# docker exec -it jenkins20170204 /bin/bash





测试docker 是否可用

解决办法:

yum install libtool-ltdl-devel

再次执行,查看启动的容器



查看镜像

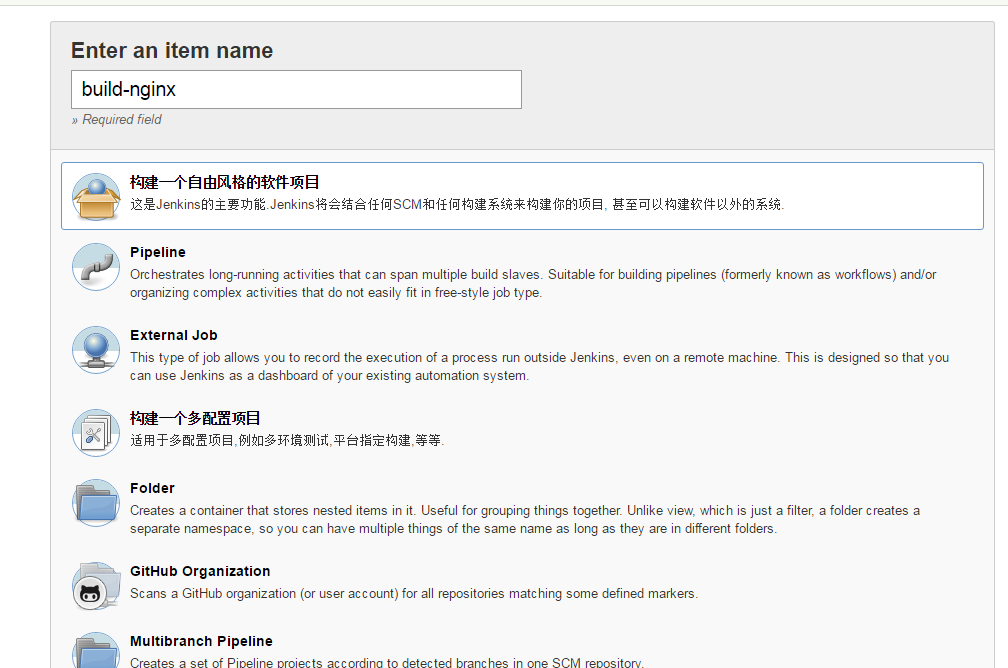

打开浏览器,通过jenkins,把build-nginx git到jenkins本地后,打包成镜像。



注意 $WORKSPACE是指定的 git 下载的路径名称:比如 build-nginx







 开始构建









 已经生成镜像。



java项目实现流程

        1.jenkins 新建一个项目

        2.从git仓库把项目克隆到本地

        3.通过docker构建成镜像

        4.上传到registry服务器

        5.client 通过 docker pull registry镜像到本地,启动容器。

        6.测试环境,研发环境,通过images传递。



 分成三层: 1. 基础镜像

           2. 中间件镜像

           3. 应用镜像

复制代码



构建java项目docker镜像,首先 把java 用maven 编译,并且构建成镜像,通过 docker cp命令把war包拷贝 到中间件。

复制代码

FROM       centos7.3:20170204
MAINTAINER fengjian <fengjian@senyint.com>


# Install maven
ADD apache-maven-3.3.9-bin.tar.gz /data/
ADD jdk.tar.gz  /data
#COPY tomcat /data/tomcat
#COPY jenkins.war /data/tomcat/webapps/

COPY  apache-maven-3.3.9   /data/maven
COPY settings.xml /data/maven/conf/settings.xml
CMD  ["source /etc/profile"]
#ADD  supervisor_tomcat.conf /etc/supervisor.conf.d/tomcat.conf

ADD hello /hello
RUN cd /hello && \
    /data/maven/bin/mvn install package

复制代码



复制代码

1.构建maven镜像,已经通过mvn install package 编译java代码
[root@docker ~]# docker build -t senyint/maven:v1

2.创建 maven 容器,但是不启动
[root@docker ~]# docker create --name maven senyint/maven:v1

3.把hello.war 的包 从maven容器中拷贝出来
[root@docker ~]# docker cp  maven:/hello/target/hello.war  .

复制代码






#########################################################################################################################################################################################################
自己总结

 分成三层: 1. 基础镜像                  centos:7.3      supervisor

                2. 中间件镜像               java  maven    tomcat

                3. 应用镜像                  java项目 war包 (jenkins   ........)

1. centos7.3 基础镜像

复制代码

Dockerfile centos7.3基础镜像

FROM       centos:latest
MAINTAINER fengjian <fengjian@senyint.com>

ENV TZ "Asia/Shanghai"
ENV TERM xterm

ADD 1.repo /etc/yum.repos.d/1.repo
ADD aliyun-mirror.repo /etc/yum.repos.d/CentOS-Base.repo
ADD aliyun-epel.repo /etc/yum.repos.d/epel.repo

RUN yum install -y curl openssl* wget libtool-ltdl-devel tar bzip2 unzippasswd sudo yum-utils hostname net-tools && \
    yum install -y gcc gcc-c++ git make automake cmake patch logrotate python-devel libpng-devel libjpeg-devel && \
    yum install -y --enablerepo=epel pwgen python-pip && \
    yum clean all

RUN pip install -i https://pypi.tuna.tsinghua.edu.cn/simple  supervisor
ADD supervisord.conf /etc/supervisord.conf

RUN mkdir -p /etc/supervisor.conf.d && \
    mkdir -p /var/log/supervisor


ENTRYPOINT ["/usr/bin/supervisord", "-n", "-c", "/etc/supervisord.conf"]

复制代码

复制代码

supervisord.conf 配置文件

[root@docker centos7]# cat supervisord.conf
[unix_http_server]
file=/var/run/supervisor.sock ; (the path to the socket file)
chmod=0700              ; socket file mode (default 0700)

[supervisord]
logfile=/var/log/supervisor/supervisord.log ; (main log file;default $CWD/supervisord.log)
logfile_maxbytes=50MB
logfile_backup=10
loglevel=info
pidfile=/var/run/supervisord.pid ; (supervisord pidfile;default supervisord.pid)
nodaemon=true           ; (Start in foreground if true; default false)
minfds=1024                 ; (min. avail startup file descriptors;default 1024)
minprocs=200                ; (min. avail process descriptors;default 200)

[rpcinterface:supervisor]
supervisor.rpcinterface_factory = supervisor.rpcinterface:make_main_rpcinterface

[supervisorctl]
serverurl=unix:///var/run/supervisor.sock ; use a unix:// URL  for a unix socket

[include]
files = /etc/supervisor.conf.d/*.conf

复制代码



二.中间件镜像

[root@docker jdk]# ls
Dockerfile jdk.tar.gz  maven.tar.gz  profile  supervisor_tomcat.conf  tomcat.tar.gz

复制代码

[root@docker jdk]# vim profile   最底部添加环境变量

export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=$JAVA_HOME/bin:$JRE_HOME/bin:$JAVA_HOME:$PATH

MAVEN_HOME=/data/maven
export MAVEN_HOME
export PATH=${PATH}:${MAVEN_HOME}/bin

复制代码

复制代码

[root@docker jdk]# vim supervisor_tomcat.conf    用于启动tomcat

[program:tomcat]
directory=/
command=/data/tomcat/bin/catalina.sh start
user=root
autostart=true
autorestart=true
stdout_logfile=/var/log/supervisor/%(program_name)s.log
stderr_logfile=/var/log/supervisor/%(program_name)s.log

复制代码

复制代码

[root@docker jdk]# vim Dockerfile

FROM senyint/centos7.3
MAINTAINER fengjian <fengjian@senyint.com.com>

ENV JAVA_HOME /data/jdk
ENV JRE_HOME ${JAVA_HOME}/jre
ENV CLASSPATH .:${JAVA_HOME}/lib:${JRE_HOME}/lib

ENV MAVEN_HOME /data/maven
ENV PATH ${PATH}:${MAVEN_HOME}/bin:$JAVA_HOME/bin:$JRE_HOME/bin:$JAVA_HOME:$PATH

RUN mkdir -p /data/webserver
ADD maven.tar.gz /data
ADD jdk.tar.gz /data
ADD tomcat.tar.gz /data
ADD profile /etc
#ADD env.sh /etc/profile.d/

ADD supervisord.conf /etc/supervisord.conf
ADD supervisor_tomcat.conf /etc/supervisor.conf.d/tomcat.conf

RUN mkdir -p /etc/supervisor.conf.d && \
mkdir -p /var/log/supervisor

ENTRYPOINT ["/usr/bin/supervisord", "-n", "-c", "/etc/supervisord.conf"]



复制代码



复制代码

[root@docker jdk]# docker build  -t senyint/tomcat:v1 .
启动容器测试 java 环境变量
[root@docker jdk]# docker run -d -p 11112:80 --name tomcat1 senyint/tomcat:v1
[root@docker jdk]# docker exec -it tomcat1 /bin/bash
[root@docker jdk]# java -version  显示java版本
[root@docker jdk]# mvn -version   显示maven版本

复制代码







3构建应用

(1)构建jenkins

复制代码

jenkins Dockerfile文件
[root@docker jenkins]# vim Dockerfile


  FROM senyint/java1.8:latest

  MAINTAINER fengjian <fengjian@senyint.com.com>

  ENV JENKINS_HOME /data/jenkins_home

  ADD profile /etc/

  ADD jenkins.war /data/webserver/

  RUN unzip /data/webserver/jenkins.war -d /data/webserver && \
  rm /data/webserver/jenkins.war

  VOLUME /data/jenkins_home

构建jenkins镜像
[root@docker jenkins]# docker build -t senyint/jenkins .

启动 jenkins 并且登陆到容器中
[root@docker jenkins]# docker run -d -p 11111:80 -v /usr/bin/docker:/usr/bin/docker -v /var/run/docker.sock:/var/run/docker.sock -v /docker_project:/docker_project --name jenkins  senyint/jenkins
-v /docker_project:/docker_project  这个是把/docker_project 目录映射到 jenkins 容器中, jenkins容器 编译完war包后,通过cp命令拷贝到 /docker_project/java工程目录/ ,通过senyint/tomcat镜像构建java项目镜像。
[root@docker jenkins]# docker exec -it jenkins/bin/bash

使用docker命令,



复制代码



以下为jenkins 配置,以及 docker 对im-web项目进行编译,构建im-web镜像,并且推送到registry.

复制代码

从git 仓库 下载java项目代码







复制代码



复制代码

构建时出现操作方法









registry="docker.cinyi.com:443"
#取出项目目录
javadir=`echo $WORKSPACE | awk -F'/' '{print $5}'`
#取出war包名称
javaname=`ls $WORKSPACE/target/*war | awk -F'/' '{print $7}' | cut -d . -f 1`

mkdir -p /data/docker_project/$javadir
rm /data/docker_profile/$javadir/$javaname.war -rf
mv $WORKSPACE/target/$javaname.war /data/docker_project/$javadir

#在/data/docker_project 目录下有一个dockerfile模版,根据war包的名字替换成新的dockerfile
sed "s/jenkins/$javaname/g" /data/docker_project/Dockerfile >/data/docker_project/$javadir/Dockerfile

if docker images | grep $javaname ; then
docker rmi -f docker.cinyi.com:443/senyint/$javaname
fi

docker build -t docker.cinyi.com:443/senyint/$javaname /data/docker_project/$javadir/
docker push docker.cinyi.com:443/senyint/$javaname


#定义namespace 为test:

k8s_apicurl="curl --cacert /root/ca.pem"
k8s_url="https://192.168.20.227:6443"

#创建namespaces
if ! `$k8s_apicurl -H "Authorization: Bearer 199e9c8d4ce99c61" -X GET $k8s_url/api/v1/namespaces | grep test >/dev/null` ;then
$k8s_apicurl -H "Authorization: Bearer 199e9c8d4ce99c61" -H "content-Type: application/yaml" -X POST $k8s_url/api/v1/namespaces -d "$(cat /root/namespaces.yaml)"
fi



#创建service
if ! `$k8s_apicurl -H "Authorization: Bearer 199e9c8d4ce99c61" -X GET $k8s_url/api/v1/namespaces/test/services | grep "im-web" >/dev/null` ; then
$k8s_apicurl -H "Authorization: Bearer 199e9c8d4ce99c61" -H "content-Type: application/yaml" -X POST $k8s_url/api/v1/namespaces/test/services -d "$(cat /root/im-web_service.yaml)"
fi

#创建deployment
if ! `$k8s_apicurl -H "Authorization: Bearer 199e9c8d4ce99c61" -X GET $k8s_url/apis/extensions/v1beta1/namespaces/test/deployments | grep "im-web" >/dev/null` ; then
$k8s_apicurl -H "Authorization: Bearer 199e9c8d4ce99c61" -H "content-Type: application/yaml" -X POST $k8s_url/apis/extensions/v1beta1/namespaces/test/deployments/ -d "$(cat /root/im-web_deployment.yaml)"
fi



 把docker 命令 sock 直接挂载到容器中,进行打包,做成镜像。

docker run -d -p 80:80 --restart=always -v /usr/bin/docker:/usr/bin/docker -v /var/run/docker.sock:/var/run/docker.sock -v /data/docker_project:/data/docker_project  -v /data/jenkins_home:/data/jenkins_home -v /etc/sysconfig/docker:/etc/sysconfig/docker  senyint/jenkins



登陆到容器中,出现docker-client, docker版本是1.12.6

[root@6882772021f0 /]# docker ps -a
You don't have either docker-client or docker-client-latest installed. Please install either one and retry.



1.13版本好像没有问题,1.12.6在容器中yum install docker-client

[root@6882772021f0 /]# yum -y install docker-client

复制代码



###################################################################################

docker资源隔离 使用linux LXC容器技术,主要是使用namespace(命名空间)

kernel namespace(资源隔离) 分为
1.PID,通过pid 隔离,容器有自己独立的进程表和1号进程
2.net,通过网络隔离,容器有自己独立的network info
3.ipc,进程间的交互方法,在ipc通信时,需要加入额外信息来标识进程
4.mnt, 类似chroot,每个容器有自己唯一的目录挂载
5.uts, 可以让容器拥有自己的hostname 和domain
6.user, 可以拥有不通的用户,组


复制代码

docker  网络模式

1. Nat  网络地址转换

2. Host
创建host网络, 和宿主机的网络相同
[root@docker data]# docker run -d --name centos7-host --net=host centos7.3:20170204



3.other container

容器之间相互通信十分频繁,可以使用这种模式,container网络特点

1.与主机网络空间隔离

2.容器间共享网络空间

3.适合容器间网络通信频繁。

[root@docker data]# docker run -d --name centos7-nat centos7.3:20170204   nat模式
[root@docker data]# docker run -d --name centos-container --net=container:centos7-nat  centos7.3:20170204


centos-container容器的 ip地址 与 centos7-nat 的地址相同





4. none
docker 容器 无网络配置,可自行配置。
[root@docker data]# docker run -d --name centos-none --net=none  centos7.3:20170204

登陆到容器后,没有eth0



5. overlay





overlay 网络特点

1. 跨主机通信

2.无需做端口管理

3.无需担心IP冲突



Consul介绍

Consul 提供了分布式系统的服务发现和配置的解决方案。基于go语言实现。并且在git上开放了源码。consul还包括了分布式一致协议的实现,健康检查和管理UI.



Consul Agent Server、Client介绍



通过运行 consul agent 命令,可以通过后台守护进程的方式运行在所有consul集群节点中。以server或者client 模式运行。并且以HTTP或者DNS 接口方式,

负责运行检查和服务同步。Server模式的agent负责维护consul集群状态,相应RPC查询,并且还要负责和其他数据中心进行WAN Gossips交换。client 节点是

相对无状态的,Client的唯一活动就是转发请求给Server节点,以保持低延迟和少资源消耗。











openvswitch docker 配置

测试环境 ens32:192.168.20.209   docker0:10.0.1.1/24
     ens32:192.168.20.135   docker0:10.0.2.1/24
      ens32:192.168.20.223   docker0:10.0.3.1/24
       ens32:192.168.20.224    docker0:10.0.4.1/24



192.168.20.20服务器操作
[root@docker ~]# rpm -ivh openvswitch-2.5.0-2.el7.x86_64.rpm
warning: openvswitch-2.5.0-2.el7.x86_64.rpm: Header V4 DSA/SHA1 Signature, key ID fac8d3c0: NOKEY
error: Failed dependencies:
libatomic.so.1()(64bit) is needed by openvswitch-2.5.0-2.el7.x86_64

[root@docker ~]# yum -y install libatomic


[root@docker ~]# systemctl start openvswitch.service

[root@docker ~]# systemctl status openvswitch.service
openvswitch.service - Open vSwitch
Loaded: loaded (/usr/lib/systemd/system/openvswitch.service; disabled; vendor preset: disabled)
Active: active (exited) since Sat 2017-02-11 10:00:11 CST; 17s ago
Process: 3854 ExecStart=/bin/true (code=exited, status=0/SUCCESS)
Main PID: 3854 (code=exited, status=0/SUCCESS)

Feb 11 10:00:11 docker systemd[1]: Starting Open vSwitch...
Feb 11 10:00:11 docker systemd[1]: Started Open vSwitch.

[root@docker ~]# yum -y install bridge-utils


[root@docker ~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.0242fabe521c no

#创建一个新的网桥
[root@docker ~]# ovs-vsctl add-br br0

#将网络设备端口添加到桥接器
[root@docker ~]# ovs-vsctl add-br br0
[root@docker ~]# ovs-vsctl add-port br0 gre0 -- set interface gre0 type=gre option:remote_ip=192.168.20.135


包括以下命令
[root@docker ~]# ovs-vsctl show
6fde4aed-708a-4ecc-882a-a415b3b3ac3d
Bridge "br0"
Port "br0"
Interface "br0"
type: internal
Port "gre0"
Interface "gre0"
type: gre
options: {remote_ip="192.168.20.135"}
ovs_version: "2.5.0"


#[root@docker ~]# ovs-vsctl del-br br0


#添加br0到本地docker0,使容器流量通过openvswitc的隧道流出
[root@docker ~]# brctl addif docker0 br0
[root@docker ~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.0242fabe521c no br0


[root@docker ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:50:56:84:42:8d brd ff:ff:ff:ff:ff:ff
inet 192.168.20.209/24 brd 192.168.20.255 scope global ens32
valid_lft forever preferred_lft forever
inet6 fe80::250:56ff:fe84:428d/64 scope link
valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN
link/ether 02:42:fa:be:52:1c brd ff:ff:ff:ff:ff:ff
inet 10.0.1.1/24 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:faff:febe:521c/64 scope link
valid_lft forever preferred_lft forever
422: ovs-system: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN
link/ether c6:82:46:70:bc:d1 brd ff:ff:ff:ff:ff:ff
424: gre0@NONE: <NOARP> mtu 1476 qdisc noop state DOWN
link/gre 0.0.0.0 brd 0.0.0.0
425: gretap0@NONE: <BROADCAST,MULTICAST> mtu 1462 qdisc noop state DOWN qlen 1000
link/ether 00:00:00:00:00:00 brd ff:ff:ff:ff:ff:ff
426: br0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop master docker0 state DOWN
link/ether 8e:63:55:ec:3b:41 brd ff:ff:ff:ff:ff:ff

#启用docker0 和 br0 网卡
[root@docker ~]# ip link set dev br0 up
[root@docker ~]# ip link set dev docker0 up

添加一条路由,所有去10.0.0.0/8 的网络从docker0出
[root@docker ~]# ip route add 10.0.0.0/8 dev docker0

启动一个容器
[root@docker ~]# docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
centos7.3 20170204 1d6f132807d0 6 days ago 530 MB

[root@docker ~]# docker run -d --name 209test centos7.3:20170204
登录到容器中
[root@docker ~]# docker exec -it 209test /bin/bash
查看ip地址
[root@464241f535e2 /]# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 10.0.1.2 netmask 255.255.255.0 broadcast 0.0.0.0
inet6 fe80::42:aff:fe00:102 prefixlen 64 scopeid 0x20<link>
ether 02:42:0a:00:01:02 txqueuelen 0 (Ethernet)
RX packets 720 bytes 68496 (66.8 KiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 693 bytes 65706 (64.1 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
inet6 ::1 prefixlen 128 scopeid 0x10<host>
loop txqueuelen 0 (Local Loopback)
RX packets 0 bytes 0 (0.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0

#ping 192.168.20.135 服务器容器的IP地址
[root@464241f535e2 /]# ping 10.0.2.2

PING 10.0.2.2 (10.0.2.2) 56(84) bytes of data.
64 bytes from 10.0.2.2: icmp_seq=1 ttl=63 time=0.451 ms
64 bytes from 10.0.2.2: icmp_seq=2 ttl=63 time=0.493 ms
From 10.0.1.1 icmp_seq=3 Redirect Host(New nexthop: 10.0.2.2)
From 10.0.1.1: icmp_seq=3 Redirect Host(New nexthop: 10.0.2.2)

出现以上问题,过一会,就恢复正常。


##############################################################################################


192.168.20.135、223、224 服务器操作
[root@registry ~]# rpm -ivh openvswitch-2.5.0-2.el7.x86_64.rpm
warning: openvswitch-2.5.0-2.el7.x86_64.rpm: Header V4 DSA/SHA1 Signature, key ID fac8d3c0: NOKEY
error: Failed dependencies:
libatomic.so.1()(64bit) is needed by openvswitch-2.5.0-2.el7.x86_64

[root@registry ~]# yum -y install libatomic


[root@registry ~]# systemctl start openvswitch.service

[root@registry ~]# systemctl status openvswitch.service
● openvswitch.service - Open vSwitch
Loaded: loaded (/usr/lib/systemd/system/openvswitch.service; disabled; vendor preset: disabled)
Active: active (exited) since Sat 2017-02-11 10:00:11 CST; 17s ago
Process: 3854 ExecStart=/bin/true (code=exited, status=0/SUCCESS)
Main PID: 3854 (code=exited, status=0/SUCCESS)

Feb 11 10:00:11 registry systemd[1]: Starting Open vSwitch...
Feb 11 10:00:11 registry systemd[1]: Started Open vSwitch.

[root@registry ~]# yum -y install bridge-utils


[root@registry ~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.0242fabe521c no

#创建一个新的网桥
[root@registry ~]# ovs-vsctl add-br br0

#将网络设备端口添加到桥接器
[root@registry ~]# ovs-vsctl add-br br0
[root@registry ~]# ovs-vsctl add-port br0 gre0 -- set interface gre0 type=gre option:remote_ip=192.168.20.209


包括以下命令,ovs-vsctl show 的结果与 192.168.20.209不一样
[root@registry ~]# ovs-vsctl show
19baf011-40aa-426c-a2b9-568101390834
Bridge "br0"
Port "gre0"
Interface "gre0"
type: gre
options: {remote_ip="192.168.20.209"}
Port "br0"
Interface "br0"
type: internal
ovs_version: "2.5.0"

####删除br0 [root@registry ~]# ovs-vsctl del-br br0


#添加br0到本地registry0,使容器流量通过openvswitc的隧道流出
[root@registry ~]# brctl addif docker0 br0
[root@registry ~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.0242fabe521c no br0


[root@registry ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:50:56:84:2b:fc brd ff:ff:ff:ff:ff:ff
inet 192.168.20.135/24 brd 192.168.20.255 scope global ens32
valid_lft forever preferred_lft forever
inet6 fe80::250:56ff:fe84:2bfc/64 scope link
valid_lft forever preferred_lft forever
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state DOWN
link/ether 02:42:5e:5d:06:3f brd ff:ff:ff:ff:ff:ff
inet 10.0.2.1/24 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:5eff:fe5d:63f/64 scope link
valid_lft forever preferred_lft forever
28: ovs-system: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN
link/ether f2:fd:f4:39:e2:20 brd ff:ff:ff:ff:ff:ff
29: br0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state DOWN
link/ether 0a:29:1e:93:37:41 brd ff:ff:ff:ff:ff:ff
inet6 fe80::829:1eff:fe93:3741/64 scope link
valid_lft forever preferred_lft forever


#启用docker0 和 br0 网卡
[root@registry ~]# ip link set dev br0 up
[root@registry ~]# ip link set dev docker0 up

添加一条路由,所有去10.0.0.0/8 的网络从docker0出
[root@registry ~]# ip route add 10.0.0.0/8 dev docker0





#########################################################################################



192.168.20.223 服务器操作
[root@docker223~]# rpm -ivh openvswitch-2.5.0-2.el7.x86_64.rpm
warning: openvswitch-2.5.0-2.el7.x86_64.rpm: Header V4 DSA/SHA1 Signature, key ID fac8d3c0: NOKEY
error: Failed dependencies:
libatomic.so.1()(64bit) is needed by openvswitch-2.5.0-2.el7.x86_64

[root@docker223~]# yum -y install libatomic


[root@docker223~]# systemctl start openvswitch.service

[root@docker223~]# systemctl status openvswitch.service
● openvswitch.service - Open vSwitch
Loaded: loaded (/usr/lib/systemd/system/openvswitch.service; disabled; vendor preset: disabled)
Active: active (exited) since Sat 2017-02-11 10:00:11 CST; 17s ago
Process: 3854 ExecStart=/bin/true (code=exited, status=0/SUCCESS)
Main PID: 3854 (code=exited, status=0/SUCCESS)

Feb 11 10:00:11 docker223systemd[1]: Starting Open vSwitch...
Feb 11 10:00:11 docker223systemd[1]: Started Open vSwitch.

[root@docker223~]# yum -y install bridge-utils


[root@docker223~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.0242fabe521c no

#创建一个新的网桥
[root@docker223~]# ovs-vsctl add-br br0

#将网络设备端口添加到桥接器
[root@docker223~]# ovs-vsctl add-br br0
[root@docker223~]# ovs-vsctl add-port br0 gre1 -- set interface gre1 type=gre option:remote_ip=192.168.20.209


包括以下命令,ovs-vsctl show 的结果与 192.168.20.209不一样
[root@docker223~]# ovs-vsctl show

8256b14a-1da6-4781-b9aa-7c6612ce7ebf
Bridge "br0"
Port "gre1"
Interface "gre1"
type: gre
options: {remote_ip="192.168.20.209"}
Port "br0"
Interface "br0"
type: internal
ovs_version: "2.5.0"

####删除br0 [root@docker223~]# ovs-vsctl del-br br0


#添加br0到本地registry0,使容器流量通过openvswitc的隧道流出
[root@docker223~]# brctl addif docker0 br0
[root@docker223~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.0242fabe521c no br0


[root@docker223~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:50:56:84:2b:fc brd ff:ff:ff:ff:ff:ff
inet 192.168.20.223/24 brd 192.168.20.255 scope global ens32
valid_lft forever preferred_lft forever
inet6 fe80::250:56ff:fe84:2bfc/64 scope link
valid_lft forever preferred_lft forever
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state DOWN
link/ether 02:42:5e:5d:06:3f brd ff:ff:ff:ff:ff:ff
inet 10.0.3.1/24 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:5eff:fe5d:63f/64 scope link
valid_lft forever preferred_lft forever
28: ovs-system: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN
link/ether f2:fd:f4:39:e2:20 brd ff:ff:ff:ff:ff:ff
29: br0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state DOWN
link/ether 0a:29:1e:93:37:41 brd ff:ff:ff:ff:ff:ff
inet6 fe80::829:1eff:fe93:3741/64 scope link
valid_lft forever preferred_lft forever


#启用docker0 和 br0 网卡
[root@docker223~]# ip link set dev br0 up
[root@docker223~]# ip link set dev docker0 up

添加一条路由,所有去10.0.0.0/8 的网络从docker0出
[root@docker223~]# ip route add 10.0.0.0/8 dev docker0



#########################################################################################



192.168.20.224 服务器操作
[root@docker224~]# rpm -ivh openvswitch-2.5.0-2.el7.x86_64.rpm
warning: openvswitch-2.5.0-2.el7.x86_64.rpm: Header V4 DSA/SHA1 Signature, key ID fac8d3c0: NOKEY
error: Failed dependencies:
libatomic.so.1()(64bit) is needed by openvswitch-2.5.0-2.el7.x86_64

[root@docker224~]# yum -y install libatomic


[root@docker224~]# systemctl start openvswitch.service

[root@docker224~]# systemctl status openvswitch.service
● openvswitch.service - Open vSwitch
Loaded: loaded (/usr/lib/systemd/system/openvswitch.service; disabled; vendor preset: disabled)
Active: active (exited) since Sat 2017-02-11 10:00:11 CST; 17s ago
Process: 3854 ExecStart=/bin/true (code=exited, status=0/SUCCESS)
Main PID: 3854 (code=exited, status=0/SUCCESS)

Feb 11 10:00:11 docker223systemd[1]: Starting Open vSwitch...
Feb 11 10:00:11 docker223systemd[1]: Started Open vSwitch.

[root@docker223~]# yum -y install bridge-utils


[root@docker224~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.0242fabe521c no

#创建一个新的网桥
[root@docker224~]# ovs-vsctl add-br br0

#将网络设备端口添加到桥接器
[root@docker224~]# ovs-vsctl add-br br0
[root@docker224~]# ovs-vsctl add-port br0 gre1 -- set interface gre1 type=gre option:remote_ip=192.168.20.209


包括以下命令,ovs-vsctl show 的结果与 192.168.20.209不一样
[root@docker224~]# ovs-vsctl show

8256b14a-1da6-4781-b9aa-7c6612ce7ebf
Bridge "br0"
Port "gre2"
Interface "gre2"
type: gre
options: {remote_ip="192.168.20.209"}
Port "br0"
Interface "br0"
type: internal
ovs_version: "2.5.0"

####删除br0 [root@docker224~]# ovs-vsctl del-br br0


#添加br0到本地docker0,使容器流量通过openvswitc的隧道流出
[root@docker224~]# brctl addif docker0 br0
[root@docker224~]# brctl show
bridge name bridge id STP enabled interfaces
docker0 8000.0242fabe521c no br0


[root@docker224~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
link/ether 00:50:56:84:2b:fc brd ff:ff:ff:ff:ff:ff
inet 192.168.20.224/24 brd 192.168.20.255 scope global ens32
valid_lft forever preferred_lft forever
inet6 fe80::250:56ff:fe84:2bfc/64 scope link
valid_lft forever preferred_lft forever
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state DOWN
link/ether 02:42:5e:5d:06:3f brd ff:ff:ff:ff:ff:ff
inet 10.0.4.1/24 scope global docker0
valid_lft forever preferred_lft forever
inet6 fe80::42:5eff:fe5d:63f/64 scope link
valid_lft forever preferred_lft forever
28: ovs-system: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN
link/ether f2:fd:f4:39:e2:20 brd ff:ff:ff:ff:ff:ff
29: br0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state DOWN
link/ether 0a:29:1e:93:37:41 brd ff:ff:ff:ff:ff:ff
inet6 fe80::829:1eff:fe93:3741/64 scope link
valid_lft forever preferred_lft forever


#启用docker0 和 br0 网卡
[root@docker224~]# ip link set dev br0 up
[root@docker224~]# ip link set dev docker0 up

添加一条路由,所有去10.0.0.0/8 的网络从docker0出
[root@docker224~]# ip route add 10.0.0.0/8 dev docker0



 总结,192.168.20.209 在br0 上添加 gre0 gre1 gre2 ,对应关系如下, 而192.168.20.135 br0添加gre0, 192.168.20.223 添加gre1, 192.168.20.224 添加gre2, 之后分别启动容器,不同容器的网段 可以相互ping通。

  gr0 192.168.20.135
  gr1 192.168.20.223
  gr2 192.168.20.224



192.168.20.209自启动脚本

#!/bin/bash

systemctl start openvswitch.service

systemctl enable openvswitch.service

ovs-vsctl add-br br0
ovs-vsctl add-port br0 gre0 -- set interface gre0 type=gre option:remote_ip=192.168.20.135
ovs-vsctl add-port br0 gre1 -- set interface gre1 type=gre option:remote_ip=192.168.20.223
ovs-vsctl add-port br0 gre2 -- set interface gre2 type=gre option:remote_ip=192.168.20.224

ovs-vsctl show

brctl show

brctl addif docker0 br0

ip link set dev br0 up

ip link set dev docker0 up

ip route add 10.0.0./8 dev docker0



 192.168.20.135自启动脚本

systemctl start openvswitch.service

systemctl enable openvswitch.service

ovs-vsctl add-br br0
ovs-vsctl add-port br0 gre0 -- set interface gre0 type=gre option:remote_ip=192.168.20.209

ovs-vsctl show

brctl show

brctl addif docker0 br0

ip link set dev br0 up

ip link set dev docker0 up

ip route add 10.0.0.0/8 dev docker0



 192.168.20.223自启动脚本

systemctl start openvswitch.service

systemctl enable openvswitch.service

ovs-vsctl add-br br0
ovs-vsctl add-port br0 gre1 -- set interface gre1 type=gre option:remote_ip=192.168.20.209

ovs-vsctl show

brctl show

brctl addif docker0 br0

ip link set dev br0 up

ip link set dev docker0 up

ip route add 10.0.0.0/8 dev docker0



 192.168.20.224自启动脚本

systemctl start openvswitch.service

systemctl enable openvswitch.service

ovs-vsctl add-br br0
ovs-vsctl add-port br0 gre1 -- set interface gre1 type=gre option:remote_ip=192.168.20.209

ovs-vsctl show

brctl show

brctl addif docker0 br0

ip link set dev br0 up

ip link set dev docker0 ip

ip route add 10.0.0.0/8 dev docker0

复制代码





本文转载自:http://www.cnblogs.com/fengjian2016/p/6253039.html

xingfei
粉丝 2
博文 428
码字总数 401593
作品 0
大兴
运维
私信 提问
【自定义】通过Dockerfile创建httpd镜像

创建镜像三种方法 Docker镜像创建方法有三种,分别为基于已有镜像创建、基于本地模板创建以及基于Dockerfile创建。 通过Dockerfile创建镜像 这里主要记录下基于Dockerfile创建方法,Dockerf...

MaAiQiang
2018/08/16
0
0
Docker数据管理与网络通信之镜像的创建方法

Docker镜像的创建方法 Docker镜像除了是Docker的核心技术之外,也是应用发布的标准格式。 一个完整的Docker镜像可以支撑一个Docker容器的运行,在Doker的整个使用过程中,进入一个已经定型的...

徐星月月月
2018/08/14
0
0
怎样用Docker创建我们自己的镜像

怎样用Docker创建我们自己的镜像 官方文档 Docker创建镜像 总共有两种方法: 1.用别人的镜像创建。 1.1、先下载一个容器 命令: docker pull training/sinatra 1.2、然后用容器启动这个镜像 ...

优惠券活动
2018/12/09
0
0
使用 Dockerfile定制Java Web镜像

一、前言 对使用 Docker 搭建 Java Web 运行环境(利用 commit 理解镜像构成 来源:黄勇 )博文的归纳: 1、启动容器: docker run <相关参数> <镜像 ID> <初始命令> -i:表示以“交互模式”运...

吴伟祥
2018/11/16
818
0
Docker入门

声明:原创文章,转载请注明出处。http://www.jianshu.com/u/e02df63eaa87 1、概念 Dockerfile:一个文本格式的配置文件,可以使用Dockerfile快速构建自定义镜像。 镜像:用来构建这个环境的...

唐影若凡
2017/06/26
0
0

没有更多内容

加载失败,请刷新页面

加载更多

华为手机翻译功能怎么使用?这三种方法请务必收藏

华为手机翻译功能怎么使用?在我们的生活中会经常遇到翻译问题,许多外语不好的朋友该怎么办呢?华为手机已经为我们解决了这个问题,今天小编就教大家学会使用华为手机中的三种翻译技巧,需要...

翻译小天才
24分钟前
4
0
企业服务软件开发中需要注意的三个问题

在开发企业服务软件时,我们需要分为:业务需求、用户需求、产品需求,三大需求层次,三个层次互相关联,企业服务软件开发首先要服务业务,需要满足业务的需求,再关注用户体验,也就是用户需...

积木创意科技
27分钟前
4
0
C++容器底层数据结构

内置数组: int arr[10][10];memset(arr,0,10*10*sizeof(int)); //初始化int tmp[10][10];memcpy(arr, tmp, 10 * 10 * sizeof(int));//拷贝 void *memcpy(void *destin, void *source,......

SibylY
28分钟前
3
0
Dubbo-自适应拓展机制

背景 在 Dubbo 中,很多拓展都是通过 SPI 机制进行加载的,比如 Protocol、Cluster、LoadBalance 等,这些都是Dubbo的基础组件。这些基础组件的拓展不是在系统框架启动阶段被加载,而是拓展方...

rock-man
56分钟前
7
0
Kali安装fcitx输入法(五笔)

安装fcitx > sudo apt-get install fcitx-rime fcitx-config-gtk3 重启 > sudo reboot fcitx配置 效果就是这样 配置输入法切换 系统设置...

yeahlife
58分钟前
4
0

没有更多内容

加载失败,请刷新页面

加载更多

返回顶部
顶部
