使用 Fabric CA 生成 MSP

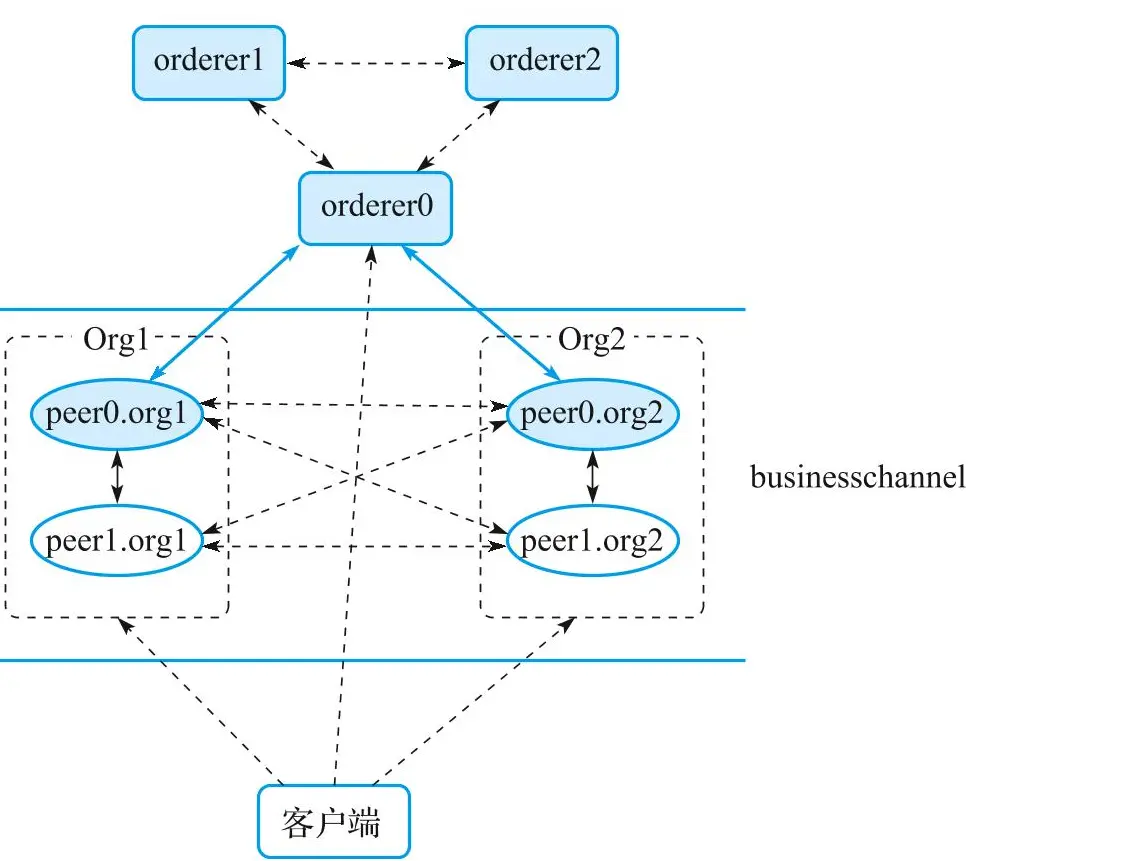

Fabric 网络拓扑

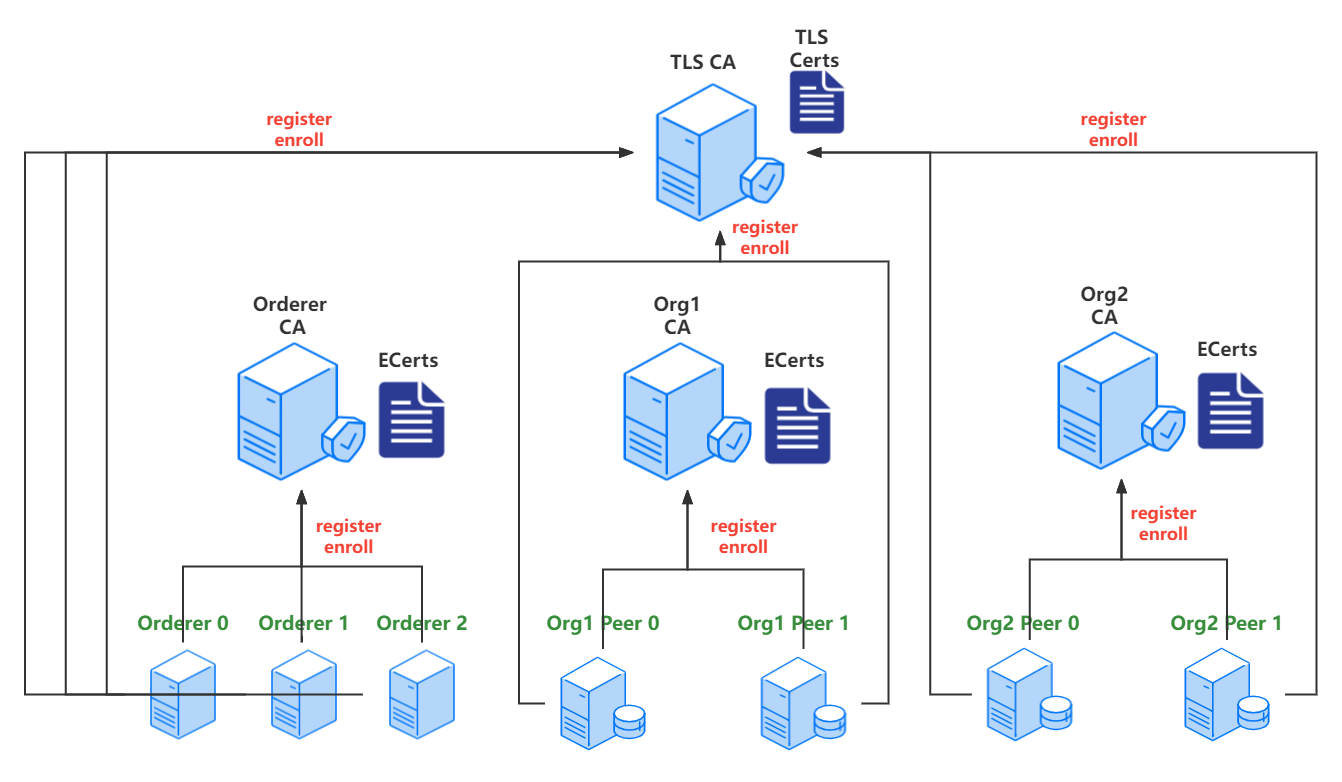

Fabric CA 网络拓扑


部署 Fabric CA

docker-compose-ca.yaml



version: '2.0'

networks:
  fabric-ca:
    name: fabric-ca

services:

  ca-tls:
    container_name: ca-tls
    image: hyperledger/fabric-ca
    command: sh -c 'fabric-ca-server start -d -b tls-ca-admin:tls-ca-adminpw --port 7052'
    environment:
      - FABRIC_CA_SERVER_HOME=/tmp/hyperledger/fabric-ca/crypto
      - FABRIC_CA_SERVER_TLS_ENABLED=true
      - FABRIC_CA_SERVER_CSR_CN=ca-tls
      - FABRIC_CA_SERVER_CSR_HOSTS=0.0.0.0
      - FABRIC_CA_SERVER_DEBUG=true
      - FABRIC_CA_SERVER_DB_TYPE=mysql
      - FABRIC_CA_SERVER_DB_DATASOURCE=root:root@tcp(192.168.2.54:3306)/fabric_ca_tls?parseTime=true
    volumes:
      - /tmp/hyperledger/tls-ca:/tmp/hyperledger/fabric-ca
    networks:
      - fabric-ca
    ports:
      - 7052:7052

  rca-org0:
    container_name: rca-org0
    image: hyperledger/fabric-ca
    command: /bin/bash -c 'fabric-ca-server start -d -b rca-org0-admin:rca-org0-adminpw --port 7053'
    environment:
      - FABRIC_CA_SERVER_HOME=/tmp/hyperledger/fabric-ca/crypto
      - FABRIC_CA_SERVER_TLS_ENABLED=true
      - FABRIC_CA_SERVER_CSR_CN=rca-org0
      - FABRIC_CA_SERVER_CSR_HOSTS=0.0.0.0
      - FABRIC_CA_SERVER_DEBUG=true
      - FABRIC_CA_SERVER_DB_TYPE=mysql
      - FABRIC_CA_SERVER_DB_DATASOURCE=root:root@tcp(192.168.2.54:3306)/fabric_rca_org0?parseTime=true
    volumes:
      - /tmp/hyperledger/org0/ca:/tmp/hyperledger/fabric-ca
    networks:
      - fabric-ca
    ports:
      - 7053:7053

  rca-org1:
    container_name: rca-org1
    image: hyperledger/fabric-ca
    command: /bin/bash -c 'fabric-ca-server start -d -b rca-org1-admin:rca-org1-adminpw'
    environment:
      - FABRIC_CA_SERVER_HOME=/tmp/hyperledger/fabric-ca/crypto
      - FABRIC_CA_SERVER_TLS_ENABLED=true
      - FABRIC_CA_SERVER_CSR_CN=rca-org1
      - FABRIC_CA_SERVER_CSR_HOSTS=0.0.0.0
      - FABRIC_CA_SERVER_DEBUG=true
      - FABRIC_CA_SERVER_DB_TYPE=mysql
      - FABRIC_CA_SERVER_DB_DATASOURCE=root:root@tcp(192.168.2.54:3306)/fabric_rca_org1?parseTime=true
    volumes:
      - /tmp/hyperledger/org1/ca:/tmp/hyperledger/fabric-ca
    networks:
      - fabric-ca
    ports:
      - 7054:7054

  rca-org2:
    container_name: rca-org2
    image: hyperledger/fabric-ca
    command: /bin/bash -c 'fabric-ca-server start -d -b rca-org2-admin:rca-org2-adminpw --port 7055'
    environment:
      - FABRIC_CA_SERVER_HOME=/tmp/hyperledger/fabric-ca/crypto
      - FABRIC_CA_SERVER_TLS_ENABLED=true
      - FABRIC_CA_SERVER_CSR_CN=rca-org2
      - FABRIC_CA_SERVER_CSR_HOSTS=0.0.0.0
      - FABRIC_CA_SERVER_DEBUG=true
      - FABRIC_CA_SERVER_DB_TYPE=mysql
      - FABRIC_CA_SERVER_DB_DATASOURCE=root:root@tcp(192.168.2.54:3306)/fabric_rca_org2?parseTime=true
    volumes:
      - /tmp/hyperledger/org2/ca:/tmp/hyperledger/fabric-ca
    networks:
      - fabric-ca
    ports:
      - 7055:7055

启动 fabric ca 服务:

docker-compose -f docker-compose-ca.yaml up -d

工作目录结构:


/tmp/hyperledger
├── fabric-ca-client
├── org0
├── org1
├── org2
└── tls-ca


注册 TLS CA 管理员,注册节点身份

export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/tls-ca/crypto/tls-ca-cert.pem
export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/tls-ca/admin

cp tls-ca/crypto/ca-cert.pem tls-ca/crypto/tls-ca-cert.pem

./fabric-ca-client enroll -d -u https://tls-ca-admin:tls-ca-adminpw@0.0.0.0:7052


注册 org1 的两个 peer 节点:

./fabric-ca-client register -d --id.name peer0.org1.example.com --id.secret peer1PW --id.type peer -u https://0.0.0.0:7052
./fabric-ca-client register -d --id.name peer1.org1.example.com --id.secret peer2PW --id.type peer -u https://0.0.0.0:7052

注册 org2 的两个 peer 节点:

./fabric-ca-client register -d --id.name peer0.org2.example.com --id.secret peer1PW --id.type peer -u https://0.0.0.0:7052
./fabric-ca-client register -d --id.name peer1.org2.example.com --id.secret peer2PW --id.type peer -u https://0.0.0.0:7052

注册 3 个 orderer 节点:

./fabric-ca-client register -d --id.name orderer0.example.com --id.secret ordererPW --id.type orderer -u https://0.0.0.0:7052

./fabric-ca-client register -d --id.name orderer1.example.com --id.secret ordererPW --id.type orderer -u https://0.0.0.0:7052

./fabric-ca-client register -d --id.name orderer2.example.com --id.secret ordererPW --id.type orderer -u https://0.0.0.0:7052

Enroll Orderer Org’s CA Admin

register orderer1 节点 & org0 管理员

export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org0/ca/crypto/ca-cert.pem
export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org0/ca/admin

./fabric-ca-client enroll -d -u https://rca-org0-admin:rca-org0-adminpw@0.0.0.0:7053

./fabric-ca-client register -d --id.name orderer0.example.com --id.secret ordererpw --id.type orderer -u https://0.0.0.0:7053

./fabric-ca-client register -d --id.name admin-org0 --id.secret org0adminpw --id.type admin --id.attrs "hf.Registrar.Roles=*,hf.Registrar.DelegateRoles=*,hf.AffiliationMgr=true,hf.Registrar.Attributes=*,hf.Revoker=true,hf.GenCRL=true,admin=true:ecert" -u https://0.0.0.0:7053

register orderer2 节点

./fabric-ca-client register -d --id.name orderer1.example.com --id.secret ordererpw --id.type orderer -u https://0.0.0.0:7053

register orderer3 节点

./fabric-ca-client register -d --id.name orderer2.example.com --id.secret ordererpw --id.type orderer -u https://0.0.0.0:7053

Enroll Org1’s CA Admin

export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org1/ca/crypto/ca-cert.pem
export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org1/ca/admin

./fabric-ca-client enroll -d -u https://rca-org1-admin:rca-org1-adminpw@0.0.0.0:7054

./fabric-ca-client register -d --id.name peer0.org1.example.com --id.secret peer1PW --id.type peer -u https://0.0.0.0:7054

./fabric-ca-client register -d --id.name peer1.org1.example.com --id.secret peer2PW --id.type peer -u https://0.0.0.0:7054

./fabric-ca-client register -d --id.name admin-org1 --id.secret org1AdminPW --id.type admin --id.attrs "hf.Registrar.Roles=*,hf.Registrar.DelegateRoles=*,hf.AffiliationMgr=true,hf.Registrar.Attributes=*,hf.Revoker=true,hf.GenCRL=true,admin=true:ecert" -u https://0.0.0.0:7054

./fabric-ca-client register -d --id.name user-org1 --id.secret org1UserPW --id.type user -u https://0.0.0.0:7054

Enrolling Org2’s CA Admin

export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org2/ca/crypto/ca-cert.pem
export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org2/ca/admin

./fabric-ca-client enroll -d -u https://rca-org2-admin:rca-org2-adminpw@0.0.0.0:7055

./fabric-ca-client register -d --id.name peer0.org2.example.com --id.secret peer1PW --id.type peer -u https://0.0.0.0:7055

./fabric-ca-client register -d --id.name peer1.org2.example.com --id.secret peer2PW --id.type peer -u https://0.0.0.0:7055

./fabric-ca-client register -d --id.name admin-org2 --id.secret org2AdminPW --id.type admin --id.attrs "hf.Registrar.Roles=*,hf.Registrar.DelegateRoles=*,hf.AffiliationMgr=true,hf.Registrar.Attributes=*,hf.Revoker=true,hf.GenCRL=true,admin=true:ecert" -u https://0.0.0.0:7055

./fabric-ca-client register -d --id.name user-org2 --id.secret org2UserPW --id.type user -u https://0.0.0.0:7055

Enroll Org1’s Peers

Enroll Org1 Peer1

enroll Org1 Peer1 ECert 证书

mkdir -p org1/peer1/assets/ca/ && cp org1/ca/crypto/ca-cert.pem org1/peer1/assets/ca/org1-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org1/peer1
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org1/peer1/assets/ca/org1-ca-cert.pem
export FABRIC_CA_CLIENT_MSPDIR=msp

./fabric-ca-client enroll -d -u https://peer0.org1.example.com:peer1PW@0.0.0.0:7054

# 更改私钥文件名称
mv org1/peer1/msp/keystore/2432163c466914126ceb45252b6d6cdcc5768c043f35b1e4d7614f0fba12736f_sk org1/peer1/msp/keystore/priv_sk

mkdir -p org1/peer1/msp/admincerts/

Enroll Org1 Peer1 TLS 证书

mkdir -p org1/peer1/assets/tls-ca/ && cp tls-ca/crypto/tls-ca-cert.pem org1/peer1/assets/tls-ca/tls-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org1/peer1
export FABRIC_CA_CLIENT_MSPDIR=tls-msp
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org1/peer1/assets/tls-ca/tls-ca-cert.pem

./fabric-ca-client enroll -d -u https://peer0.org1.example.com:peer1PW@0.0.0.0:7052 --enrollment.profile tls --csr.hosts peer0.org1.example.com

# 将 keystore 路径下的文件改名为 key.pem
mv org1/peer1/tls-msp/keystore/8d44368728e2be0dfc1b6c883e88d548cfbf1c1538f65682ebc3df4b11b2b61c_sk org1/peer1/tls-msp/keystore/key.pem

Enroll Peer2

Enroll Org1 Peer2 ECert 证书

mkdir -p org1/peer2/assets/ca/ && cp org1/ca/crypto/ca-cert.pem org1/peer2/assets/ca/org1-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org1/peer2
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org1/peer2/assets/ca/org1-ca-cert.pem
export FABRIC_CA_CLIENT_MSPDIR=msp

./fabric-ca-client enroll -d -u https://peer1.org1.example.com:peer2PW@0.0.0.0:7054

# 修改私钥文件名称
mv org1/peer2/msp/keystore/3549be7da2d926fad2475545502ebff7daaa545e240cbaf558f94900a9897e70_sk org1/peer2/msp/keystore/priv_sk

mkdir -p org1/peer2/msp/admincerts/

Enroll Org1 Peer1 TLS 证书

mkdir -p org1/peer2/assets/tls-ca/ && cp tls-ca/crypto/tls-ca-cert.pem org1/peer2/assets/tls-ca/tls-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org1/peer2
export FABRIC_CA_CLIENT_MSPDIR=tls-msp
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org1/peer2/assets/tls-ca/tls-ca-cert.pem

./fabric-ca-client enroll -d -u https://peer1.org1.example.com:peer2PW@0.0.0.0:7052 --enrollment.profile tls --csr.hosts peer1.org1.example.com

# 将 keystore 路径下的文件改名为 key.pem
mv org1/peer2/tls-msp/keystore/dc27baa8559aac2133dc34626d36b7fe6d63835fe82b2858e489f8a2f8db358f_sk org1/peer2/tls-msp/keystore/key.pem

Enroll Org1’s Admin

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org1/admin
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org1/peer1/assets/ca/org1-ca-cert.pem
export FABRIC_CA_CLIENT_MSPDIR=msp

./fabric-ca-client enroll -d -u https://admin-org1:org1AdminPW@0.0.0.0:7054

mv /tmp/hyperledger/org1/admin/msp/keystore/8efa890a38c1e38ca4605ecfcdb997f84e1c913c7abe731dc9e1a8e6e3934933_sk /tmp/hyperledger/org1/admin/msp/keystore/priv_sk

cp /tmp/hyperledger/org1/admin/msp/signcerts/cert.pem /tmp/hyperledger/org1/peer1/msp/admincerts/org1-admin-cert.pem

cp /tmp/hyperledger/org1/admin/msp/signcerts/cert.pem /tmp/hyperledger/org1/peer2/msp/admincerts/org1-admin-cert.pem

Enroll Org2’s Peers

Enroll Org2 Peer1

Enroll Org2 Peer1 ECert 证书

mkdir -p org2/peer1/assets/ca/ && cp org2/ca/crypto/ca-cert.pem org2/peer1/assets/ca/org2-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org2/peer1
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org2/peer1/assets/ca/org2-ca-cert.pem
export FABRIC_CA_CLIENT_MSPDIR=msp

./fabric-ca-client enroll -d -u https://peer0.org2.example.com:peer1PW@0.0.0.0:7055

# 修改私钥文件名称
mv org2/peer1/msp/keystore/bb058d805f66c8ee729afd10129df168e11cd8ed31cfd10c7ce02187db82166c_sk org2/peer1/msp/keystore/priv_sk

Enroll Org2 Peer1 TLS 证书

mkdir org2/peer1/assets/tls-ca/ && cp tls-ca/crypto/tls-ca-cert.pem org2/peer1/assets/tls-ca/tls-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org2/peer1
export FABRIC_CA_CLIENT_MSPDIR=tls-msp
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org2/peer1/assets/tls-ca/tls-ca-cert.pem

./fabric-ca-client enroll -d -u https://peer0.org2.example.com:peer1PW@0.0.0.0:7052 --enrollment.profile tls --csr.hosts peer0.org2.example.com

# 修改私钥文件名称
mv org2/peer1/tls-msp/keystore/eb795b5dbf2f6436f46469c2a2e8f5598e9335b5bc4cfbb280ee1b6867a90345_sk org2/peer1/tls-msp/keystore/key.pem

Enroll Org2 Peer2

Enroll Org2 Peer2 ECert 证书

mkdir -p org2/peer2/assets/ca/ && cp org2/ca/crypto/ca-cert.pem org2/peer2/assets/ca/org2-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org2/peer2
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org2/peer2/assets/ca/org2-ca-cert.pem
export FABRIC_CA_CLIENT_MSPDIR=msp

./fabric-ca-client enroll -d -u https://peer1.org2.example.com:peer2PW@0.0.0.0:7055

# 修改私钥文件名称
mv org2/peer2/msp/keystore/84a97f4e907eb88ffa81d3d570a8606e74256bcfb8859a1bec724b367c49880b_sk org2/peer2/msp/keystore/priv_sk

Enroll Org2 Peer2 TLS 证书

mkdir -p org2/peer2/assets/tls-ca/ && cp tls-ca/crypto/tls-ca-cert.pem org2/peer2/assets/tls-ca/tls-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org2/peer2
export FABRIC_CA_CLIENT_MSPDIR=tls-msp
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org2/peer2/assets/tls-ca/tls-ca-cert.pem

./fabric-ca-client enroll -d -u https://peer1.org2.example.com:peer2PW@0.0.0.0:7052 --enrollment.profile tls --csr.hosts peer1.org2.example.com

# 修改私钥文件名称
mv org2/peer2/tls-msp/keystore/010801fcb24fcf258f906fe1090e2b3b22e79cac16bf6ba14dee63e86203a24f_sk org2/peer2/tls-msp/keystore/key.pem

Enroll Org2’s Admin

mkdir -p org2/peer1/msp/admincerts
mkdir -p org2/peer2/msp/admincerts

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org2/admin
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org2/peer1/assets/ca/org2-ca-cert.pem
export FABRIC_CA_CLIENT_MSPDIR=msp

./fabric-ca-client enroll -d -u https://admin-org2:org2AdminPW@0.0.0.0:7055

cp org2/admin/msp/signcerts/cert.pem org2/peer1/msp/admincerts/org2-admin-cert.pem

cp org2/admin/msp/signcerts/cert.pem org2/peer2/msp/admincerts/org2-admin-cert.pem

Enroll Orderer

Enroll Orderer1

Enroll Orderer1 ECert 证书

mkdir -p org0/orderer1/assets/ca/ && cp org0/ca/crypto/ca-cert.pem org0/orderer1/assets/ca/org0-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org0/orderer1
export FABRIC_CA_CLIENT_MSPDIR=msp
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org0/orderer1/assets/ca/org0-ca-cert.pem

./fabric-ca-client enroll -d -u https://orderer0.example.com:ordererpw@0.0.0.0:7053

mv org0/orderer1/msp/keystore/308fb646f0ad42341a05c918b409617b620827560d2f2383ca24a6e3982cb197_sk org0/orderer1/msp/keystore/priv_sk

Enroll Orderer1 TLS 证书

mkdir -p org0/orderer1/assets/tls-ca/ && cp tls-ca/crypto/tls-ca-cert.pem org0/orderer1/assets/tls-ca/tls-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org0/orderer1
export FABRIC_CA_CLIENT_MSPDIR=tls-msp
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org0/orderer1/assets/tls-ca/tls-ca-cert.pem

./fabric-ca-client enroll -d -u https://orderer0.example.com:ordererPW@0.0.0.0:7052 --enrollment.profile tls --csr.hosts 'orderer0.example.com,orderer0,192.169.0.105'

mv org0/orderer1/tls-msp/keystore/c2cce90a7f26f197e457e5111d6728d6c3d463988b9be7cd056852f00b3ea400_sk org0/orderer1/tls-msp/keystore/key.pem

Enroll Orderer2

Enroll Orderer2 ECert 证书

mkdir -p org0/orderer2/assets/ca/ && cp org0/ca/crypto/ca-cert.pem org0/orderer2/assets/ca/org0-ca-cert.pem

export FABRIC_CA_CLIENT_MSPDIR=msp
export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org0/orderer2
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org0/orderer2/assets/ca/org0-ca-cert.pem

./fabric-ca-client enroll -d -u https://orderer1.example.com:ordererpw@0.0.0.0:7053

mv org0/orderer2/msp/keystore/831a45f3df3d6c9c474b3dfffa526a05785e8bac3676334ef680f84f68a17ee2_sk org0/orderer2/msp/keystore/priv_sk

Enroll Orderer2 TLS 证书

mkdir -p org0/orderer2/assets/tls-ca/ && cp tls-ca/crypto/tls-ca-cert.pem org0/orderer2/assets/tls-ca/tls-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org0/orderer2
export FABRIC_CA_CLIENT_MSPDIR=tls-msp
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org0/orderer2/assets/tls-ca/tls-ca-cert.pem

./fabric-ca-client enroll -d -u https://orderer1.example.com:ordererPW@0.0.0.0:7052 --enrollment.profile tls --csr.hosts 'orderer1.example.com,orderer1,192.168.0.105'

mv org0/orderer2/tls-msp/keystore/ceadf80a731d7a88db54af9a7a15152bf75359a840d518f74768ae1c814082b0_sk org0/orderer2/tls-msp/keystore/key.pem

Enroll Orderer3

Enroll Orderer3 ECert 证书

mkdir -p org0/orderer3/assets/ca/ && cp org0/ca/crypto/ca-cert.pem org0/orderer3/assets/ca/org0-ca-cert.pem

export FABRIC_CA_CLIENT_MSPDIR=msp
export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org0/orderer3
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org0/orderer3/assets/ca/org0-ca-cert.pem

./fabric-ca-client enroll -d -u https://orderer2.example.com:ordererpw@0.0.0.0:7053

mv org0/orderer3/msp/keystore/ca8de010ce09bb6da6f5604e913f975c1cfa80281d3a89040dfd320c8c756ba0_sk org0/orderer3/msp/keystore/priv_sk

Enroll Orderer3 TLS 证书

mkdir -p org0/orderer3/assets/tls-ca/ && cp tls-ca/crypto/tls-ca-cert.pem org0/orderer3/assets/tls-ca/tls-ca-cert.pem

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org0/orderer3
export FABRIC_CA_CLIENT_MSPDIR=tls-msp
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org0/orderer3/assets/tls-ca/tls-ca-cert.pem

./fabric-ca-client enroll -d -u https://orderer2.example.com:ordererPW@0.0.0.0:7052 --enrollment.profile tls --csr.hosts 'orderer2.example.com,orderer2,192.168.0.105'

mv org0/orderer3/tls-msp/keystore/889f112d9bc39d73e6ac7dc5ac6d4e340bdf690859a75b2d813a60546cddbf45_sk org0/orderer3/tls-msp/keystore/key.pem


Enroll Org0’s Admin

export FABRIC_CA_CLIENT_HOME=/tmp/hyperledger/org0/admin
export FABRIC_CA_CLIENT_TLS_CERTFILES=/tmp/hyperledger/org0/ca/crypto/ca-cert.pem
export FABRIC_CA_CLIENT_MSPDIR=msp

./fabric-ca-client enroll -d -u https://admin-org0:org0adminpw@0.0.0.0:7053

mv /tmp/hyperledger/org0/admin/msp/keystore/58611ce1d5edfc0c73067400aedc0ff7abcb663f674b23a337c529dfd9afe331_sk /tmp/hyperledger/org0/admin/msp/keystore/priv_sk


mkdir /tmp/hyperledger/org0/orderer1/msp/admincerts && cp /tmp/hyperledger/org0/admin/msp/signcerts/cert.pem /tmp/hyperledger/org0/orderer1/msp/admincerts/orderer-admin-cert.pem


mkdir /tmp/hyperledger/org0/orderer2/msp/admincerts && cp /tmp/hyperledger/org0/admin/msp/signcerts/cert.pem /tmp/hyperledger/org0/orderer2/msp/admincerts/orderer-admin-cert.pem


mkdir /tmp/hyperledger/org0/orderer3/msp/admincerts && cp /tmp/hyperledger/org0/admin/msp/signcerts/cert.pem /tmp/hyperledger/org0/orderer3/msp/admincerts/orderer-admin-cert.pem

构建 Orderer 本地 MSP 结构

Orderer 1 Local MSP

mkdir -p crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/msp

mkdir -p crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls

# TLS 私钥
cp org0/orderer1/tls-msp/keystore/key.pem crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/server.key

# TLS 签名证书
cp org0/orderer1/tls-msp/signcerts/cert.pem crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/server.crt

# TLS 根证书
cp org0/orderer1/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/tls/ca.crt

cp -r org0/orderer1/msp/ crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/

mv crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/cacerts/0-0-0-0-7053.pem crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/cacerts/ca.example.com-cert.pem

mkdir -p crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts && cp org0/orderer1/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

# 编写 config.yaml 文件
vim crypto-config/ordererOrganizations/example.com/orderers/orderer0.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: orderer

Orderer 2 Local MSP

mkdir -p crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/msp

mkdir -p crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls

# TLS 私钥
cp org0/orderer2/tls-msp/keystore/key.pem crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/server.key

# TLS 签名证书
cp org0/orderer2/tls-msp/signcerts/cert.pem crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/server.crt

# TLS 根证书
cp org0/orderer2/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/tls/ca.crt

# MSP
cp -r org0/orderer2/msp/ crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/

mv crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/msp/cacerts/0-0-0-0-7053.pem crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/msp/cacerts/ca.example.com-cert.pem

mkdir -p crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/msp/tlscacerts && cp org0/orderer2/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

# 编写 config.yaml 文件
vim crypto-config/ordererOrganizations/example.com/orderers/orderer1.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: orderer

Orderer 3 Local MSP

mkdir -p crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp

mkdir -p crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls

# TLS 私钥
cp org0/orderer3/tls-msp/keystore/key.pem crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.key

# TLS 签名证书
cp org0/orderer3/tls-msp/signcerts/cert.pem crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/server.crt

# TLS 根证书
cp org0/orderer3/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/ca.crt

# MSP
cp -r org0/orderer3/msp/ crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/

mv crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp/cacerts/0-0-0-0-7053.pem crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp/cacerts/ca.example.com-cert.pem

mkdir -p crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp/tlscacerts && cp org0/orderer3/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

# 编写 config.yaml 文件
vim crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: orderer

crypto-config/ordererOrganizations/example.com/msp/

mkdir -p crypto-config/ordererOrganizations/example.com/msp/admincerts
mkdir -p crypto-config/ordererOrganizations/example.com/msp/cacerts
mkdir -p crypto-config/ordererOrganizations/example.com/msp/tlscacerts

cp org0/orderer1/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/ordererOrganizations/example.com/msp/tlscacerts/tlsca.example.com-cert.pem

cp org0/orderer1/msp/cacerts/0-0-0-0-7053.pem crypto-config/ordererOrganizations/example.com/msp/cacerts/ca.example.com-cert.pem

cp /tmp/hyperledger/org0/admin/msp/signcerts/cert.pem crypto-config/ordererOrganizations/example.com/msp/admincerts/orderer-admin-cert.pem

# 编写 config.yaml 文件
vim crypto-config/ordererOrganizations/example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/ca.example.com-cert.pem
    OrganizationalUnitIdentifier: orderer

构建 Org1 Peer 本地 MSP 结构

Org1 Peer1 Local MSP

mkdir -p crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/ && cp -r org1/peer1/msp/ crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com

mkdir -p crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls

cp org1/peer1/tls-msp/signcerts/cert.pem crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt

cp org1/peer1/tls-msp/keystore/key.pem crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key

cp org1/peer1/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt

# 编写 config.yaml 文件
vim crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: orderer

Org1 Peer2 Local MSP

mkdir -p crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/ && cp -r org1/peer2/msp/ crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/

mkdir -p crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls

cp org1/peer2/tls-msp/signcerts/cert.pem crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/server.crt

cp org1/peer2/tls-msp/keystore/key.pem crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/server.key

cp org1/peer2/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt

# 编写 config.yaml 文件
vim crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: orderer

crypto-config/peerOrganizations/org1.example.com/msp

mkdir -p crypto-config/peerOrganizations/org1.example.com/msp/admincerts
mkdir -p crypto-config/peerOrganizations/org1.example.com/msp/cacerts
mkdir -p crypto-config/peerOrganizations/org1.example.com/msp/tlscacerts

cp org1/admin/msp/cacerts/0-0-0-0-7054.pem crypto-config/peerOrganizations/org1.example.com/msp/cacerts/ca.org1.example.com-cert.pem

cp org1/peer1/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/peerOrganizations/org1.example.com/msp/tlscacerts/tlsca.org1.example.com-cert.pem

cp /tmp/hyperledger/org1/admin/msp/signcerts/cert.pem crypto-config/peerOrganizations/org1.example.com/msp/admincerts/org1-admin-cert.pem

# 编写 config.yaml 文件
vim crypto-config/peerOrganizations/org1.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/ca.org1.example.com-cert.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/ca.org1.example.com-cert.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/ca.org1.example.com-cert.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/ca.org1.example.com-cert.pem
    OrganizationalUnitIdentifier: orderer

crypto-config/peerOrganizations/org1.example.com/users

mkdir -p crypto-config/peerOrganizations/org1.example.com/users/Admin@org1.example.com

cp -r org1/admin/msp/ crypto-config/peerOrganizations/org1.example.com/users/Admin@org1.example.com

mkdir -p crypto-config/peerOrganizations/org1.example.com/users/Admin\@org1.example.com/msp/admincerts

cp /tmp/hyperledger/org1/admin/msp/signcerts/cert.pem crypto-config/peerOrganizations/org1.example.com/users/Admin\@org1.example.com/msp/admincerts/org1-admin-cert.pem

mkdir -p crypto-config/peerOrganizations/org1.example.com/users/Admin\@org1.example.com/msp/tlscacerts

cp org1/peer1/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/peerOrganizations/org1.example.com/users/Admin\@org1.example.com/msp/tlscacerts/tlsca.org1.example.com-cert.pem


# 编写 config.yaml 文件
vim crypto-config/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/0-0-0-0-7054.pem
    OrganizationalUnitIdentifier: orderer


构建 Org2 Peer 本地 MSP 结构

Org2 Peer1 Local MSP

mkdir -p crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/ && cp -r org2/peer1/msp/ crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com

mkdir -p crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls

cp org2/peer1/tls-msp/signcerts/cert.pem crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.crt

cp org2/peer1/tls-msp/keystore/key.pem crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.key

cp org2/peer1/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt

# 编写 config.yaml 文件
vim crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: orderer

Org2 Peer2 Local MSP

mkdir -p crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/ && cp -r org2/peer2/msp/ crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/

mkdir -p crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls

cp org2/peer2/tls-msp/signcerts/cert.pem crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/server.crt

cp org2/peer2/tls-msp/keystore/key.pem crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/server.key

cp org2/peer2/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt

# 编写 config.yaml 文件
vim crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: orderer

crypto-config/peerOrganizations/org2.example.com/msp

mkdir -p crypto-config/peerOrganizations/org2.example.com/msp/admincerts
mkdir -p crypto-config/peerOrganizations/org2.example.com/msp/cacerts
mkdir -p crypto-config/peerOrganizations/org2.example.com/msp/tlscacerts

cp org2/admin/msp/cacerts/0-0-0-0-7055.pem crypto-config/peerOrganizations/org2.example.com/msp/cacerts/ca.org2.example.com-cert.pem

cp org2/peer1/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/peerOrganizations/org2.example.com/msp/tlscacerts/tlsca.org2.example.com-cert.pem

cp /tmp/hyperledger/org2/admin/msp/signcerts/cert.pem crypto-config/peerOrganizations/org2.example.com/msp/admincerts/org2-admin-cert.pem

# 编写 config.yaml 文件
vim crypto-config/peerOrganizations/org2.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/ca.org2.example.com-cert.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/ca.org2.example.com-cert.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/ca.org2.example.com-cert.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/ca.org2.example.com-cert.pem
    OrganizationalUnitIdentifier: orderer


crypto-config/peerOrganizations/org2.example.com/users

mkdir -p crypto-config/peerOrganizations/org2.example.com/users/Admin@org2.example.com

cp -r org2/admin/msp/ crypto-config/peerOrganizations/org2.example.com/users/Admin@org2.example.com

mkdir -p crypto-config/peerOrganizations/org2.example.com/users/Admin\@org2.example.com/msp/admincerts

cp /tmp/hyperledger/org2/admin/msp/signcerts/cert.pem crypto-config/peerOrganizations/org2.example.com/users/Admin\@org2.example.com/msp/admincerts/org2-admin-cert.pem

mkdir -p crypto-config/peerOrganizations/org2.example.com/users/Admin\@org2.example.com/msp/tlscacerts

cp org2/peer1/tls-msp/tlscacerts/tls-0-0-0-0-7052.pem crypto-config/peerOrganizations/org2.example.com/users/Admin\@org2.example.com/msp/tlscacerts/tlsca.org2.example.com-cert.pem

# 编写 config.yaml 文件
vim crypto-config/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp/config.yaml

NodeOUs:
  Enable: true
  ClientOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: client
  PeerOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: peer
  AdminOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: admin
  OrdererOUIdentifier:
    Certificate: cacerts/0-0-0-0-7055.pem
    OrganizationalUnitIdentifier: orderer


准备好 MSP 目录结构后就可以搭建 Fabric 网络了。

展开阅读全文
加载中

作者的其它热门文章

打赏
0
0 收藏
分享
打赏
0 评论
0 收藏
0
分享
返回顶部
顶部
