前端部分，这里基于vue-element-admin模板来演示， vue-element-admin是一个后台前端解决方案，它基于vue和element-ui实现。
1. 安装 vue-element-admin
# 克隆项目
git clone https://github.com/PanJiaChen/vue-element-admin.git
# 进入项目目录
cd vue-element-admin
# 安装依赖， 建议不要用 cnpm 安装 会有各种诡异的bug 可以通过如下操作解决 npm 下载速度慢的问题
npm install --registry=https://registry.npm.taobao.org
# 本地开发 启动项目
npm run dev
2. 改造前端路由挂载方式
vue-element-admin中权限的实现方式是：通过获取当前用户的权限去比对路由表，生成当前用户具有的权限可访问的路由表，通过router.addRoutes动态挂载到router上。
这里改造得更灵活一点，后台根据用户计算出可访问得菜单列表，直接返回用户可访问得菜单列表，前端也需要保存一份全的路由表，用户登录后得到可访问菜单，匹配前端保存的路由表然后动态挂载。
用户登录成功之后，在全局钩子router.beforeEach中拦截路由，判断是否已获得token，在获得token之后我们就要去获取用户的基本信息及可访问菜单，然后动态挂载路由。
/**
* src/permission.js
*/
// router.beforeEach
const hasRoles = store.getters.roles && store.getters.roles.length > 0
if (hasRoles) {
next()
} else {
// get user info
const { menus } = await store.dispatch('user/getInfo')
// generate accessible routes map based on menus
const accessRoutes = await store.dispatch('permission/generateRoutes', menus)
// dynamically add accessible routes
router.addRoutes(accessRoutes)
// ... other code
}
2.1 根据接口返回的菜单列表menus动态挂载路由

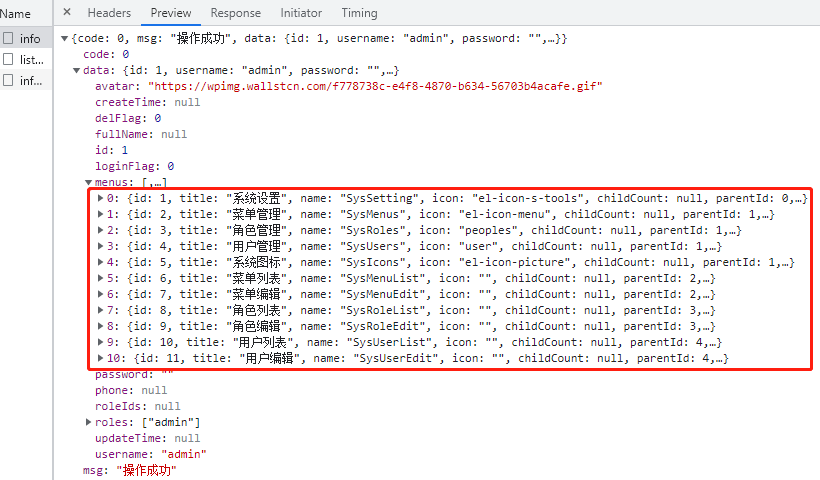

接口返回菜单数据：
动态挂载路由：
/**
* src\store\modules\permission.js
*/
import { constantRoutes, asyncRoutes, afterRoutes } from '@/router'
/**
* 返回当前路由名称对应的菜单
* @param menus 菜单列表
* @param name 路由名称
*/
function filterMeun(menus, name) {
if (name) {
for (let i = 0; i < menus.length; i++) {
const menu = menus[i]
if (name === menu.name) {
return menu
}
}
}
return null
}
/**
* 通过后台请求的菜单列表递归过滤路由表
* @param routes asyncRoutes
* @param menus 接口返回的菜单
*/
export function filterAsyncRoutes(routes, menus) {
const res = []
routes.forEach(route => {
const tmp = { ...route }
const meun = filterMeun(menus, tmp.name)
if (meun != null && meun.title) {
tmp.hidden = meun.hidden !== 0
// 显示的菜单替换后台设置的标题
if (!tmp.hidden) {
tmp.meta.title = meun.title
tmp.sort = meun.sort
}
if (meun.icon) {
tmp.meta.icon = meun.icon
}
if (tmp.children) {
tmp.children = filterAsyncRoutes(tmp.children, menus)
}
res.push(tmp)
}
})
return res
}
/**
* 对菜单进行排序
*/
function sortRouters(accessedRouters) {
for (let i = 0; i < accessedRouters.length; i++) {
const router = accessedRouters[i]
if (router.children && router.children.length > 0) {
router.children.sort(compare('sort'))
}
}
accessedRouters.sort(compare('sort'))
}
/**
* 升序比较函数
*/
function compare(p) {
return (m, n) => {
const a = m[p]
const b = n[p]
return a - b
}
}
const state = {
routes: [],
addRoutes: []
}
const mutations = {
SET_ROUTES: (state, routes) => {
state.addRoutes = routes
state.routes = constantRoutes.concat(routes)
}
}
const actions = {
generateRoutes({ commit }, menus) {
return new Promise(resolve => {
// 通过后台请求的菜单列表递归过滤路由表
const roleAsyncRoutes = filterAsyncRoutes(asyncRoutes, menus)
// 对可访问菜单进行排序
sortRouters(roleAsyncRoutes)
// 拼接尾部公共菜单
const accessedRoutes = roleAsyncRoutes.concat(afterRoutes)
commit('SET_ROUTES', accessedRoutes)
resolve(accessedRoutes)
})
}
}
export default {
namespaced: true,
state,
mutations,
actions
}
2.2 前端保存的全路径路由表
/**
* src\router\index.js
*/
import Vue from 'vue'
import Router from 'vue-router'
Vue.use(Router)
import Layout from '@/layout'
/**
* 没有权限要求的基本路由
*/
export const constantRoutes = [
{
path: '/redirect',
component: Layout,
hidden: true,
children: [
{
path: '/redirect/:path(.*)',
component: () => import('@/views/redirect/index')
}
]
},
{
path: '/login',
component: () => import('@/views/login/index'),
hidden: true
},
{
path: '/404',
component: () => import('@/views/error-page/404'),
hidden: true
},
{
path: '/',
component: Layout,
redirect: '/dashboard',
children: [
{
path: 'dashboard',
component: () => import('@/views/dashboard/index'),
name: 'Dashboard',
meta: { title: '后台首页', icon: 'dashboard', affix: true }
}
]
},
{
path: '/profile',
component: Layout,
redirect: '/profile/index',
hidden: true,
children: [
{
path: 'index',
component: () => import('@/views/profile/index'),
name: 'Profile',
meta: { title: '个人中心', icon: 'user', noCache: true }
}
]
}
]
/**
* 动态加载的路由
*/
export const asyncRoutes = [
{
path: '/sys',
component: Layout,
redirect: '/sys/menus',
alwaysShow: true, // will always show the root menu
name: 'SysSetting', // name必须和后台配置一致，不然匹配不到
meta: { title: '系统设置', icon: 'el-icon-s-tools' },
children: [
{
path: 'menus',
component: () => import('@/views/sys/menus/index'),
redirect: '/sys/menus/list',
name: 'SysMenus',
meta: { title: '菜单管理', icon: 'el-icon-menu' },
children: [
{
path: 'list',
hidden: true,
component: () => import('@/views/sys/menus/list.vue'),
name: 'SysMenuList',
meta: { title: '菜单列表' }
},
{
path: 'edit',
hidden: true,
component: () => import('@/views/sys/menus/form.vue'),
name: 'SysMenuEdit',
meta: { title: '编辑菜单' }
},
{
path: 'add',
hidden: true,
component: () => import('@/views/sys/menus/form.vue'),
name: 'SysMenuEdit',
meta: { title: '添加菜单' }
}
]
},
{
path: 'roles',
component: () => import('@/views/sys/roles/index'),
redirect: '/sys/roles/list',
name: 'SysRoles',
meta: { title: '角色管理', icon: 'lock' },
children: [
{
path: 'list',
hidden: true,
component: () => import('@/views/sys/roles/list.vue'),
name: 'SysRoleList',
meta: { title: '角色列表' }
},
{
path: 'edit',
hidden: true,
component: () => import('@/views/sys/roles/form.vue'),
name: 'SysRoleEdit',
meta: { title: '编辑角色' }
},
{
path: 'add',
hidden: true,
component: () => import('@/views/sys/roles/form.vue'),
name: 'SysRoleEdit',
meta: { title: '添加角色' }
}
]
},
{
path: 'users',
component: () => import('@/views/sys/users/index'),
redirect: '/sys/users/list',
name: 'SysUsers',
meta: { title: '用户管理', icon: 'user' },
children: [
{
path: 'list',
hidden: true,
component: () => import('@/views/sys/users/list.vue'),
name: 'SysUserList',
meta: { title: '用户列表' }
},
{
path: 'add',
hidden: true,
component: () => import('@/views/sys/users/form.vue'),
name: 'SysUserEdit',
meta: { title: '添加用户' }
},
{
path: 'edit',
hidden: true,
component: () => import('@/views/sys/users/form.vue'),
name: 'SysUserEdit',
meta: { title: '编辑用户' }
}
]
},
{
path: 'icons',
component: () => import('@/views/sys/icons/index'),
name: 'SysIcons',
meta: { title: '系统图标', icon: 'el-icon-picture', noCache: true }
}
]
},
/** when your routing map is too long, you can split it into small modules **/
// componentsRouter,
// chartsRouter,
// nestedRouter,
// tableRouter,
]
/**
* 没有权限要求的底部基本路由
*/
export const afterRoutes = [
{
path: 'external-link',
component: Layout,
children: [
{
path: 'https://www.test.com/',
meta: { title: '友情链接', icon: 'link' }
}
]
},
// 404 page must be placed at the end !!!
{ path: '*', redirect: '/404', hidden: true }
]
const createRouter = () =>
new Router({
// mode: 'history', // require service support
scrollBehavior: () => ({ y: 0 }),
routes: constantRoutes
})
const router = createRouter()
// Detail see: https://github.com/vuejs/vue-router/issues/1234#issuecomment-357941465
export function resetRouter() {
const newRouter = createRouter()
router.matcher = newRouter.matcher // reset router
}
export default router
源码地址：https://github.com/chaooo/spring-security-jwt.git, 这里我将本文的前后端分离后台菜单权限控制放在github源码tag的V4.0中，防止后续修改后代码对不上。
