开发环境下的RocketMQ完整安装步骤、错误分析以及示例

原创
2020/05/24 11:03
阅读数 905

在看这文章之前建议先看看先前架构原理介绍文章:

RocketMQ服务器启动

linux环境

  1. 下载编译源码

      # 下载$
      > wget wget http://mirror.bit.edu.cn/apache/rocketmq/4.6.0/rocketmq-all-4.6.0-source- >
      # 解压$
      >unzip rocketmq-all-4.7.0-source-release.zip
      > cd rocketmq-all-4.7.0/
      # 编译$
      > mvn -Prelease-all -DskipTests clean install -U
      > cd distribution/target/rocketmq-4.7.0/rocketmq-4.7.0

  2. 启动 Name Server

     # 启动 Name Server 服务
     > nohup sh bin/mqnamesrv &
     # 启动完成后,查看日志$
     > tail -f ~/logs/rocketmqlogs/namesrv.log
      The Name Server boot success...

  3. 启动 Broker

    conf 目录下,RocketMQ 提供了多种 Broker 的配置文件:

    • broker.conf :单主,异步刷盘。
    • 2m/ :双主,异步刷盘。
    • 2m-2s-async/ :两主两从,异步复制,异步刷盘。
    • 2m-2s-sync/ :两主两从,同步复制,异步刷盘。
    • dledger/ :Dledger 集群,至少三节点
     # 启动 Broker服务
     > nohup sh bin/mqbroker -n localhost:9876 &
     # 启动完成后,查看日志$
     > tail -f ~/logs/rocketmqlogs/broker.log
      The broker[%s, 172.30.30.233:10911] boot success...


    其中,参数:

    • 通过 -c 参数,配置读取的主 Broker 配置
    • 通过 -n 参数,设置 RocketMQ Namesrv 地址
  4. 关闭服务器

    > sh bin/mqshutdown broker
    The mqbroker(36695) is running...
    Send shutdown request to mqbroker(36695) OK

    > sh bin/mqshutdown namesrv
    The mqnamesrv(36664) is running...
    Send shutdown request to mqnamesrv(36664


windows环境

  1. 首先去官网下载编译之后的版本,然后解压到本地目录

    官网链接:http://rocketmq.apache.org/dowloading/releases/
    下载目标:Binary: [rocketmq-all-4.7.0-bin-release.zip

  2. 配置ROCKETMQ_HOME到系统环境变量中,启动脚本将读取ROCKETMQ_HOME变量

  3. 分别进入bin目录下 启动如下脚本(需要设置内存参数,防止内存过大,启动失败,具体看<常出现的错误>小节):

    3.1 启动namesrv

    运行命令:

    mqnamesrv.cmd


    log : The Name Server boot success. serializeType=JSON

    3.2 启动brokerserver

    运行命令:

    mqbroker.cmd -n localhost:9876


    log : The broker[IQSZ-L01898, 10.111.45.111:10911] boot success. serializeType=JSON and name server is localhost:9876

  4. 关闭服务器

    mqshutdown.cmd broker

    log:killing name server

    mqshutdown.cmd namesrv

    log:killing broker

RocketMQ发送消息和消费消息

RocketMQ发送消息和消费消息,先启动消费者,然后再启动生产者

添加依赖

<dependency>
    <groupId>org.apache.rocketmq</groupId>
    <artifactId>rocketmq-client</artifactId>
    <version>4.3.0</version>
</dependency>

发送消息

发送消息--同步

public class SyncProducer {
    public static void main(String[] args) throws Exception {
        //Instantiate with a producer group name.
        DefaultMQProducer producer = new
            DefaultMQProducer("test-group");
        // Specify name server addresses.
        producer.setNamesrvAddr("localhost:9876");
        //Launch the instance.
        producer.start();
        for (int i = 0; i < 100; i++) {
            //Create a message instance, specifying topic, tag and message body.
            Message msg = new Message("TopicTest" /* Topic */,
                "TagA" /* Tag */,
                ("Hello RocketMQ " +
                    i).getBytes(RemotingHelper.DEFAULT_CHARSET) /* Message body */
            );
            //Call send message to deliver message to one of brokers.
            SendResult sendResult = producer.send(msg);
            System.out.printf("%s%n", sendResult);
        }
        //Shut down once the producer instance is not longer in use.
        producer.shutdown();
    }
}

发送消息--异步

public class AsyncProducer {
    public static void main(String[] args) throws Exception {
        //Instantiate with a producer group name.
        DefaultMQProducer producer = new DefaultMQProducer("test—group");
        // Specify name server addresses.
        producer.setNamesrvAddr("localhost:9876");
        //Launch the instance.
        producer.start();
        producer.setRetryTimesWhenSendAsyncFailed(0);
        for (int i = 0; i < 100; i++) {
                final int index = i;
                //Create a message instance, specifying topic, tag and message body.
                Message msg = new Message("TopicTest",
                    "TagA",
                    "OrderID188",
                    "Hello world".getBytes(RemotingHelper.DEFAULT_CHARSET));
                producer.send(msg, new SendCallback() {
                    @Override
                    public void onSuccess(SendResult sendResult) {
                        System.out.printf("%-10d OK %s %n", index,
                            sendResult.getMsgId());
                    }
                    @Override
                    public void onException(Throwable e) {
                        System.out.printf("%-10d Exception %s %n", index, e);
                        e.printStackTrace();
                    }
                });
        }
        //Shut down once the producer instance is not longer in use.
        producer.shutdown();
    }

发送消息--单向

public class OnewayProducer {
    public static void main(String[] args) throws Exception{
        //Instantiate with a producer group name.
        DefaultMQProducer producer = new DefaultMQProducer("please_rename_unique_group_name");
        // Specify name server addresses.
        producer.setNamesrvAddr("localhost:9876");
        //Launch the instance.
        producer.start();
        for (int i = 0; i < 100; i++) {
            //Create a message instance, specifying topic, tag and message body.
            Message msg = new Message("TopicTest" /* Topic */,
                "TagA" /* Tag */,
                ("Hello RocketMQ " +
                    i).getBytes(RemotingHelper.DEFAULT_CHARSET) /* Message body */
            );
            //Call send message to deliver message to one of brokers.
            producer.sendOneway(msg);

        }
        //Shut down once the producer instance is not longer in use.
        producer.shutdown();
    }
}

消费消息

public class Consumer {

    public static void main(String[] args) throws InterruptedException, MQClientException {

        // Instantiate with specified consumer group name.
        DefaultMQPushConsumer consumer = new DefaultMQPushConsumer("test-group");

        // Specify name server addresses.
        consumer.setNamesrvAddr("localhost:9876");

        // Subscribe one more more topics to consume.
        consumer.subscribe("TopicTest", "*");
        // Register callback to execute on arrival of messages fetched from brokers.
        consumer.registerMessageListener(new MessageListenerConcurrently() {

            @Override
            public ConsumeConcurrentlyStatus consumeMessage(List<MessageExt> msgs,
                ConsumeConcurrentlyContext context) {
                System.out.printf("%s Receive New Messages: %s %n", Thread.currentThread().getName(), msgs);
                return ConsumeConcurrentlyStatus.CONSUME_SUCCESS;
            }
        });

        //Launch the consumer instance.
        consumer.start();

        System.out.printf("Consumer Started.%n");
    }

常出现的错误

安装中出现的错误

防止内存设置过大

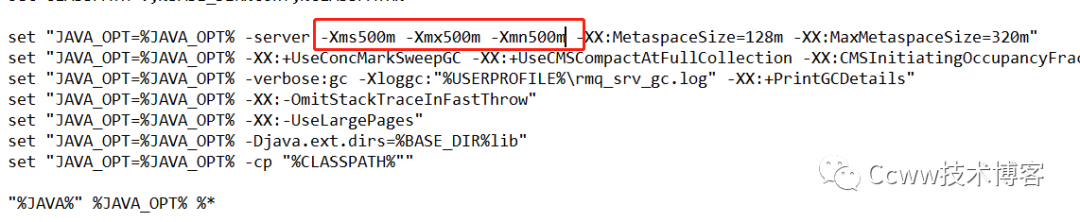

修改runbroker.cmd配置文件

set "JAVA_OPT=%JAVA_OPT% -server -Xms500m -Xmx500m -Xmn500m"

set "JAVA_OPT=%JAVA_OPT% -XX:MaxDirectMemorySize=1g"

修改runserver.cmd配置文件

set "JAVA_OPT=%JAVA_OPT% -server -Xms500m -Xmx500m -Xmn500m -XX:MetaspaceSize=128m -XX:MaxMetaspaceSize=320m"

启动NAMESERVER报错

unrecognized vm option 'MetasoaceSize=128m'

解决方法:更换jdk版本为1.8即可

启动BROKER报错

错误: 找不到或无法加载主类 xxxxxx’

解决方法:打开runbroker.cmd(windows),然后将‘%CLASSPATH%’加上英文双引

使用过程中出现的错误

No route info of this topic
  1. Broker禁止自动创建Topic,且用户没有通过手工方式创建Topic

    查看是否允许自动创建topic

    命令:mqbroker.cmd -n localhost:9876 -p

    mq开启自动创建topic参数

    命令:mqbroker.cmd -n localhost:9876 autoCreateTopicEnable=true

  2. Broker 没有正确连接到 Name Server

    查看broker.log日志

    位置: /安装目录/conf/logback_broker.xml中日志位置

    日志信息:broker.log

    日志信息:namesrv.log

  3. Producer 没有正确连接到 Name Server

    linux环境:查询防火墙是否通

错误分析方法

日志分析法:

  1. 查看broker日志

    • 关注broker是否有注册到nameserver

      register broker to name server localhost:9876 OK

    • 关注生产者是否连接到broker

      new producer connected, group: test_group channel: ClientChannelInfo ...

    • 查看已经创建的topic是否包含自己想要的topic

      2020-04-21 15:58:22 INFO main - load exist local topic, TopicConfig [topicName=test_group, readQueueNums=1, writeQueueNums=1, perm=RW-, topicFilterType=SINGLE_TAG, topicSysFlag=0, order=false] ...

    • 查看消费者是否连接到broker

      new consumer connected, group: test_group CONSUME_PASSIVELY CLUSTERING channel: ClientChannelInfo ...

  2. 查看nameserver日志

    • 关注broker是否注册到nameserver

      new broker registered, localhost:10911

    • 查看topic消息

      2020-04-21 17:03:32 INFO RemotingExecutorThread_1 - new topic registered, test_topic QueueData [brokerName=broker-a, readQueueNums=8, writeQueueNums=8, perm=6, topicSynFlag=0]

      ...
