const int N = 33 * 1024;
const int threadsPerBlock = 256;
const int blocksPerGrid =
            imin( 32, (N+threadsPerBlock-1) / threadsPerBlock );


__global__ void dot( float *a, float *b, float *c ) {
    __shared__ float cache[threadsPerBlock];
    int tid = threadIdx.x + blockIdx.x * blockDim.x;
    int cacheIndex = threadIdx.x;

    float   temp = 0;
    while (tid < N) {
        temp += a[tid] * b[tid];
        tid += blockDim.x * gridDim.x;
    }

    // set the cache values
    cache[cacheIndex] = temp;

    // synchronize threads in this block
    __syncthreads();

    // for reductions, threadsPerBlock must be a power of 2
    // because of the following code
    int i = blockDim.x/2;
    while (i != 0) {
        if (cacheIndex < i)
            cache[cacheIndex] += cache[cacheIndex + i];
        __syncthreads();
        i /= 2;
    }

    if (cacheIndex == 0)
        c[blockIdx.x] = cache[0];
}


int main( void ) {
    float   *a, *b, c, *partial_c;
    float   *dev_a, *dev_b, *dev_partial_c;

    // allocate memory on the cpu side
    a = (float*)malloc( N*sizeof(float) );
    b = (float*)malloc( N*sizeof(float) );
    partial_c = (float*)malloc( blocksPerGrid*sizeof(float) );

    // allocate the memory on the GPU
    HANDLE_ERROR( cudaMalloc( (void**)&dev_a,
                              N*sizeof(float) ) );
    HANDLE_ERROR( cudaMalloc( (void**)&dev_b,
                              N*sizeof(float) ) );
    HANDLE_ERROR( cudaMalloc( (void**)&dev_partial_c,
                              blocksPerGrid*sizeof(float) ) );

    // fill in the host memory with data
    for (int i=0; i<N; i++) {
        a[i] = i;
        b[i] = i*2;
    }

    // copy the arrays 'a' and 'b' to the GPU
    HANDLE_ERROR( cudaMemcpy( dev_a, a, N*sizeof(float),
                              cudaMemcpyHostToDevice ) );
    HANDLE_ERROR( cudaMemcpy( dev_b, b, N*sizeof(float),
                              cudaMemcpyHostToDevice ) );

    dot<<<blocksPerGrid,threadsPerBlock>>>( dev_a, dev_b,
                                            dev_partial_c );

    // copy the array 'c' back from the GPU to the CPU
    HANDLE_ERROR( cudaMemcpy( partial_c, dev_partial_c,
                              blocksPerGrid*sizeof(float),
                              cudaMemcpyDeviceToHost ) );

    // finish up on the CPU side
    c = 0;
    for (int i=0; i<blocksPerGrid; i++) {
        c += partial_c[i];
    }

    #define sum_squares(x)  (x*(x+1)*(2*x+1)/6)
    printf( "Does GPU value %.6g = %.6g?\n", c,
             2 * sum_squares( (float)(N - 1) ) );

    // free memory on the gpu side
    HANDLE_ERROR( cudaFree( dev_a ) );
    HANDLE_ERROR( cudaFree( dev_b ) );
    HANDLE_ERROR( cudaFree( dev_partial_c ) );

    // free memory on the cpu side
    free( a );
    free( b );
    free( partial_c );
}


struct Lock {
    int *mutex;
    Lock( void ) {
        HANDLE_ERROR( cudaMalloc( (void**)&mutex,sizeof(int) ) );
        HANDLE_ERROR( cudaMemset( mutex, 0, sizeof(int) ) );
    }
    ~Lock( void ) {
        cudaFree( mutex );
    }
    __device__ void lock( void ) {
        while( atomicCAS( mutex, 0, 1 ) != 0 );
    }
    __device__ void unlock( void ) {
        atomicExch( mutex, 0 );
    }
};

#define imin(a,b) (a<b?a:b)

const int N = 33 * 1024 * 1024;
const int threadsPerBlock = 256;
const int blocksPerGrid =
            imin( 32, (N+threadsPerBlock-1) / threadsPerBlock );

__global__ void dot( Lock lock, float *a,
                     float *b, float *c ) {
    __shared__ float cache[threadsPerBlock];
    int tid = threadIdx.x + blockIdx.x * blockDim.x;
    int cacheIndex = threadIdx.x;

    float   temp = 0;
    while (tid < N) {
        temp += a[tid] * b[tid];
        tid += blockDim.x * gridDim.x;
    }

    // set the cache values
    cache[cacheIndex] = temp;

    // synchronize threads in this block
    __syncthreads();

    // for reductions, threadsPerBlock must be a power of 2
    // because of the following code
    int i = blockDim.x/2;
    while (i != 0) {
        if (cacheIndex < i)
            cache[cacheIndex] += cache[cacheIndex + i];
        __syncthreads();
        i /= 2;
    }

    if (cacheIndex == 0) {
        // wait until we get the lock
        lock.lock();
       // we have the lock at this point, update and release
        *c += cache[0];
        lock.unlock();
    }
}


int main( void ) {
    float   *a, *b, c = 0;
    float   *dev_a, *dev_b, *dev_c;

    // allocate memory on the cpu side
    a = (float*)malloc( N*sizeof(float) );
    b = (float*)malloc( N*sizeof(float) );

    // allocate the memory on the GPU
    HANDLE_ERROR( cudaMalloc( (void**)&dev_a,
                              N*sizeof(float) ) );
    HANDLE_ERROR( cudaMalloc( (void**)&dev_b,
                              N*sizeof(float) ) );
    HANDLE_ERROR( cudaMalloc( (void**)&dev_c,
                              sizeof(float) ) );

    // fill in the host memory with data
    for (int i=0; i<N; i++) {
        a[i] = i;
        b[i] = i*2;
    }

    // copy the arrays 'a' and 'b' to the GPU
    HANDLE_ERROR( cudaMemcpy( dev_a, a, N*sizeof(float),
                              cudaMemcpyHostToDevice ) );
    HANDLE_ERROR( cudaMemcpy( dev_b, b, N*sizeof(float),
                              cudaMemcpyHostToDevice ) );
    HANDLE_ERROR( cudaMemcpy( dev_c, &c, sizeof(float),
                              cudaMemcpyHostToDevice ) );

    Lock    lock;
    dot<<<blocksPerGrid,threadsPerBlock>>>( lock, dev_a,
                                            dev_b, dev_c );

    // copy c back from the GPU to the CPU
    HANDLE_ERROR( cudaMemcpy( &c, dev_c,
                              sizeof(float),
                              cudaMemcpyDeviceToHost ) );

    #define sum_squares(x)  (x*(x+1)*(2*x+1)/6)
    printf( "Does GPU value %.6g = %.6g?\n", c,
             2 * sum_squares( (float)(N - 1) ) );

    // free memory on the gpu side
    HANDLE_ERROR( cudaFree( dev_a ) );
    HANDLE_ERROR( cudaFree( dev_b ) );
    HANDLE_ERROR( cudaFree( dev_c ) );

    // free memory on the cpu side
    free( a );
    free( b );
}

__global__ void histo_kernel( unsigned char *buffer,
                              long size,
                              unsigned int *histo ) {
    // calculate the starting index and the offset to the next
    // block that each thread will be processing
    int i = threadIdx.x + blockIdx.x * blockDim.x;
    int stride = blockDim.x * gridDim.x;
    while (i < size) {
        atomicAdd( &histo[buffer[i]], 1 );
        i += stride;
    }
}

int main( void ) {
    unsigned char *buffer =
                     (unsigned char*)big_random_block( SIZE );

    // capture the start time
    // starting the timer here so that we include the cost of
    // all of the operations on the GPU.
    cudaEvent_t     start, stop;
    HANDLE_ERROR( cudaEventCreate( &start ) );
    HANDLE_ERROR( cudaEventCreate( &stop ) );
    HANDLE_ERROR( cudaEventRecord( start, 0 ) );

    // allocate memory on the GPU for the file's data
    unsigned char *dev_buffer;
    unsigned int *dev_histo;
    HANDLE_ERROR( cudaMalloc( (void**)&dev_buffer, SIZE ) );
    HANDLE_ERROR( cudaMemcpy( dev_buffer, buffer, SIZE,
                              cudaMemcpyHostToDevice ) );

    HANDLE_ERROR( cudaMalloc( (void**)&dev_histo,
                              256 * sizeof( int ) ) );
    HANDLE_ERROR( cudaMemset( dev_histo, 0,
                              256 * sizeof( int ) ) );

    // kernel launch - 2x the number of mps gave best timing
    cudaDeviceProp  prop;
    HANDLE_ERROR( cudaGetDeviceProperties( &prop, 0 ) );
    int blocks = prop.multiProcessorCount;
    histo_kernel<<<blocks*2,256>>>( dev_buffer, SIZE, dev_histo );

    unsigned int    histo[256];
    HANDLE_ERROR( cudaMemcpy( histo, dev_histo,
                              256 * sizeof( int ),
                              cudaMemcpyDeviceToHost ) );

    // get stop time, and display the timing results
    HANDLE_ERROR( cudaEventRecord( stop, 0 ) );
    HANDLE_ERROR( cudaEventSynchronize( stop ) );
    float   elapsedTime;
    HANDLE_ERROR( cudaEventElapsedTime( &elapsedTime,
                                        start, stop ) );
    printf( "Time to generate:  %3.1f ms\n", elapsedTime );

    long histoCount = 0;
    for (int i=0; i<256; i++) {
        histoCount += histo[i];
    }
    printf( "Histogram Sum:  %ld\n", histoCount );

    // verify that we have the same counts via CPU
    for (int i=0; i<SIZE; i++)
        histo[buffer[i]]--;
    for (int i=0; i<256; i++) {
        if (histo[i] != 0)
            printf( "Failure at %d!  Off by %d\n", i, histo[i] );
    }

    HANDLE_ERROR( cudaEventDestroy( start ) );
    HANDLE_ERROR( cudaEventDestroy( stop ) );
    cudaFree( dev_histo );
    cudaFree( dev_buffer );
    free( buffer );
    return 0;
}

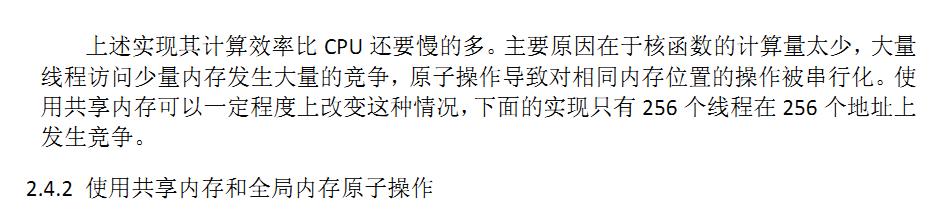

__global__ void histo_kernel( unsigned char *buffer,
                              long size,
                              unsigned int *histo ) {

    // clear out the accumulation buffer called temp
    // since we are launched with 256 threads, it is easy
    // to clear that memory with one write per thread
    __shared__  unsigned int temp[256];
    temp[threadIdx.x] = 0;
    __syncthreads();

    // calculate the starting index and the offset to the next
    // block that each thread will be processing
    int i = threadIdx.x + blockIdx.x * blockDim.x;
    int stride = blockDim.x * gridDim.x;
    while (i < size) {
        atomicAdd( &temp[buffer[i]], 1 );
        i += stride;
    }
    // sync the data from the above writes to shared memory
    // then add the shared memory values to the values from
    // the other thread blocks using global memory
    // atomic adds
    // same as before, since we have 256 threads, updating the
    // global histogram is just one write per thread!
    __syncthreads();
    atomicAdd( &(histo[threadIdx.x]), temp[threadIdx.x] );
}

int main( void ) {
    unsigned char *buffer =
                     (unsigned char*)big_random_block( SIZE );

    // capture the start time
    // starting the timer here so that we include the cost of
    // all of the operations on the GPU.  if the data were
    // already on the GPU and we just timed the kernel
    // the timing would drop from 74 ms to 15 ms.  Very fast.
    cudaEvent_t     start, stop;
    HANDLE_ERROR( cudaEventCreate( &start ) );
    HANDLE_ERROR( cudaEventCreate( &stop ) );
    HANDLE_ERROR( cudaEventRecord( start, 0 ) );

    // allocate memory on the GPU for the file's data
    unsigned char *dev_buffer;
    unsigned int *dev_histo;
    HANDLE_ERROR( cudaMalloc( (void**)&dev_buffer, SIZE ) );
    HANDLE_ERROR( cudaMemcpy( dev_buffer, buffer, SIZE,
                              cudaMemcpyHostToDevice ) );

    HANDLE_ERROR( cudaMalloc( (void**)&dev_histo,
                              256 * sizeof( int ) ) );
    HANDLE_ERROR( cudaMemset( dev_histo, 0,
                              256 * sizeof( int ) ) );

    // kernel launch - 2x the number of mps gave best timing
    cudaDeviceProp  prop;
    HANDLE_ERROR( cudaGetDeviceProperties( &prop, 0 ) );
    int blocks = prop.multiProcessorCount;
    histo_kernel<<<blocks*2,256>>>( dev_buffer,
                                    SIZE, dev_histo );

    unsigned int    histo[256];
    HANDLE_ERROR( cudaMemcpy( histo, dev_histo,
                              256 * sizeof( int ),
                              cudaMemcpyDeviceToHost ) );

    // get stop time, and display the timing results
    HANDLE_ERROR( cudaEventRecord( stop, 0 ) );
    HANDLE_ERROR( cudaEventSynchronize( stop ) );
    float   elapsedTime;
    HANDLE_ERROR( cudaEventElapsedTime( &elapsedTime,
                                        start, stop ) );
    printf( "Time to generate:  %3.1f ms\n", elapsedTime );

    long histoCount = 0;
    for (int i=0; i<256; i++) {
        histoCount += histo[i];
    }
    printf( "Histogram Sum:  %ld\n", histoCount );

    // verify that we have the same counts via CPU
    for (int i=0; i<SIZE; i++)
        histo[buffer[i]]--;
    for (int i=0; i<256; i++) {
        if (histo[i] != 0)
            printf( "Failure at %d!\n", i );
    }

    HANDLE_ERROR( cudaEventDestroy( start ) );
    HANDLE_ERROR( cudaEventDestroy( stop ) );
    cudaFree( dev_histo );
    cudaFree( dev_buffer );
    free( buffer );
    return 0;
}


注:本文是作者对GPU高性能编程CUDA实战的学习总结。此书的代码可以在下面的链接下载,无需积分哦!

http://download.csdn.net/detail/celerychen2009/6360573


本文转载自:http://www.cnblogs.com/celerychen/p/3588191.html

共有 人打赏支持
abcijkxyz
粉丝 64
博文 6196
码字总数 1876
作品 0
深圳
项目经理
使用C#来面向GPU编程

摘要:一直以来,我们都在使用NVIDIA的CUDA平台编写通用程序来发挥NVIDIA GPU的计算性能优势。尽管CUDA支持不同的编程语言,但是编写高性能的代码通常需要使用C或者C++。许多开发者为了编写面...

infoQ
01/02
0
0
NVIDIA CUDA 正式支持 Python 语言

NVIDIA今天宣布,CUDA并行编程架构已经正式提供对开源编程语言Python的支持。这是C、C++、Fortran(PGI)之后,CUDA支持的第四种语言。 Python,吉多·范罗苏姆(Guido van Ross) 1989年创立,一...

一曲忠臣的战歌
2013/03/19
6.6K
26
图形处理器开发环境--CUDA

CUDA™ 工具包是一种针对支持CUDA功能的GPU(图形处理器)的C语言开发环境。CUDA开发环境包括: · nvcc C语言编译器 · 适用于GPU(图形处理器)的CUDA FFT和BLAS库 · 分析器 · 适用于GPU...

匿名
2008/11/21
14.1K
0
简化并行开发 NVIDIA宣布CUDA 4.0

NVIDIA公司今天宣布了新版GPU通用计算开发包CUDA 4.0,主要改进方向是简化并行编程,让更多开发人员能够将应用程序移植到GPU平台。 CUDA 4.0的三大主要特性包括: - GPUDirect 2.0技术。GPU...

老枪
2011/03/01
1K
2
CUDA 5.5 RC 发布,并行计算的平台和架构

CUDA 5.5 RC 版本发布了,根据发行说明得知,这是下一个并行计算的平台和架构,包含多处理器 MPI 调试和剖析,逐步引导式性能分析以及静态的 CUDA 运行时库。 CUDA™ 工具包是一种针对支持C...

oschina
2013/06/12
1K
1

没有更多内容

加载失败,请刷新页面

加载更多

shell特殊符号、cut、sort、uniq、wc、tee、tr、split命令

10月15日任务 8.10 shell特殊符号cut命令 8.11 sort_wc_uniq命令 8.12 tee_tr_split命令 8.13 shell特殊符号下 cut 命令 cut作用:截取字符串 用法如下:cat /etc/passwd |head -2 |cut -d ...

hhpuppy
20分钟前
0
0
Springboot实现filter拦截token验证和跨域

背景 web验证授权合法的一般分为下面几种 1使用session作为验证合法用户访问的验证方式 使用自己实现的token 使用OCA标准 在使用API接口授权验证时,token是自定义的方式实现起来不需要引入其...

funnymin
55分钟前
1
0
linux使用ntfs-3g操作ntfs格式硬盘

Linux内核目前只支持对微软NTFS文件系统的读取。 NTFS-3G 是微软 NTFS 文件系统的一个开源实现,同时支持读和写。NTFS-3G 开发者使用 FUSE 文件系统来辅助开发,同时对可移植性有益。 安装 ...

linuxprobe16
今天
1
0
kubeadm部署kubernetes集群

一、环境要求 这里使用RHEL7.5 master、etcd:192.168.10.101,主机名:master node1:192.168.10.103,主机名:node1 node2:192.168.10.104,主机名:node2 所有机子能基于主机名通信,编辑...

人在艹木中
今天
14
0
Shell特殊符号总结以及cut,sort,wc,uniq,tee,tr,split命令

特殊符号总结一 * 任意个任意字符 ? 任意一个字符 # 注释字符 \ 脱义字符 | 管道符 # #号后的备注被忽略[root@centos01 ~]# ls a.txt # 备注 a.txt[root@centos01 ~]# a=1[root@centos01...

野雪球
今天
3
0

没有更多内容

加载失败,请刷新页面

加载更多

返回顶部
顶部
