SpringBoot + Vue 智慧停车之消息队列 MQTT 使用

简介

MQTT:它构建在TCP/IP之上，用于受限制的设备和不可靠的网络，应用于许多(开放源码)代理实现和许多客户机库。它包含用于不良网络/连接的IoT特定特性，并被广泛使用(主要用于物联网，但也通过MQTT通过WebSockets用于web和移动应用程序)。

MQTT 安装

这里使用 Docker 一键安装：

docker run -d --name emqx -p 1883:1883 -p 8081:8081 -p 8083:8083 -p 8084:8084 -p 8883:8883 -p 18083:18083 emqx/emqx:4.3.5

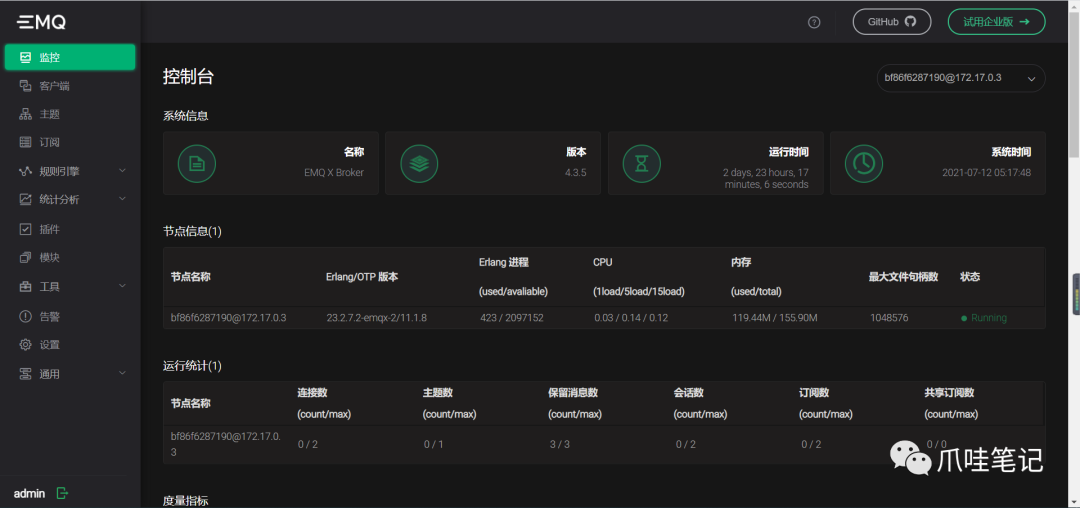

默认账号 admin 密码 public

null

整合

配置 pom.xml 引入：

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-integration</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.integration</groupId>
    <artifactId>spring-integration-stream</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.integration</groupId>
    <artifactId>spring-integration-mqtt</artifactId>
</dependency>

配置 application.properties 引入：

spring.mqtt.username = admin
spring.mqtt.password = public
spring.mqtt.url = tcp://127.0.0.1:1883
spring.mqtt.client.id = HDC-DNC
spring.mqtt.default.topic = topic
spring.mqtt.default.completionTimeout = 3000

发送配置：

@Slf4j
@Configuration
@IntegrationComponentScan
public class MqttSenderConfig {

    @Value("${spring.mqtt.username}")
    private String username;
    @Value("${spring.mqtt.password}")
    private String password;
    @Value("${spring.mqtt.url}")
    private String hostUrl;
    @Value("${spring.mqtt.client.id}")
    private String clientId;
    @Value("${spring.mqtt.default.topic}")
    private String defaultTopic;
    @Value("${spring.mqtt.default.completionTimeout}")
    private int completionTimeout;

    @Bean
    public MqttConnectOptions getMqttConnectOptions() {
        MqttConnectOptions mqttConnectOptions = new MqttConnectOptions();
        mqttConnectOptions.setCleanSession(true);
        mqttConnectOptions.setConnectionTimeout(10);
        mqttConnectOptions.setKeepAliveInterval(90);
        mqttConnectOptions.setAutomaticReconnect(true);
        mqttConnectOptions.setUserName(username);
        mqttConnectOptions.setPassword(password.toCharArray());
        mqttConnectOptions.setServerURIs(new String[]{hostUrl});
        mqttConnectOptions.setKeepAliveInterval(2);
        return mqttConnectOptions;
    }

    @Bean
    public MqttPahoClientFactory mqttClientFactory() {
        DefaultMqttPahoClientFactory factory = new DefaultMqttPahoClientFactory();
        factory.setConnectionOptions(getMqttConnectOptions());
        return factory;
    }

    @Bean
    @ServiceActivator(inputChannel = "mqttOutboundChannel")
    public MessageHandler mqttOutbound() {
        MqttPahoMessageHandler messageHandler = new MqttPahoMessageHandler(clientId, mqttClientFactory());
        messageHandler.setAsync(true);
        messageHandler.setDefaultTopic(defaultTopic);
        return messageHandler;
    }

    @Bean
    public MessageChannel mqttOutboundChannel() {
        return new DirectChannel();
    }

}

接口服务：

@MessagingGateway(defaultRequestChannel = "mqttOutboundChannel")
public interface MqttGateway {

    void sendToMqtt(String data, @Header(MqttHeaders.TOPIC) String topic);

}
